Art.Nr. 1

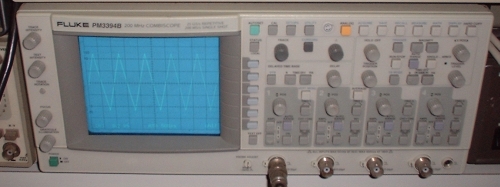

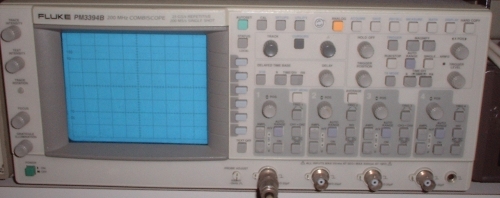

Type PM3394B
Brand - Merk Fluke
Article - Artikel Oscilloscope Analog + Digital 200 MHz 4 channel
Category Oscilloscope
Operating Manual X Service Manual X GPIB X
--------------------------------------------------------------------------------
True 4 channel oscilloscope Analog and Digital
Vertical
* 2 mV .. 5 V per division
* AC, DC, GND
* 1 M Ohm, 50 Ohm
* Bandwidth > 200 MHz
* Risetime < 1.75 nsec
Horizontal
* 20 nsec .. 500 msec per division
* 10x magnifier
* dual delayed timebase with trace separtion
* Trigger
Trigger
* Per channel +-
* Edge, TV
* Channel, Comp, External
* AC, DC, LF reject, HF reject
TV trigger
* TV, HDTV
* Positive, Negative
* Field 1, Field2, Lines
Autoset
Cursor measurements
* Vertical
* Horizontal
* Delta T
* 1 / Delta T = Frequency
* Phase
* Delta V
* V1 + V2
Digital mode
* 200 MHz Real Time and Radom Sample Rate
* 8 bit Resolution
* 16 bit Memory
* Record Length 32 K
* 2..4096 Avarage to 16 bits
* 5 nsec Peak Detection
* 50 msec .. 200 sec per division Roll Mode Timebase
* 2..32 Horizontal Magnification
* Delay : Time-Delay, Pre-Trigger, Event-Delay
Calculated Measurements
* Volt : DC, RMS, Minimum, Maximum, Peak to Peak, Low Level, Hogh Level,
Overshoot, Preshoot
* Time : Frequency, Period, Pulsewidth, Rise Time, Fall Time, Duty Cycle
* Delay between edges
* Integrate, Differentiate, FFT spectrum
AUTOCALIBRATE
There are no calibration points under the cover.
The full calibration is done by a front knob "autocalibrate" after warmup.
RS-232 interface
GPIB interface
Options included
* IEEE/GPIB interface
* Extended Memory
* MATH+ processor
Manuals included
* User Manual (of the A version)
* SCPI Programming Manual
* Reference Manual
* Guide to Mathematics Functions and Pass/Fail Testing (of the A version)
Size : 139 mm H x 341 mm W x 481 mm L
Weight : 9.5 kg
