Art.Nr.                     58
Type                   1689M
Brand - Merk           General Radio
Article - Artikel      Digibridge
Category               Component Analyzer


Operating Manual       X         Service Manual X           GPIB X










--------------------------------------------------------------------------------
Measure         C/D L/Q R/Q C/R
Frequency       12 Hz .. 100 kHz, 500 frequencies
Display         5 digit RLC, 4 digit DQR
Accuracy        0.02 %
Range           R       10 uOhm - 100 M Ohm
                L       10 uH   - 100 kH
                C       10 fF   - 100 mF
                D       100 u   - 10 k
                Q       100 u   - 10 k
Internal test voltage   5 mV - 1.275 V
Handler interface

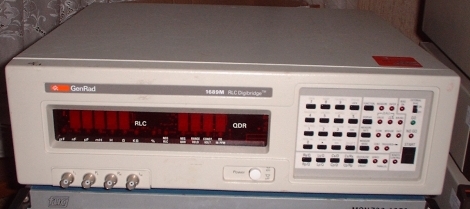

Front
