Art.Nr.                      2
Type                   PM5190
Brand - Merk           Philips
Article - Artikel      Function generator / Synthesizer 2 MHz
Price - Prijs           175,00 Euro

Condition - Conditie   Tested
Size - Grootte   H - H 140  W - B 310  D - D 365   mm
Weight - Gewicht        6,0   kg







Title Philips PM5190 Function generator / Synthesizer 2 MHz [2]
--------------------------------------------------------------------------------
Frequency range : 1 mHz .. 2.147 MHz
6 digit frequency resolution with a minimum of 1 mHz.
Sine, Triangle, Block.
20 V pp output, Impedance 50 Ohm, separate TTL output.
GPIB interface
Latest software with ENTER function.
Price in 1995 : 8300 NLG = 3766 EUR
AM Modulation
- Frequency : DC - 20 kHz
- Dept      : 0 - 90 %

The unit is the older model with the RubOut key.
The firmware is of the latest model where the RubOut key is replaced with an
Enter key and works accordingly.

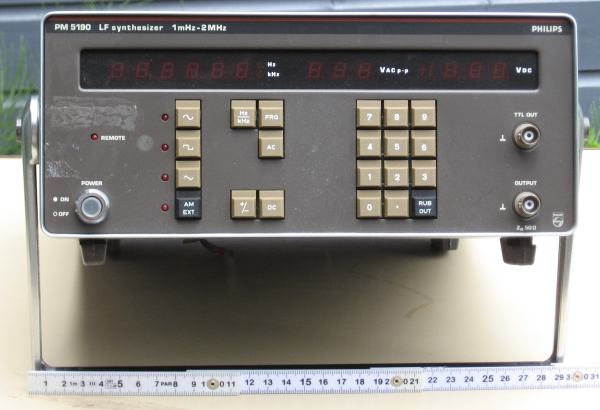

Front


Back
