Art.Nr.                    198
Type                   PM3094
Brand - Merk           Philips
Article - Artikel      Oscilloscope 200 MHz, 4 channel
Price - Prijs           350,00 Euro
Stock - Voorraad           1
Condition - Conditie   Tested


Documentation          Manuals as pdf file






Title Philips PM3094 Oscilloscope 200 MHz, 4 channel [198]
--------------------------------------------------------------------------------
True 4 channel oscilloscope

Vertical
* 2 mV .. 5 V per division
* AC, DC, GND
* 1 M Ohm, 50 Ohm
* Bandwidth > 200 MHz
* Risetime < 1.75 nsec

Horizontal
* 20 nsec .. 500 msec per division
* 10x magnifier
* dual delayed timebase with trace separtion
* Trigger

Trigger
* Per channel +-
* Edge, TV
* Channel, Comp, External
* AC, DC, LF reject, HF reject

TV trigger
* TV, HDTV
* Positive, Negative
* Field 1, Field2, Lines

Autoset

Cursor measurements
* Vertical
* Horizontal
* Delta T
* 1 / Delta T = Frequency
* Phase
* Delta V
* V1 + V2

Memory
* 10 setups
* Non Volatile
* External 2AA battery on the back

External output option (NOT included)
* Y out
* Main Time Base Gate out
* Delayed Time Base Gate out
* External Trigger input

GPIB interface option (NOT included)

AUTOCALIBRATE
There are no calibration points under the cover.
The full calibration is done by a front knob.

Manuals included
* Operating Guide
* SCPI Programming Manual
* Reference Manual

Size 139 mm H x 341 mm W x 481 mm L
Weight 8.5 kg

No handle included

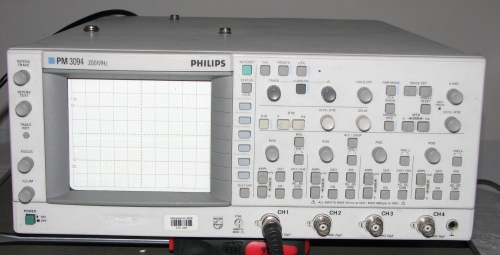

Front
