Art.Nr.                    243
Type                   T3W
Brand - Merk           Fluke
Article - Artikel      Tester used
Price - Prijs            25,00 Euro

Condition - Conditie   Tested








Title Fluke T3W Tester used [243]
--------------------------------------------------------------------------------
Fluke T3W tester
Cat 3-1000V en Cat 4-600V
Spanning, Continuiteit
Prima werkend

The new Fluke T3 is a voltage and continuity tester that is designed to work
 long and hard. There are no settings, just probe the circuit and the T3 will
 show you whether you are looking at AC volts, DC volts, or an open circuit. You
 don't even have to turn it on or off! With seven different voltage indicators,
 it can clearly differentiate between key voltage levels.

* Compact and rugged, easily fits in a tool pouch or overall pocket
* LEDs clearly indicate 7 AC and 7 DC nominal voltage levels
* Indicates dc voltages as low as 6 volts
* DC polarity indicator
* Automatically selects continuity beeper or voltage measurement mode
* Can stay connected much longer than solenoid type testers
* Rugged enough to withstand a 3 meter drop
* Protected to 1000 V for use in CAT III environments, and to 600 V for use in
 CAT IV environments
* The Auto-ON light at the top will let you know that it's working and will
 automatically turn off after approximately eight minutes of inactivity
* Heavy-duty test leads for long life


Fluke T3 Voltage and Continuity Tester
Specifications
Continuity beeper
Threshold:On at <20,000
Volts indicator LED On at between 70% and 100% of marked voltage
Input impedance 750 k
nominal AC frequency response 45 Hz to 66 Hz
Environmental Specifications
Operating Temperature -10 C to 50 C
Storage Temperature 30 C to 60 C
Humidity (Without Condensation) 0% to 95% - 0 C to 30 C 0% to 75% - 30 C to 40
 0% to 45% - 40 C to 50 C
Dust/water resistance IP52 per IEC 529, no vacuum applied
Operating Altitude 3,000
mSafety Specifications
Electrical Safety IEC 1010-1 to 1000 V IEC 664-1 to 600 V
Protection Class Pollution degree II
Overvoltage category IEC 1010-1 CAT III IEC 664-1 CAT IV
Maximum voltage1000 V ac/dc between any terminal and earth ground (protection
 only)
Mechanical & General Specifications
Size 33 x 46 x 160 mm
Weight 200 g
Batteries 2 AA
Battery Life 350 hours
Calibration cycle None

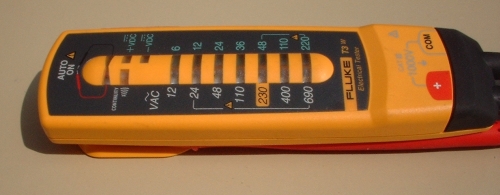

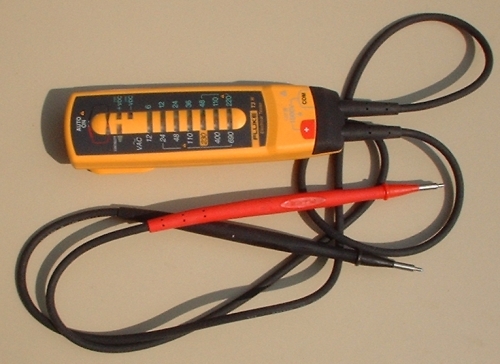

Front



Detail


Back
