Change date = 20100816 22:18:36

Art.Nr.                    250
Type                   2000
Brand - Merk           Keithley
Article - Artikel      Multimeter 6.5 digits
Price - Prijs           400,00 Euro

Condition - Conditie   Tested
Size - Grootte   H - H  89  W - B 213  D - D 370   mm
Weight - Gewicht        2,9   kg
Documentation          Manuals as pdf file





Title Keithley 2000 Multimeter 6.5 digits [250]
--------------------------------------------------------------------------------
* 30 ppm DC stability for 1 year
# 13 built-in measurement functions
# 2000 readings/second at  4 1/2 digits
# Optional scanner cards for multipoint measurements
# IEEE-488 and RS-232 interfaces
# Fluke 8840/42 command set

The Model 2000 61/2-digit Multimeter is part of Keithley's family of high
performance DMMs.
Based on the same high speed, low noise A/D converter technology as the Model
2001 and 2002, the 2000 is a fast, accurate, and highly stable instrument
that's as easy to operate as it is to afford. It combines broad measurement
ranges with superior accuracy specifications

- DC voltage
from 100nV to 1kV (with 0.002% 90-day basic accuracy) and DC resistance from
100µW to 100MW (with 0.008% 90-day basic accuracy).
Optional switch cards enable multiplexing up to 20 different input signals
for multipoint measurement applications.
High Throughput
The 2000 offers exceptional measurement speed at any resolution. At 61/2
digits, it delivers 50 triggered rdgs/s over the IEEE-488 bus. At 41/2 digits,
it can read up to 2000 rdgs/s into its internal 1024 reading buffer, making
it an excellent choice for applications where throughput is critical.
For benchtop or stand-alone applications, the 2000 has a front panel design
that's simple to understand and easy to use. The 2000 has 13 built-in
measurement functions, including DCV, ACV, DCI, ACI, 2WW, 4WW, temperature,
frequency, period, dB, dBm, continuity measurement, and diode testing. A
built-in RS-232 interface connects to a notebook or full-sized PC's
serial port to take, store, process, and display measurements automatically.
TestPointT Instrument Driver Libraries and runtime programs are included with
the 2000 to simplify IEEE-488.2 and RS-232 program generation.

Counts  1.200.000

* DC Voltage
Ranges                  100 mV .. 1000 V
Minimum resoltution     100 nV
Accuracy 24 hour        15 ppm
Accuracy 1 year         30 ppm

* AC Voltage True RMS
Ranges                  100 mV .. 1000 V
Minimum resoltution     100 nV
Accuracy 1 year         600 ppm
Frequency range         3 Hz .. 300 kHz

* Resistance
Ranges                  100 .. 100 M
Minimum resoltution     100 u
Accuracy 24 hour        20 ppm
Accuracy 1 year         100 ppm

* DC Current
Ranges                  10 mA .. 3 A
Minimum resoltution     10 nA
Accuracy 24 hour        60 ppm
Accuracy 1 year         500 ppm

*AC Current
Ranges                  1 A .. 3 A
Minimum resoltution     1u A
Accuracy 1 year         1000 ppm
Frequency range         3 Hz .. 5 kHz

*Temperature
Thermocouple    J
Range           -200 .. +760
Resoltution     1m
Accuracy        0.5

Thermocouple    K
Range           -200 .. +1372
Resoltution     1m
Accuracy        0.5

Thermocouple    T
Range           -200 .. +400
Resoltution     1m
Accuracy        0.5


Maximum readings per second
Digits  Readings
6       5 .. 50
5       270 .. 1000
4       2000

Display updates per second      50
Linearity       2 ppm of reading + 1 ppm of range
Interface       GPIB, RS-232

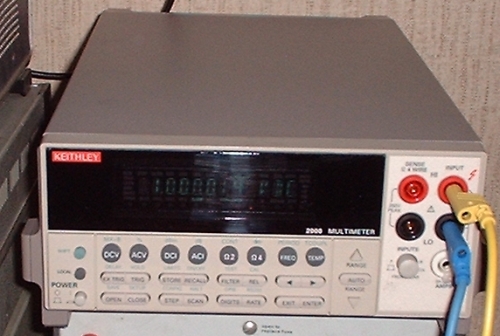

Front

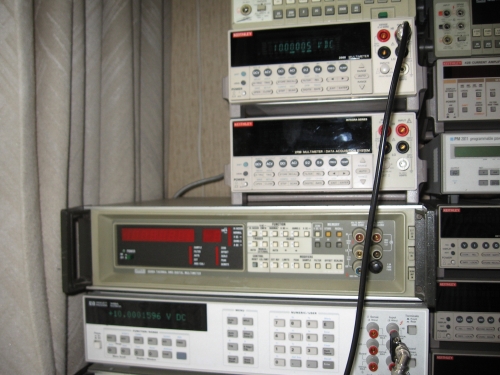

On calibrator
