Art.Nr.                    308
Type                   PM3382A/481
Brand - Merk           Fluke
Article - Artikel      Oscilloscope 100 MHz, 4 channel digital + analog
Price - Prijs           550,00 Euro
Stock - Voorraad           1
Condition - Conditie   Tested









Title Fluke PM3382A/481 Oscilloscope 100 MHz, 4 channel digi [308]
--------------------------------------------------------------------------------
4 channel oscilloscope Analog and Digital

Vertical
* 2 mV .. 5 V per division
* AC, DC, GND
* 1 M Ohm, 50 Ohm
* Bandwidth > 100 MHz
* Risetime < 3.5 nsec

Horizontal
* 20 nsec .. 500 msec per division
* 10x magnifier
* dual delayed timebase with trace separtion
* Trigger

Trigger
* Per channel +-
* Edge, TV
* Channel, Comp, External
* AC, DC, LF reject, HF reject

TV trigger
* TV, HDTV
* Positive, Negative
* Field 1, Field2, Lines

Autoset

Cursor measurements
* Vertical
* Horizontal
* Delta T
* 1 / Delta T = Frequency
* Phase
* Delta V
* V1 + V2

Digital mode
* 200 MHz Real Time and Radom Sample Rate
* 8 bit Resolution
* 16 bit Memory
* Record Length 32 K (EM)
* 2..4096 Avarage to 16 bits
* 5 nsec Peak Detection
* 50 msec .. 200 sec per division Roll Mode Timebase
* 2..32 Horizontal Magnification
* Delay : Time-Delay, Pre-Trigger, Event-Delay

Calculated Measurements
* Volt : DC, RMS, Minimum, Maximum, Peak to Peak, Low Level, Hogh Level,
Overshoot, Preshoot
* Time : Frequency, Period, Pulsewidth, Rise Time, Fall Time, Duty Cycle
* Delay between edges
* Integrate, Differentiate, FFT spectrum (MATH+)

AUTOCALIBRATE
There are no calibration points under the cover.
The full calibration is done by a front knob "autocalibrate" after warmup.

RS-232 interface
GPIB interface

Options included
* IEEE/GPIB interface
* Extended Memory
* MATH+ processor

Size : 139 mm H x 341 mm W x 481 mm L
Weight : 9.5 kg

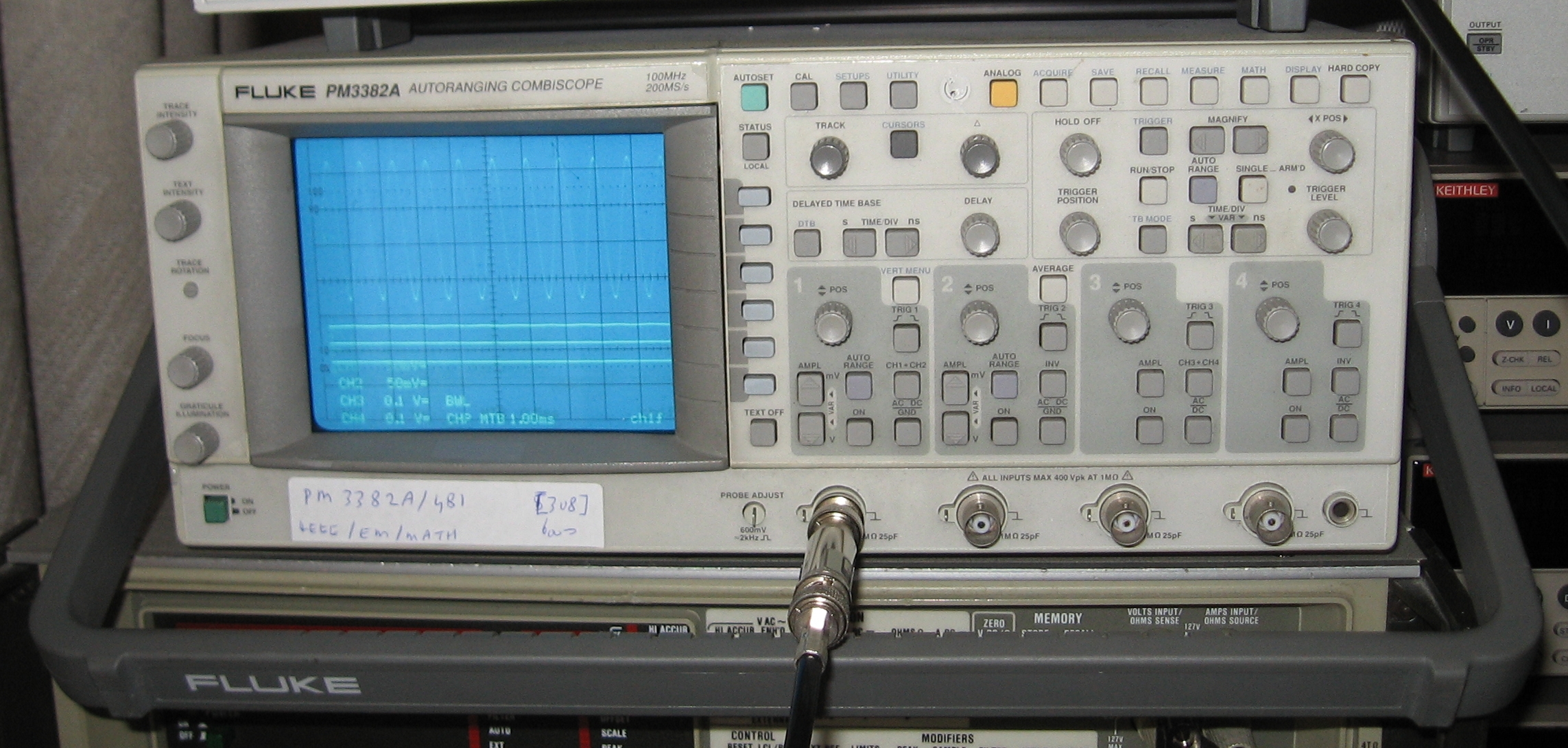

Front


Back
