Art.Nr.                    500
Type                   E3631A
Brand - Merk           Hewlett Packard
Article - Artikel      Power supply 0-6V,5A/0-+-25V,1A
Price - Prijs           550,00 Euro

Condition - Conditie   Tested








Title HP E3631A Power supply 0-6V,5A/0-+-25V,1A [500]
--------------------------------------------------------------------------------
Triple power supply
0-6V 0-5A
0-+-25V 0-1A
Onafhankelijk en tracking spanning instelling
GPIB programmeerbaar
Zeer lage ruis door schakelvoeding met lineaire naregeling
huidig productie model

Output Ratings

    * Output 1: 0 to 6 V, 0 to 5 A
    * Output 2: 0 to +25 V, 0 to 1 A
    * Output 3: 0 to -25 V, 0 to 1 A

Programming Accuracy at 25°C +5°C

    * Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
    * + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA

Ripple & Noise (20 Hz to 20 MHz)

    * Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV
 rms/2 mV p-p
    * Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
    * Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms

Readback Accuracy at 25°C +5°C

    * Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
    * Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA

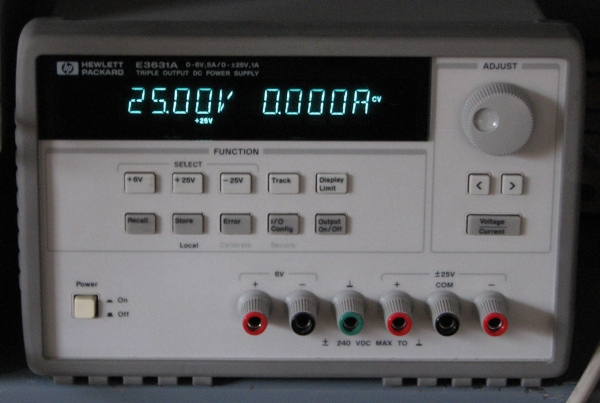

Front

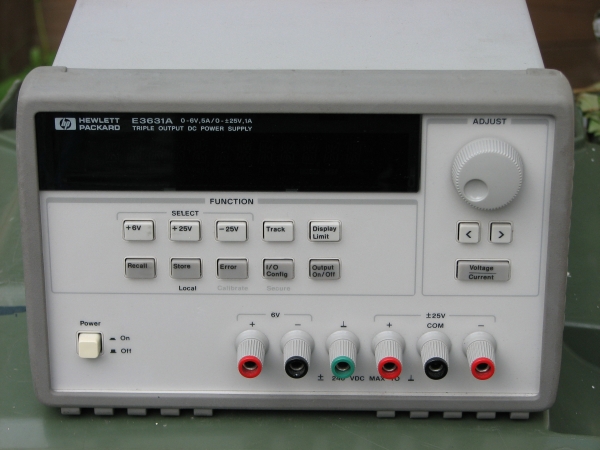

Front


Back
