Manuals, Schematics, and Service Bulletins


Picture of a remote control for an Ampex MM-1200.
Ampex MM-1200 Remote Control

Reproductions of Ampex manuals and service bulletins. See separate Ampex Literature page for reproductions of brochures, catalogs, and other material published by Ampex not about specific machine models.

Schematics are arranged by general product type (e.g., tape deck, mixer) and then alphanumerically by model number.

Schematics of Ampex Tape Decks (listed by model number)

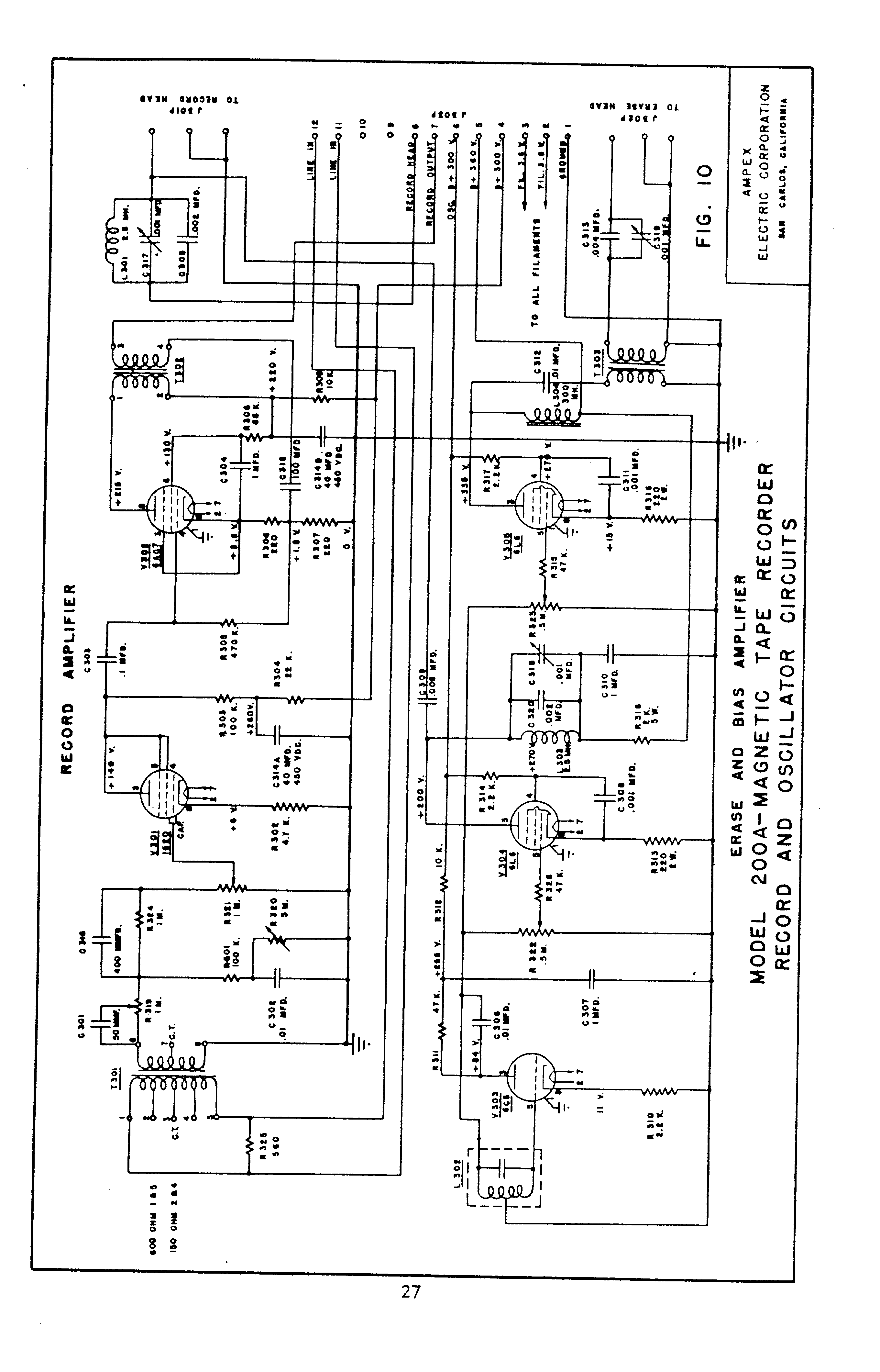

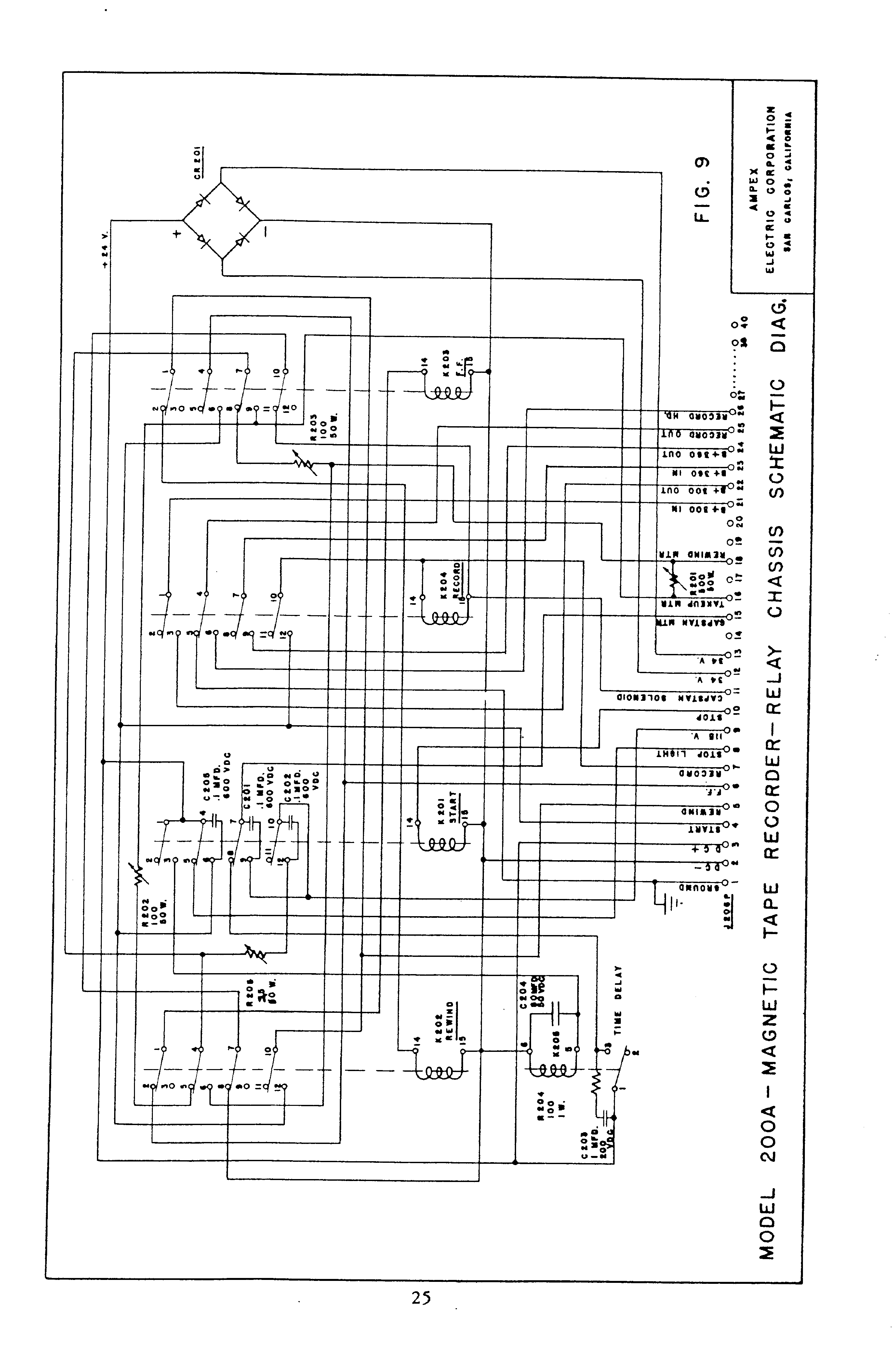

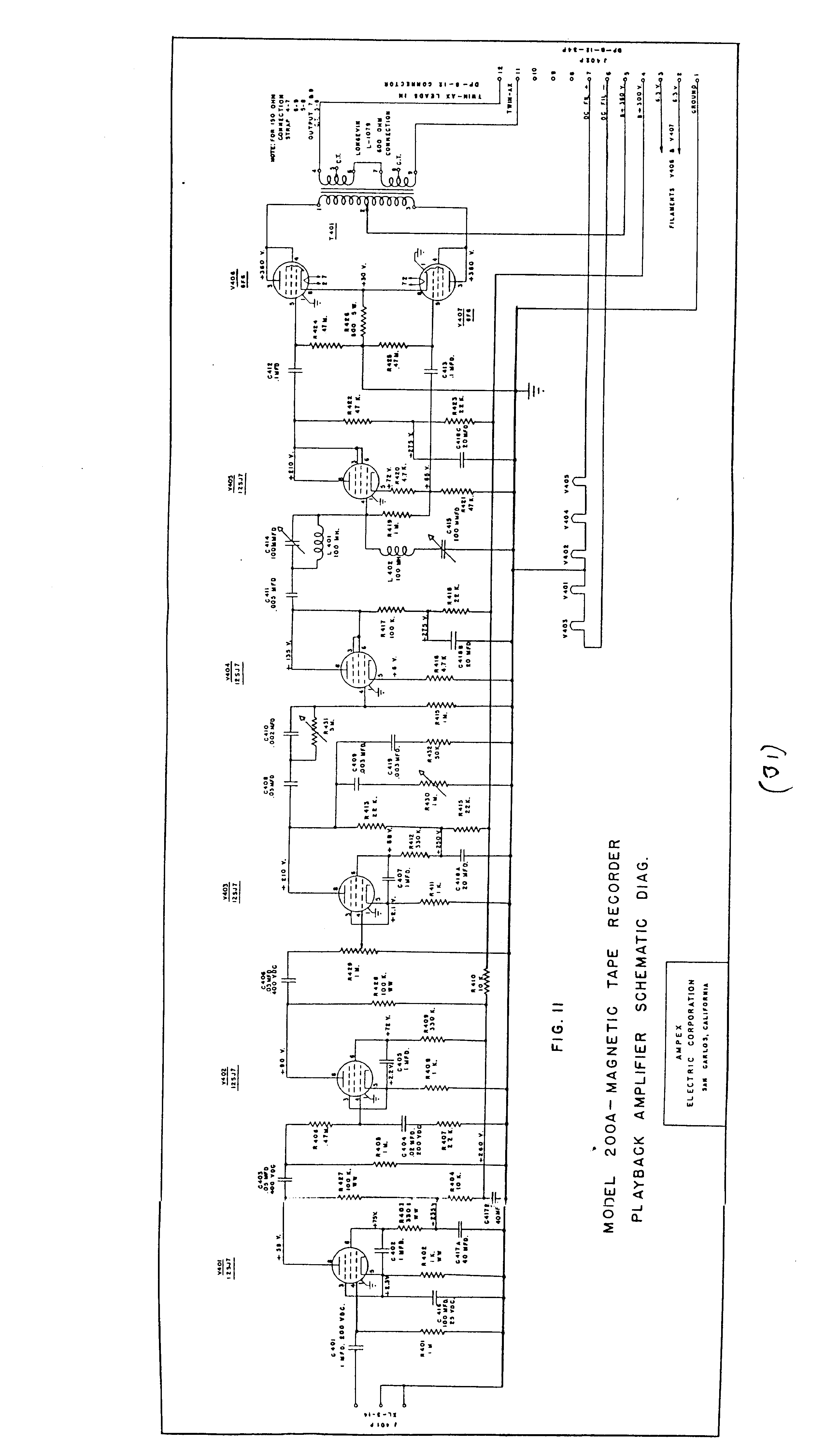

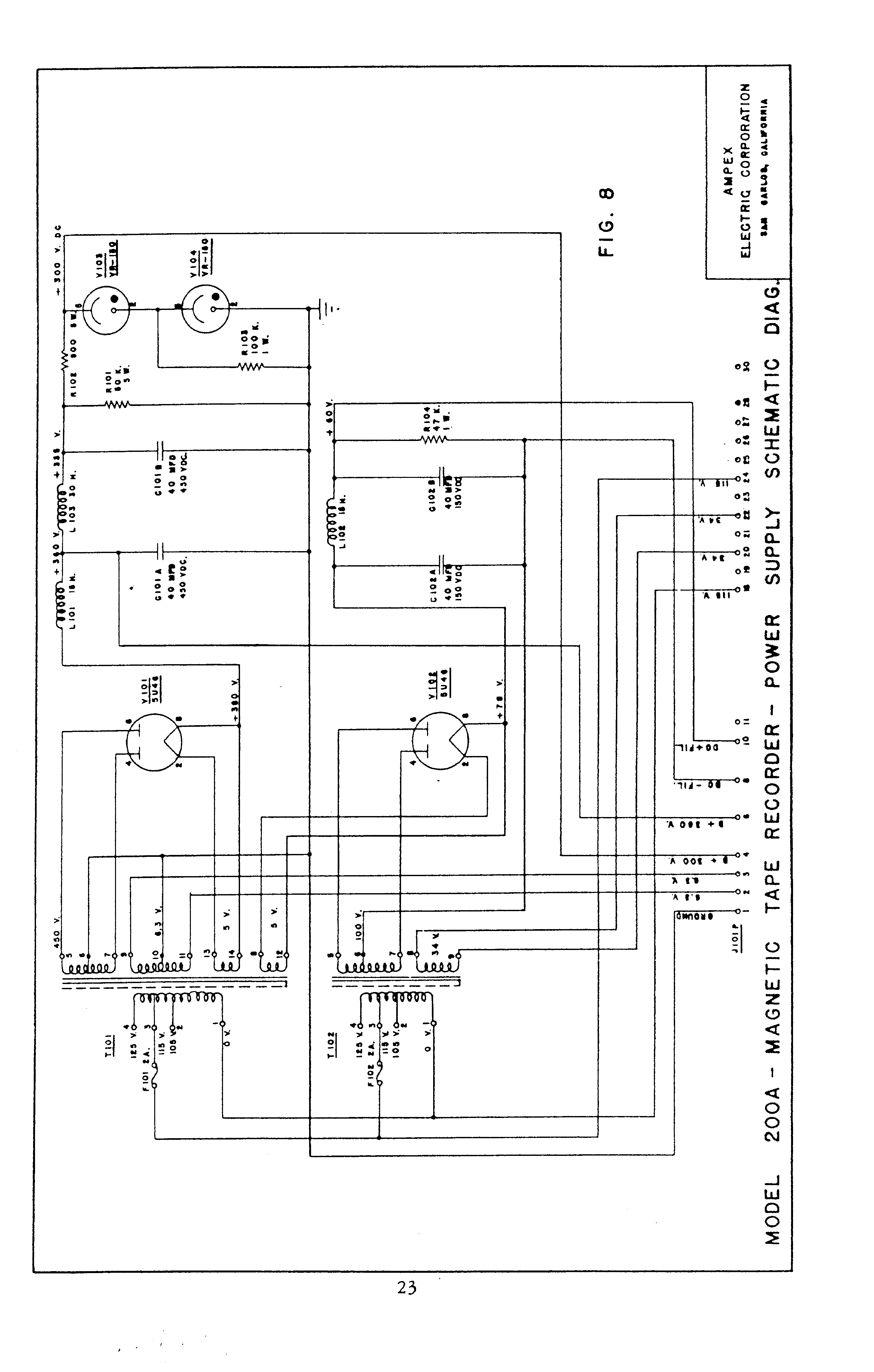

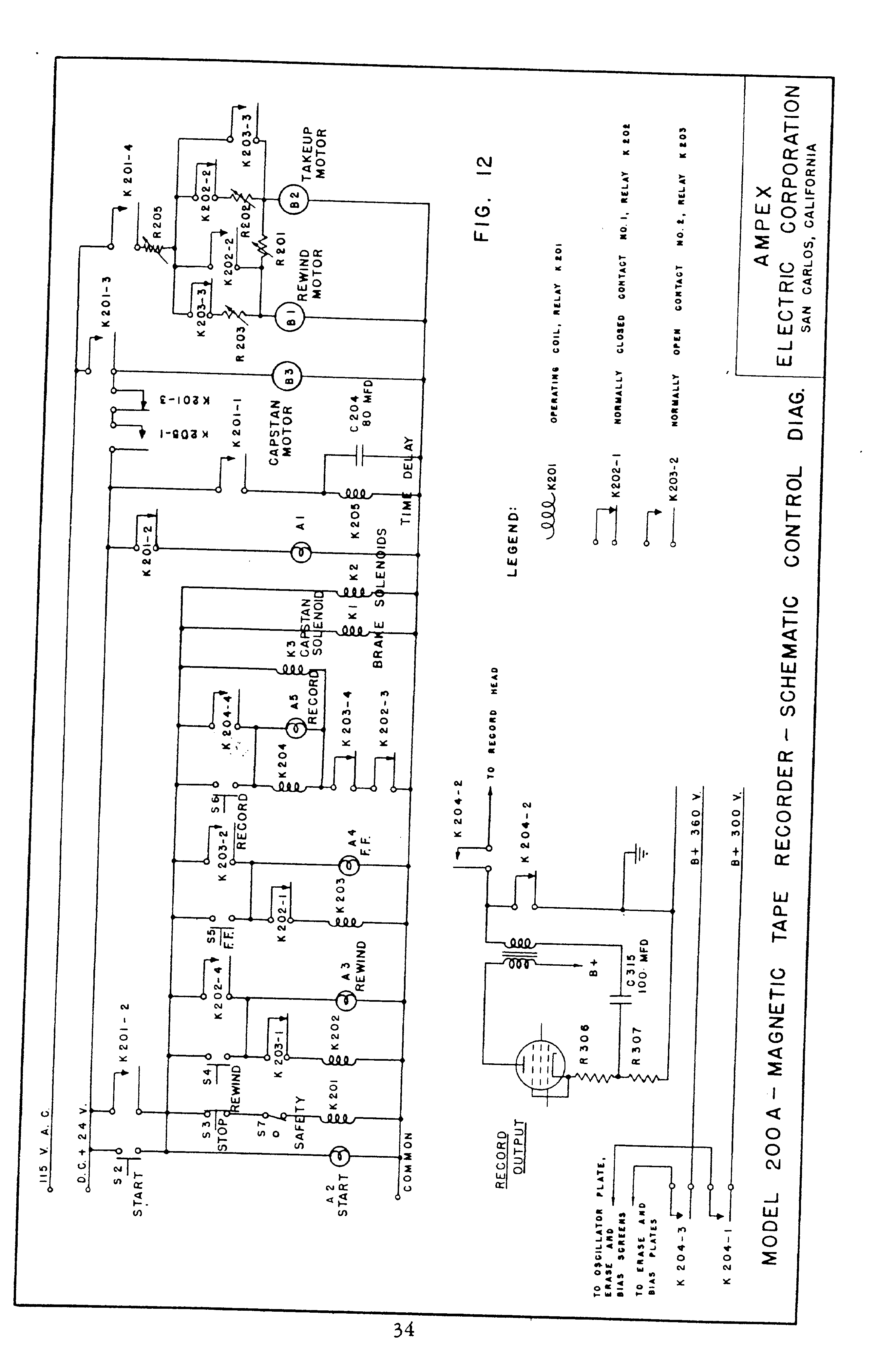

200A


The following are documents created by Jack Mullin. They appear here through the kind permission of Eve Mullin Collier, his daughter. These documents are copyright © 2001 by Eve Mullin Collier. They may not be reproduced elsewhere without the written permission of Eve Mullin Collier. My thanks to her for making them available and granting permission to reproduce them here.

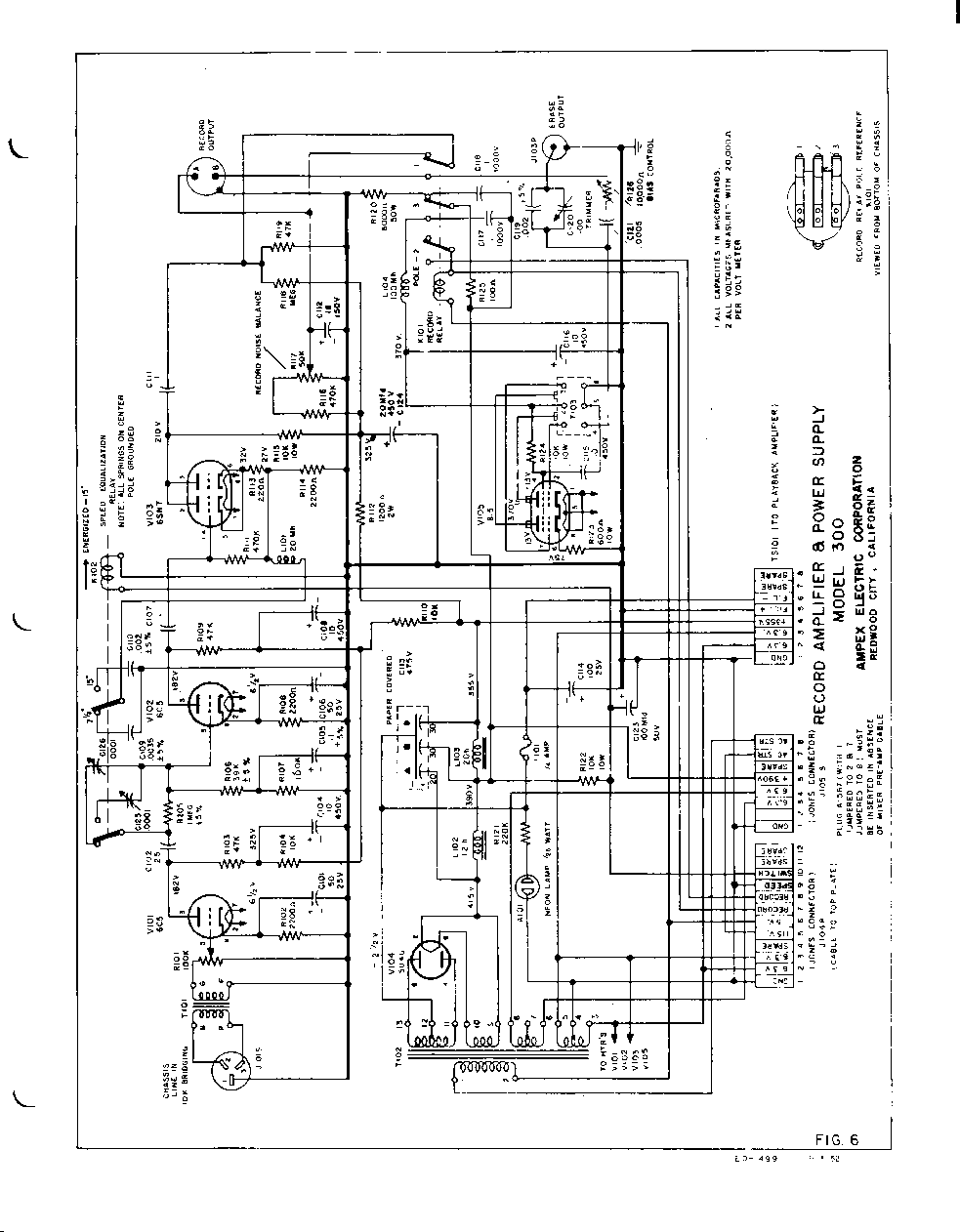

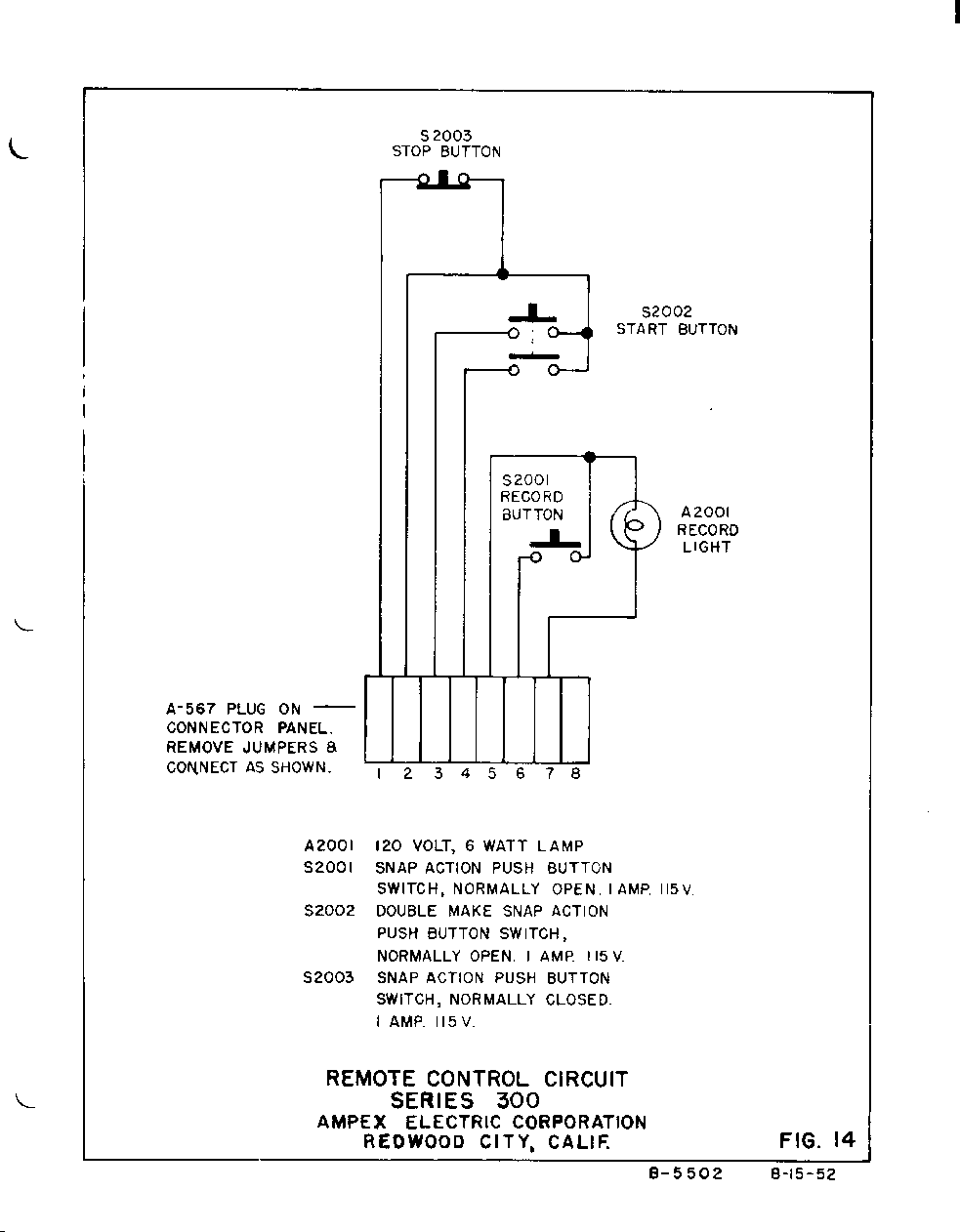

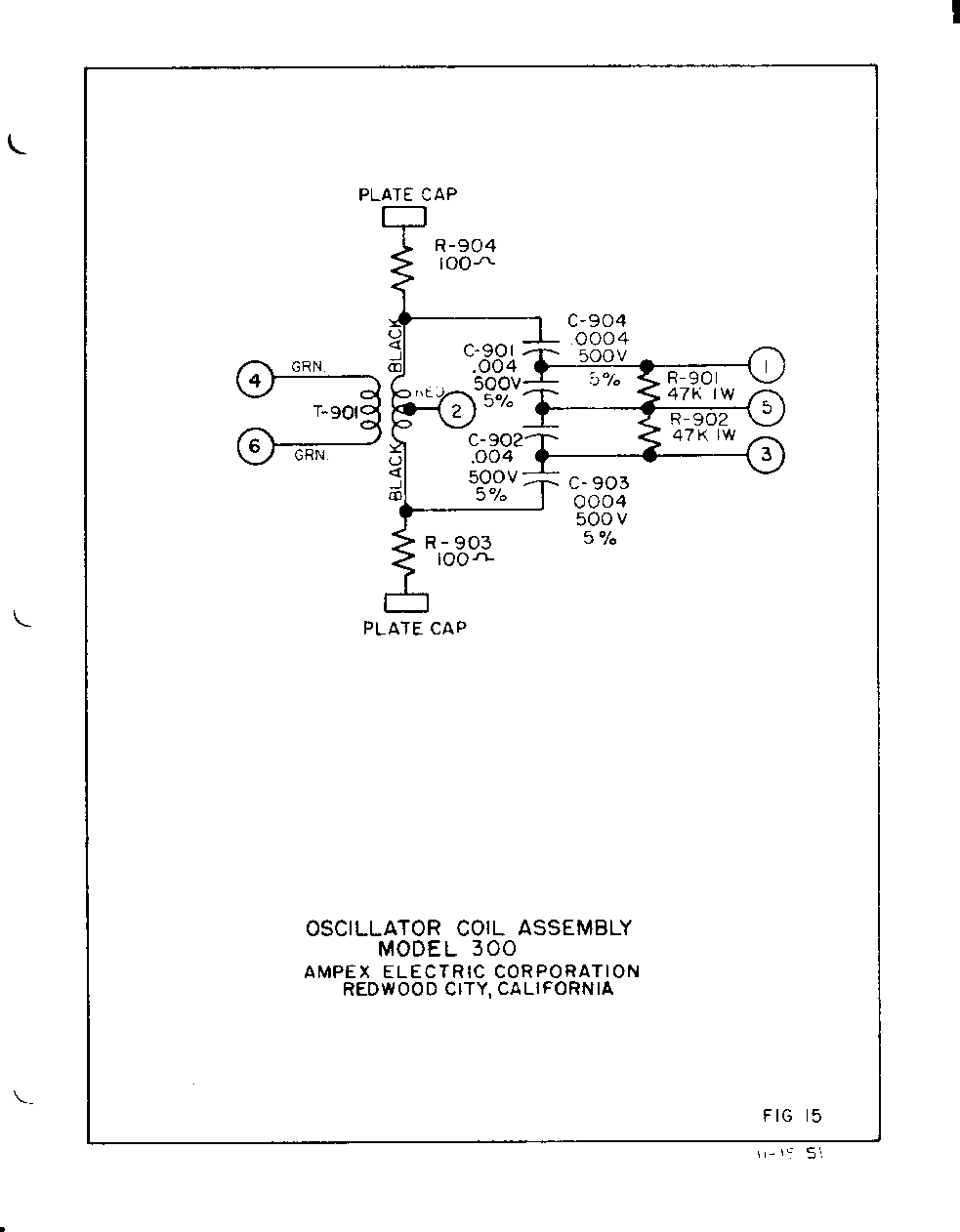

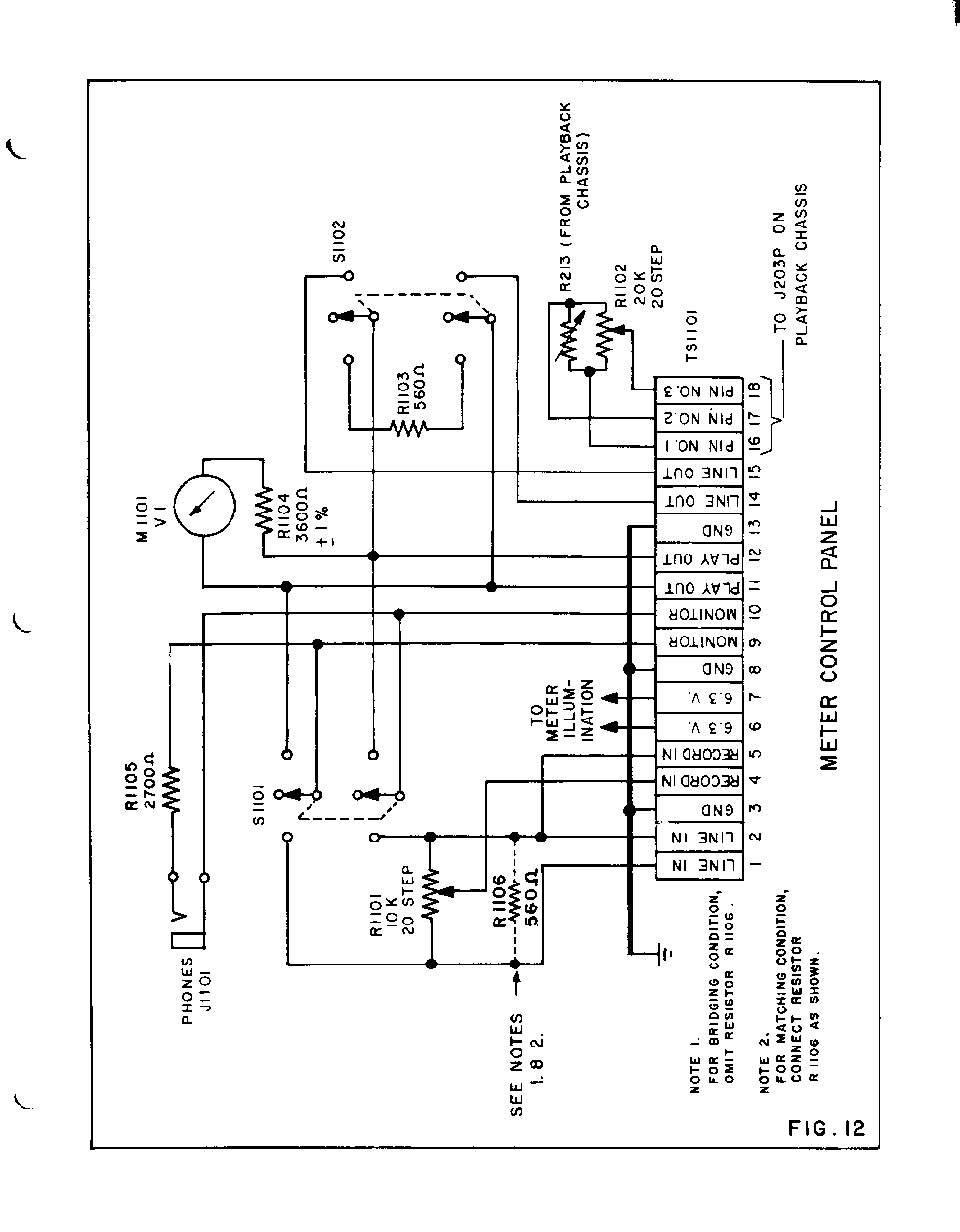

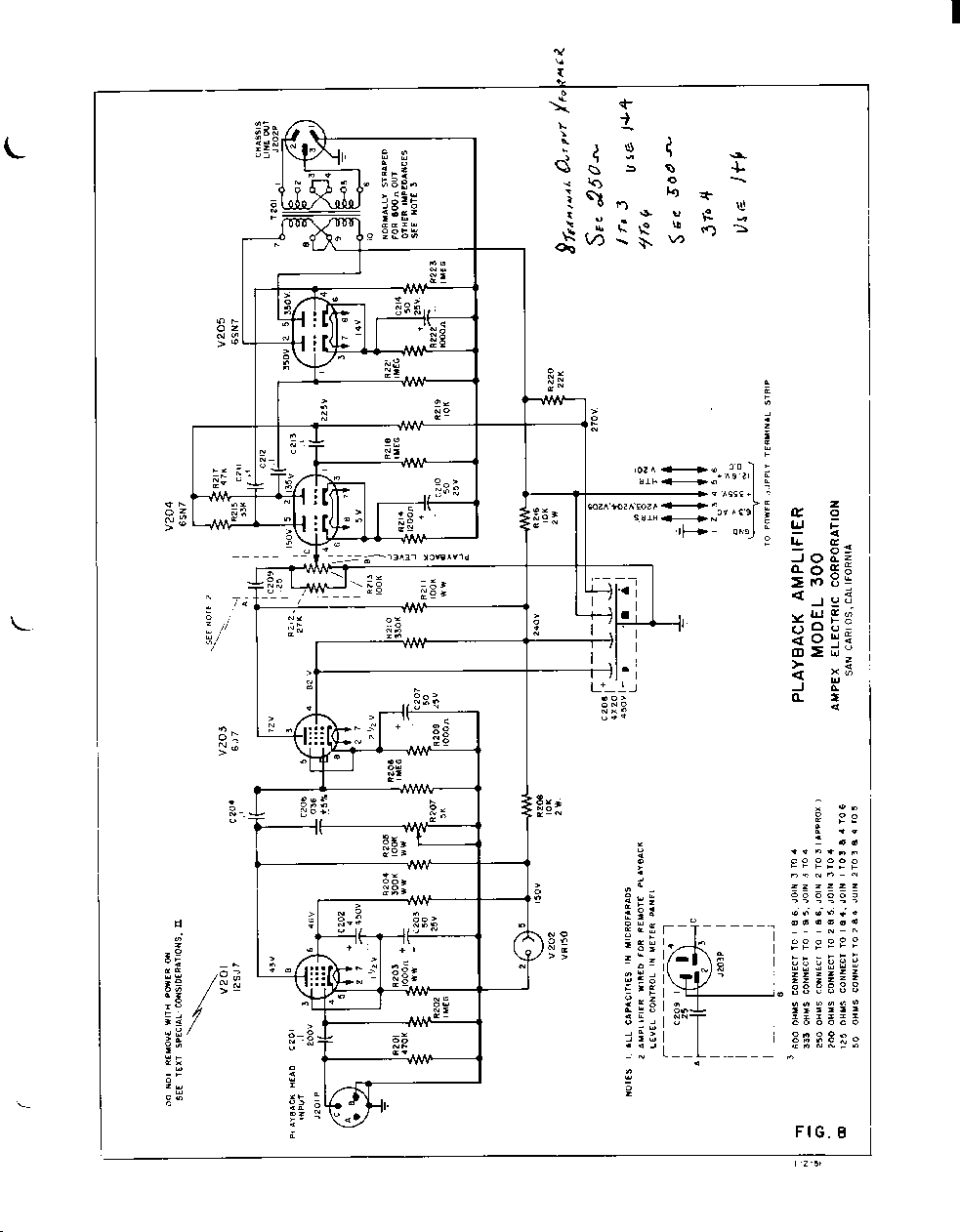

300




Note well that performing the modification described below in Service Bulletin 25 will NOT yield the modern AES 17.5 microsecond equalization, but rather constant flux equalization. This is the equalization that Ampex used in 1949 to around 1952 on the Model 201 (an update of the Model 200A, running 15 and 30 ips) and on the Model 301 (compatible with the Model 201, also running 15 and 30 ips).

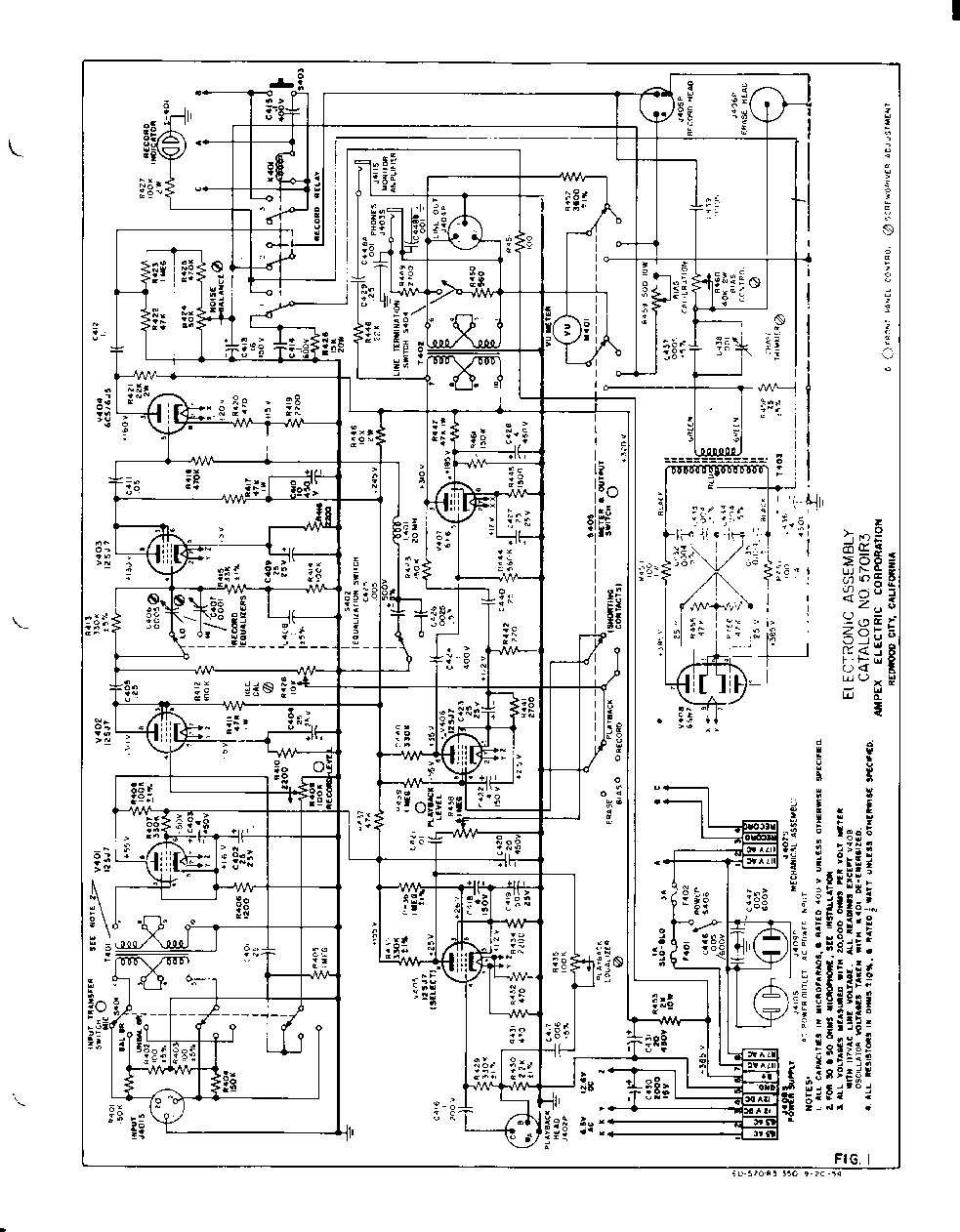

350


351

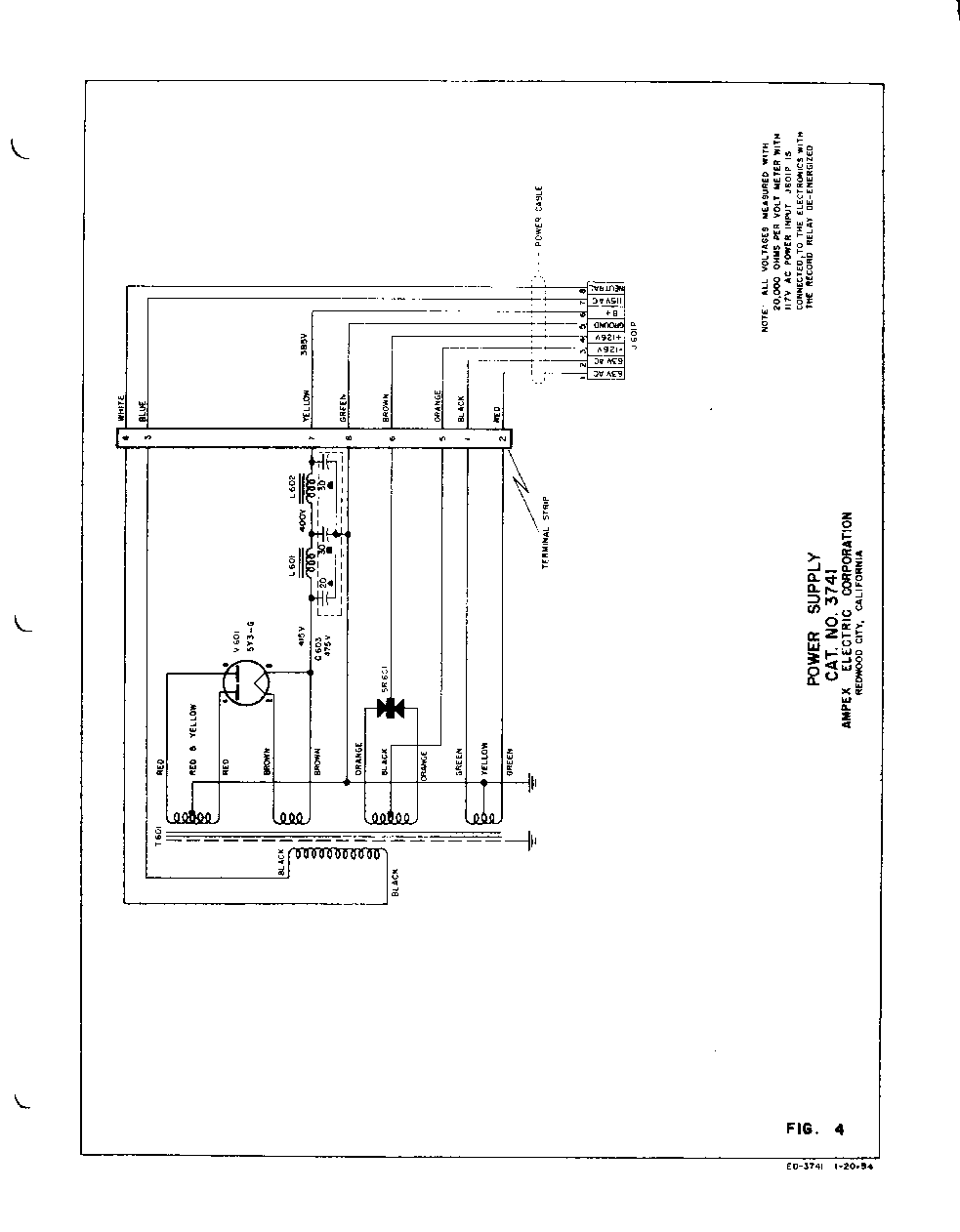

354


600

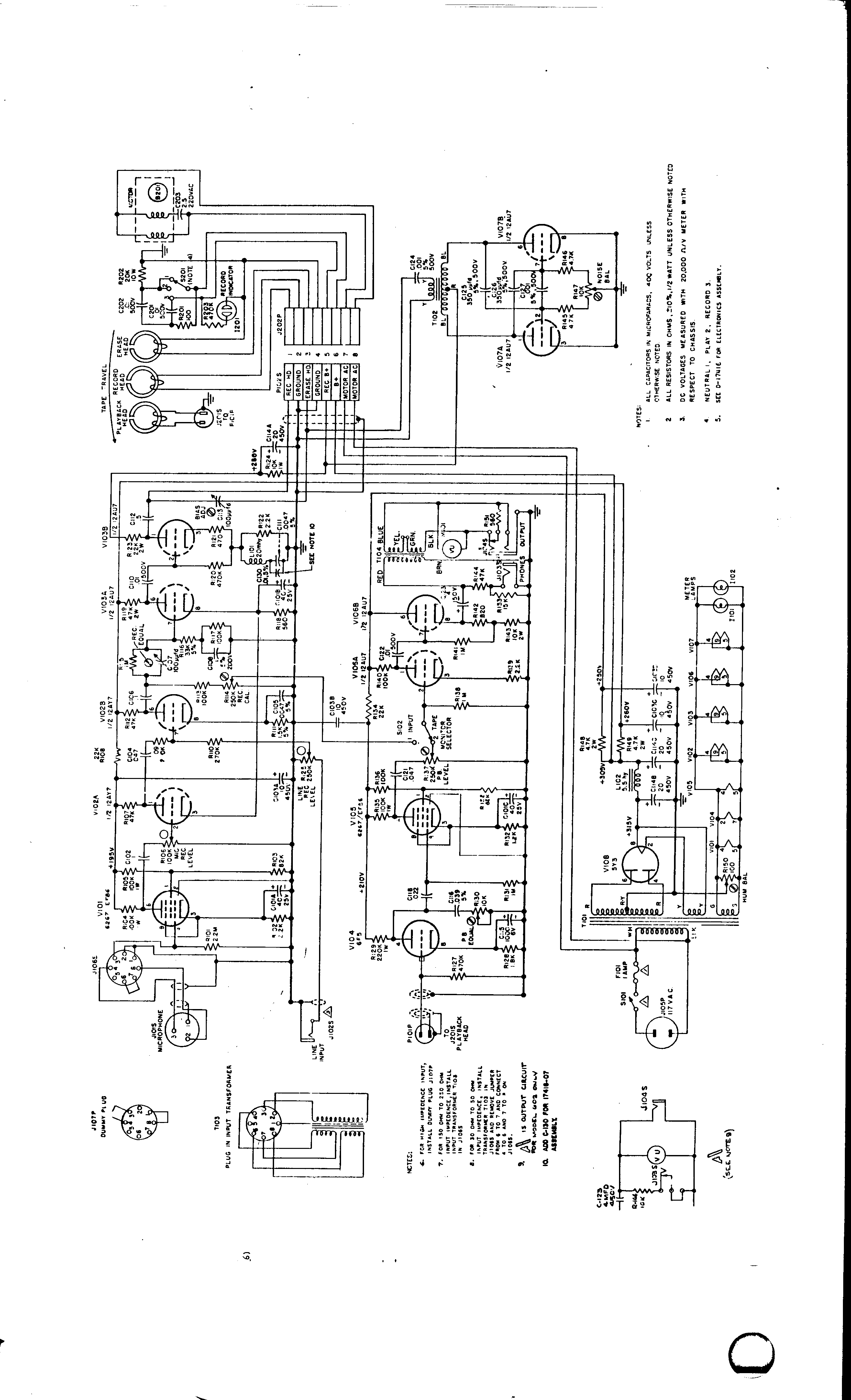

601


AG-350


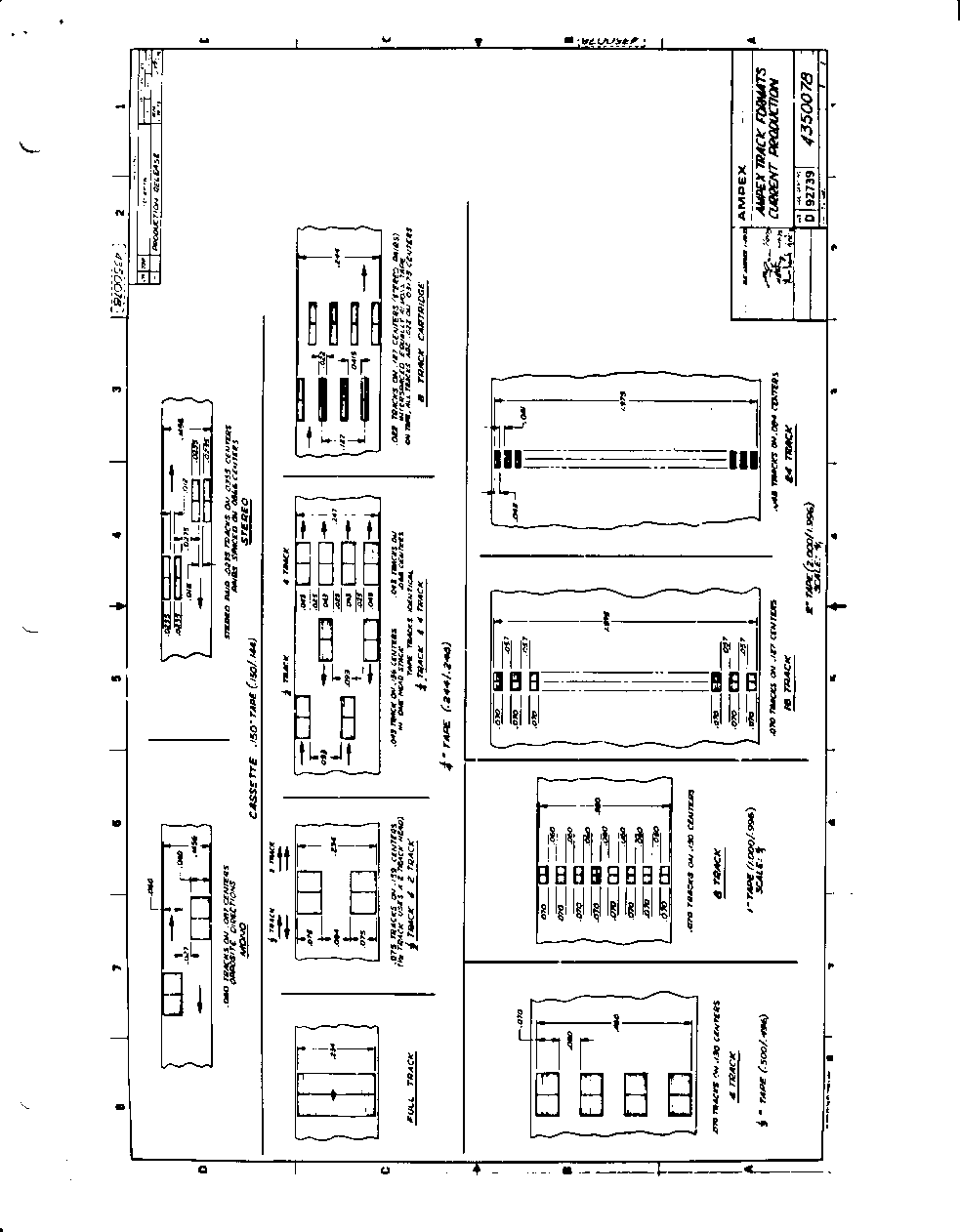

AG-440 (Applicable to all models)


AG-440 (i.e., "AG-440A")

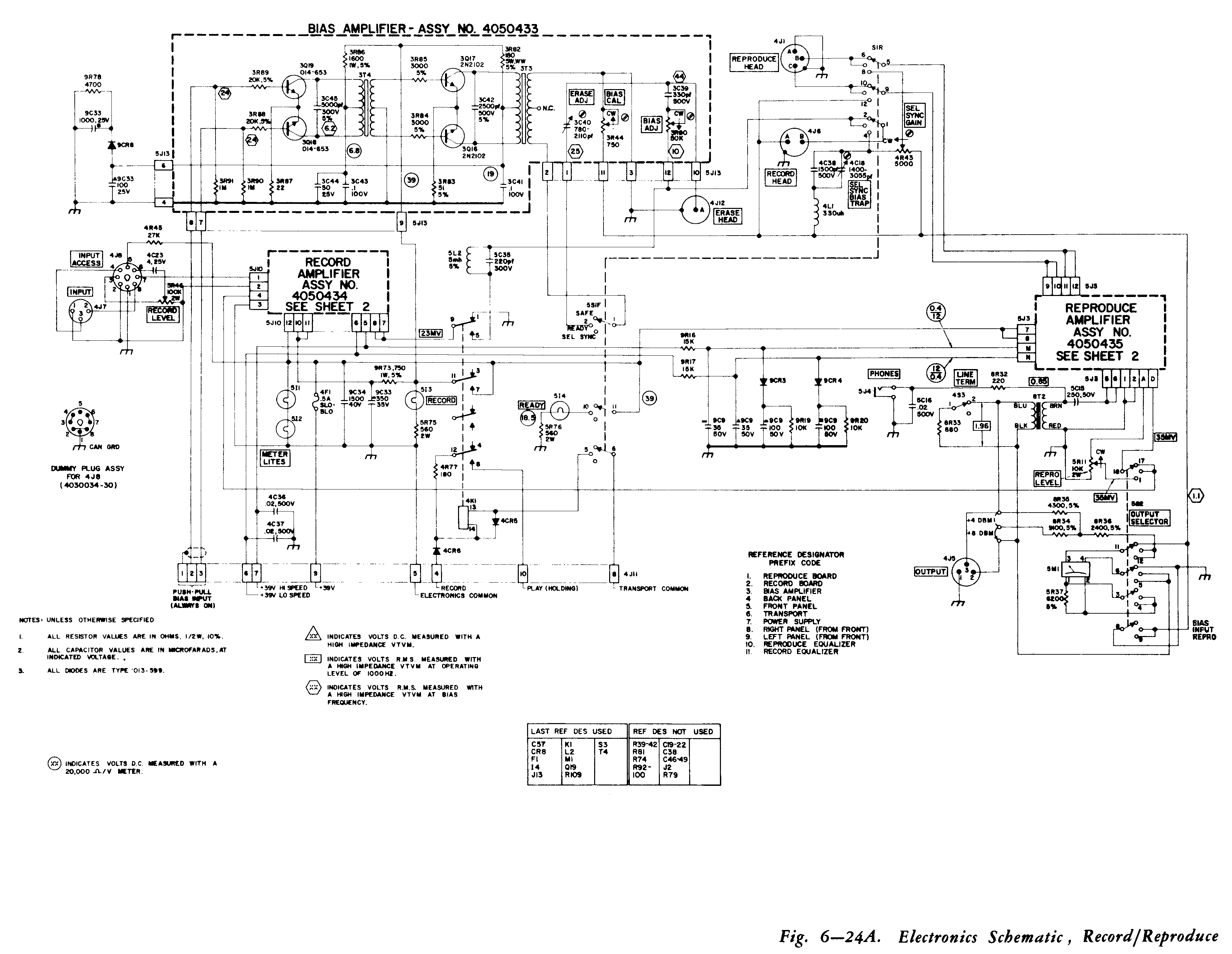

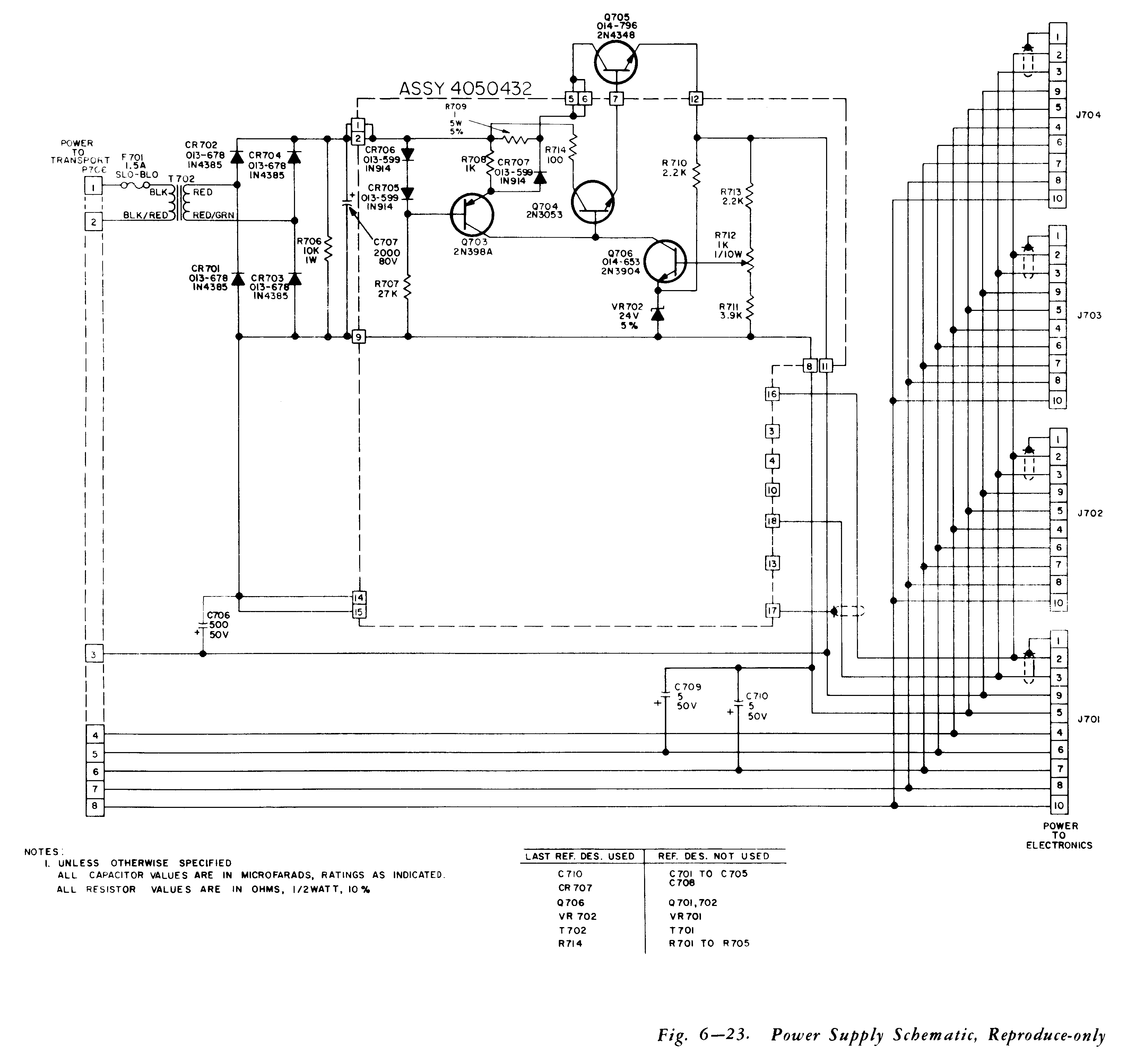

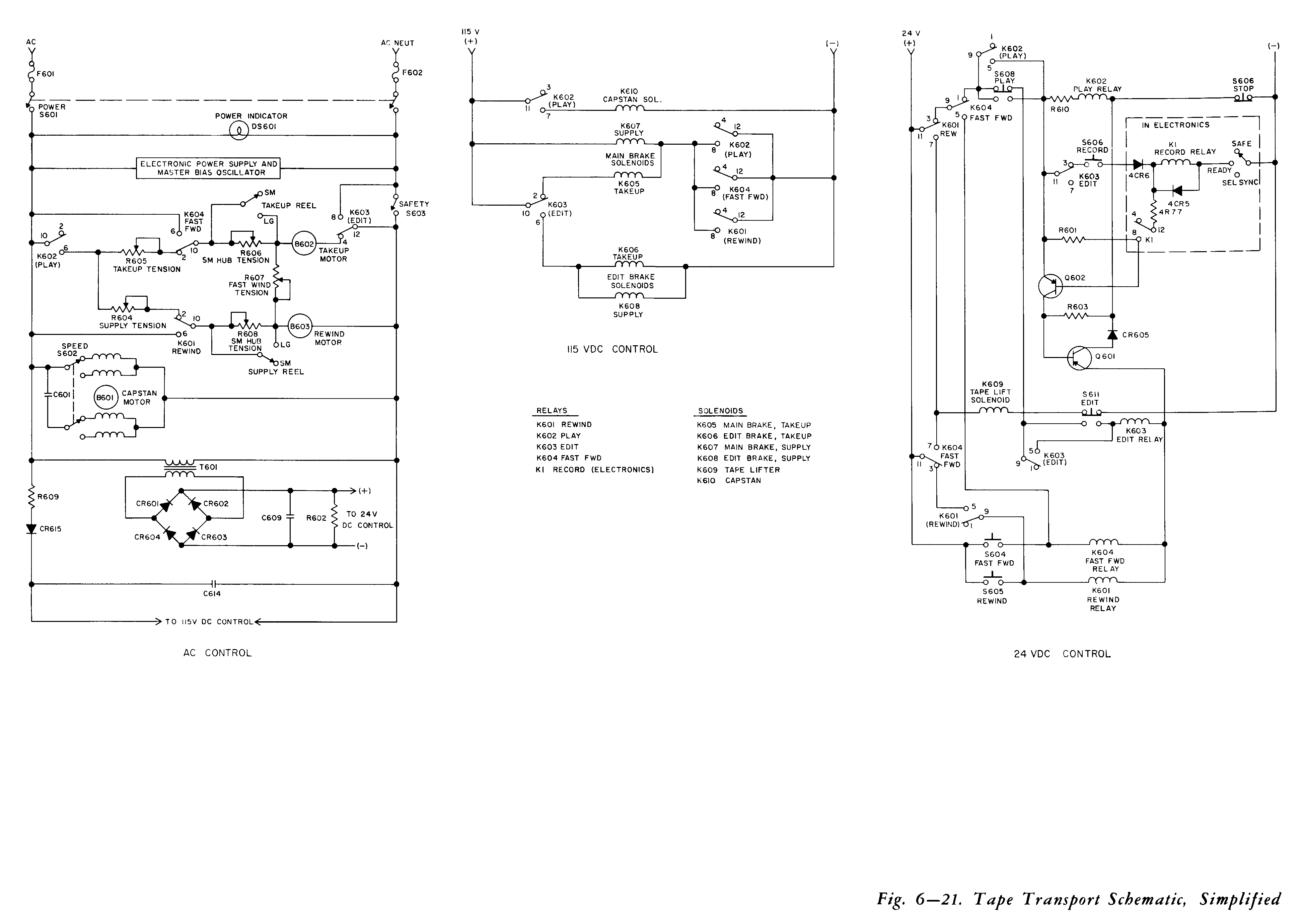

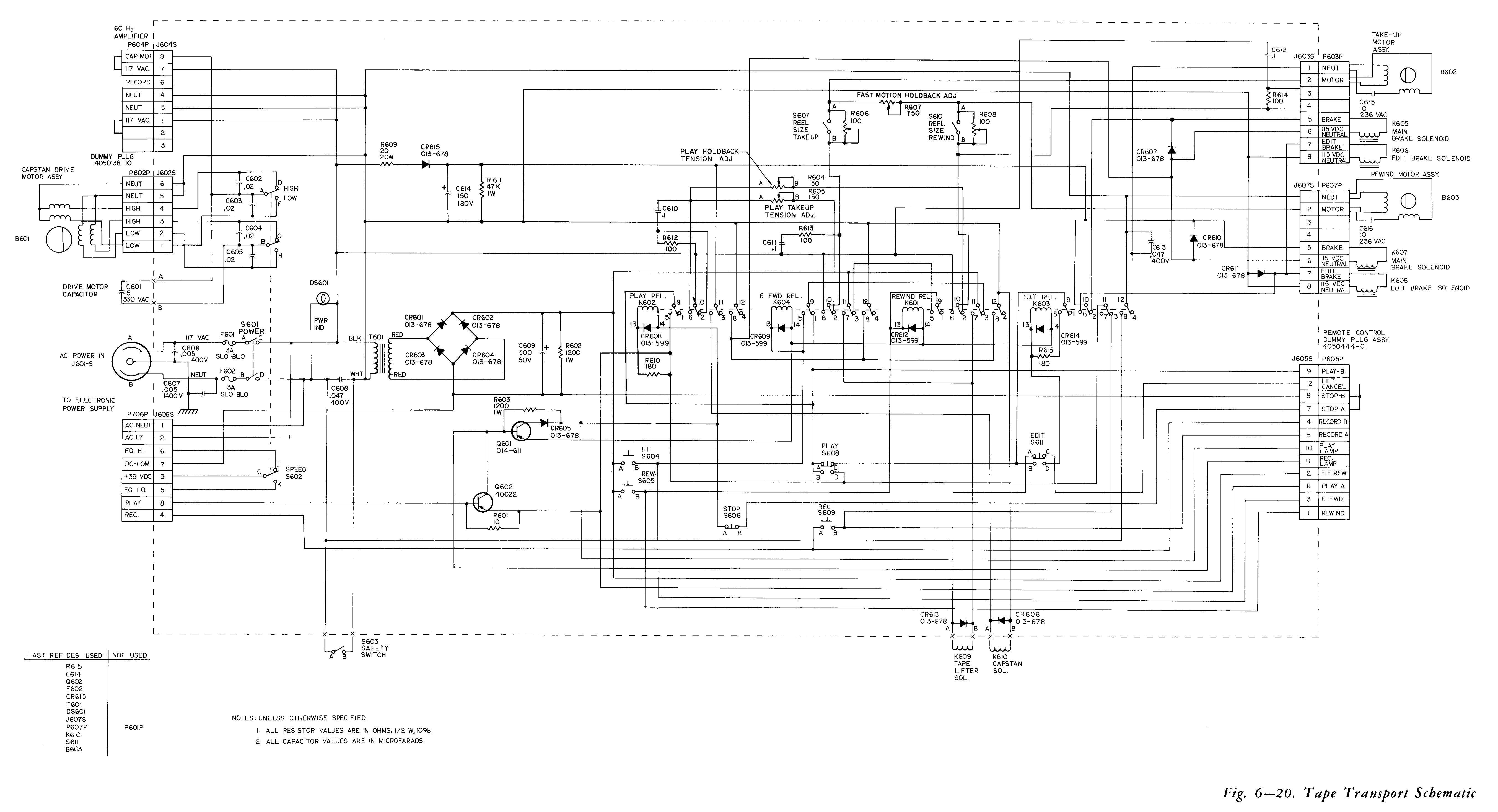

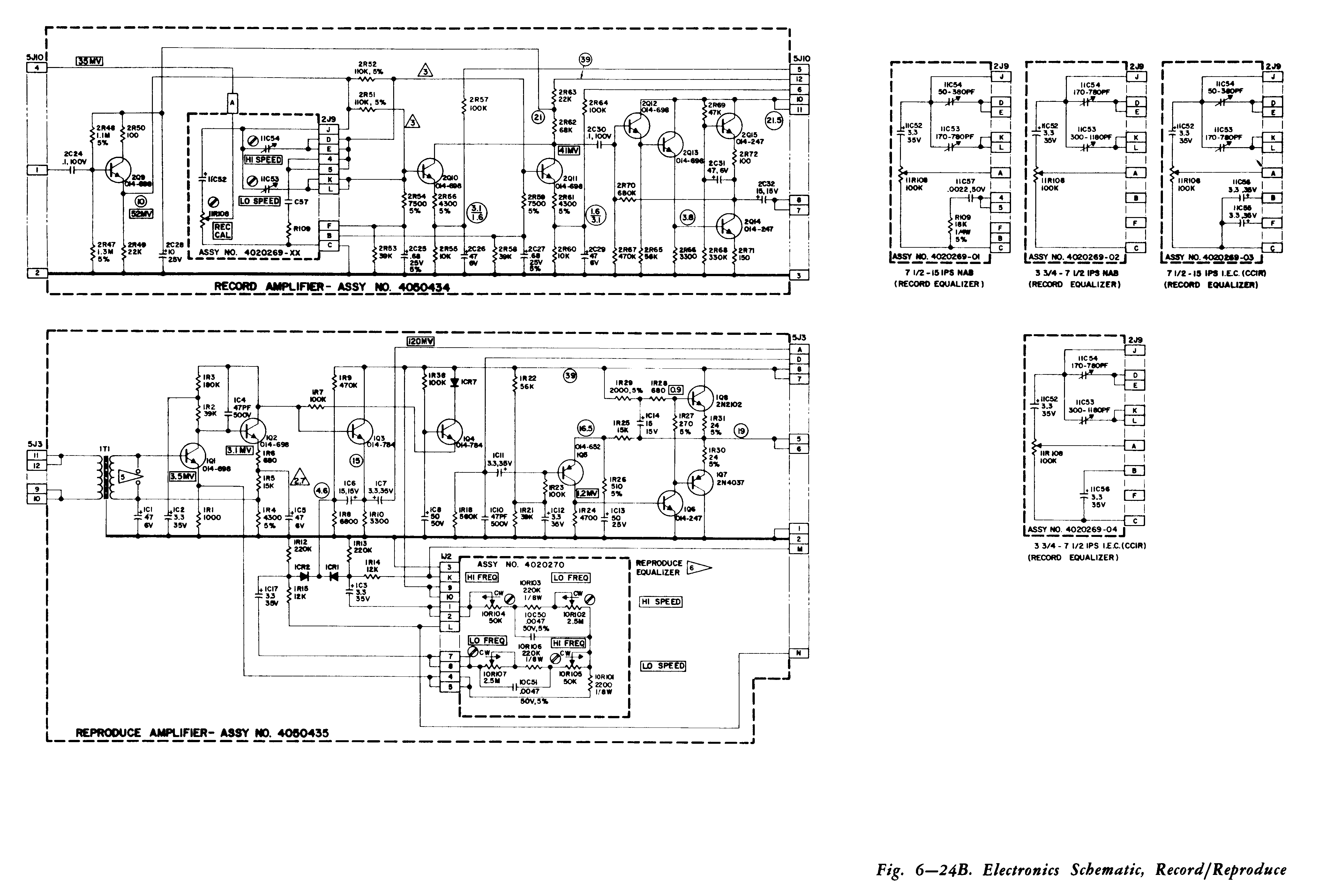

AG-440C

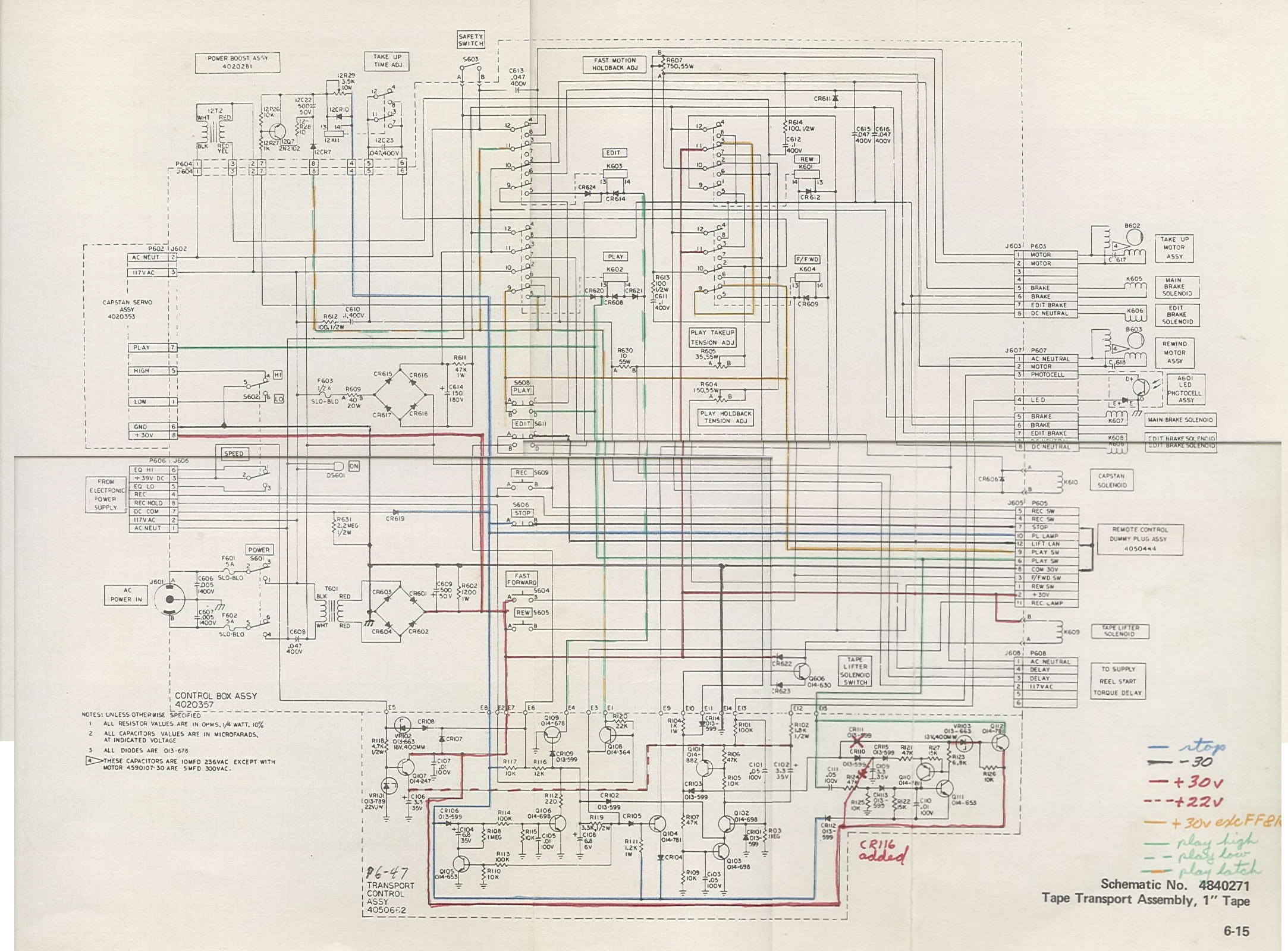

AG-440-8


AG-500

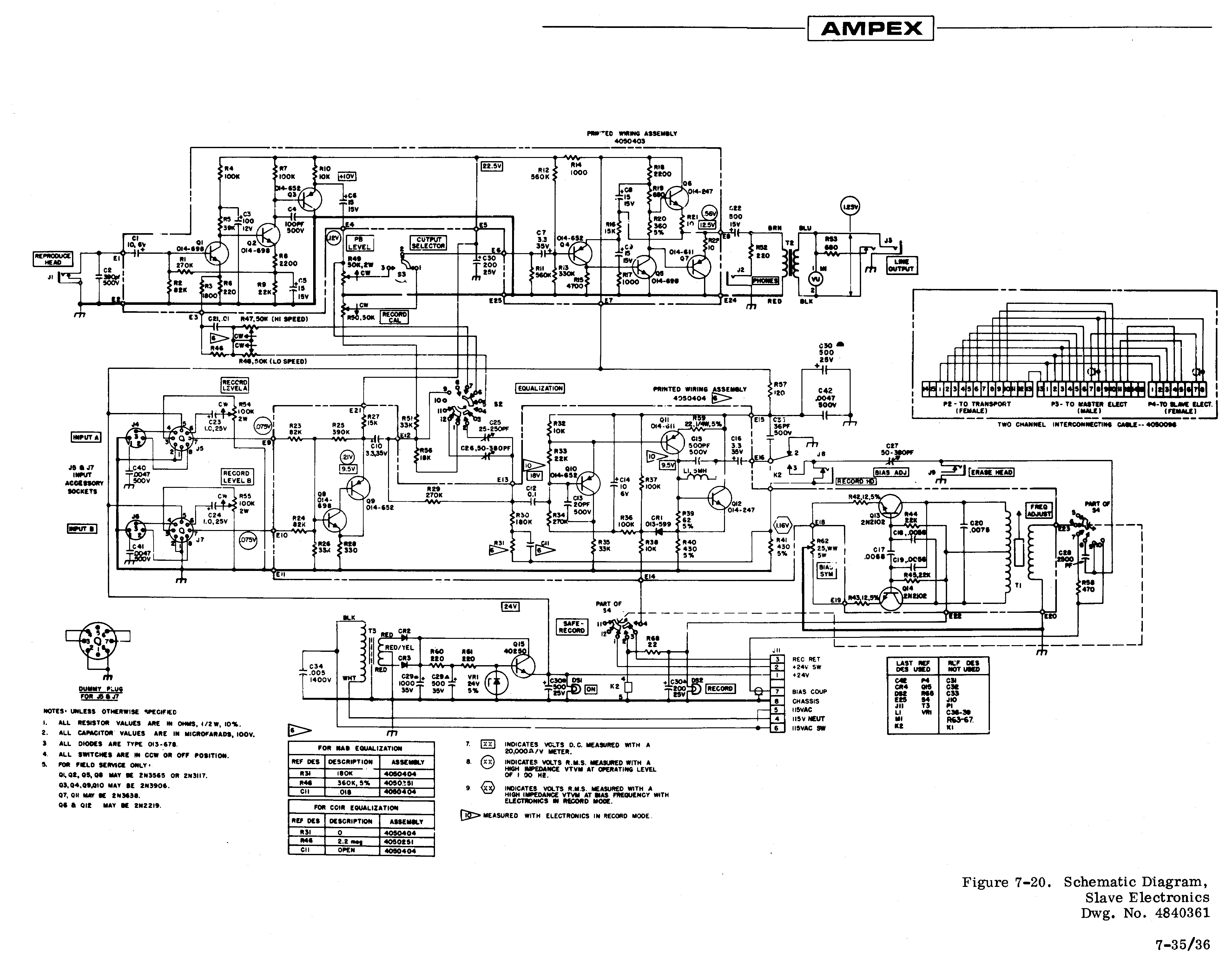

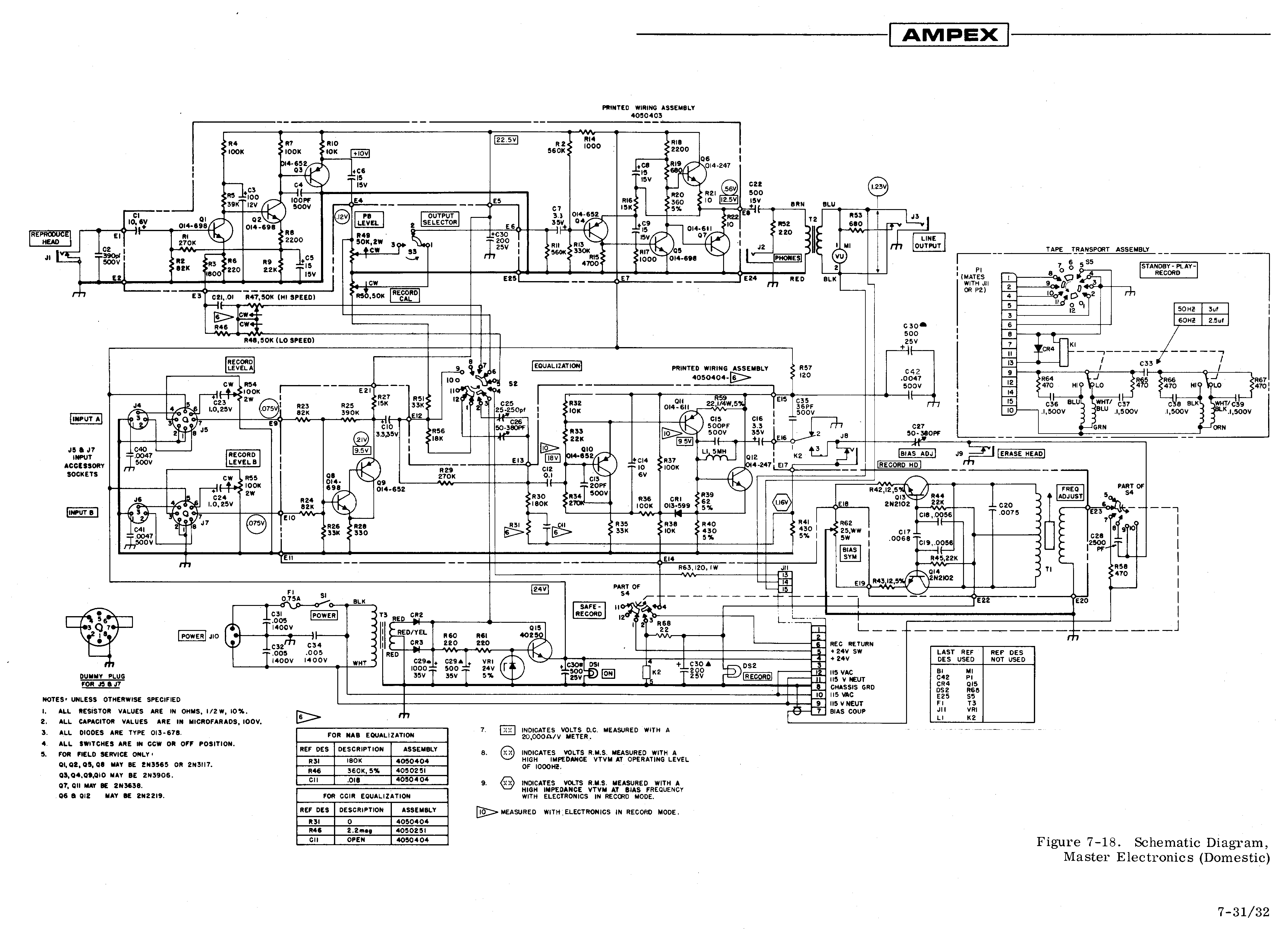

AG-600B


GS-80B

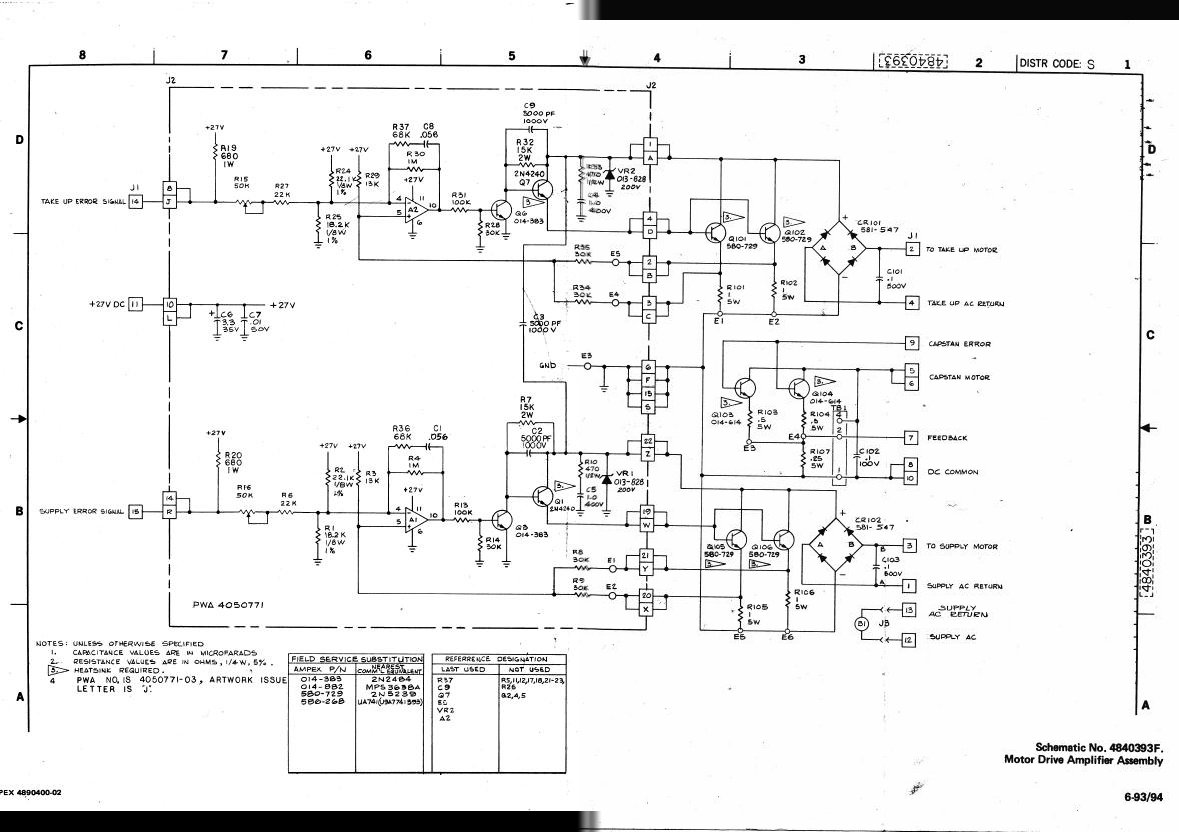

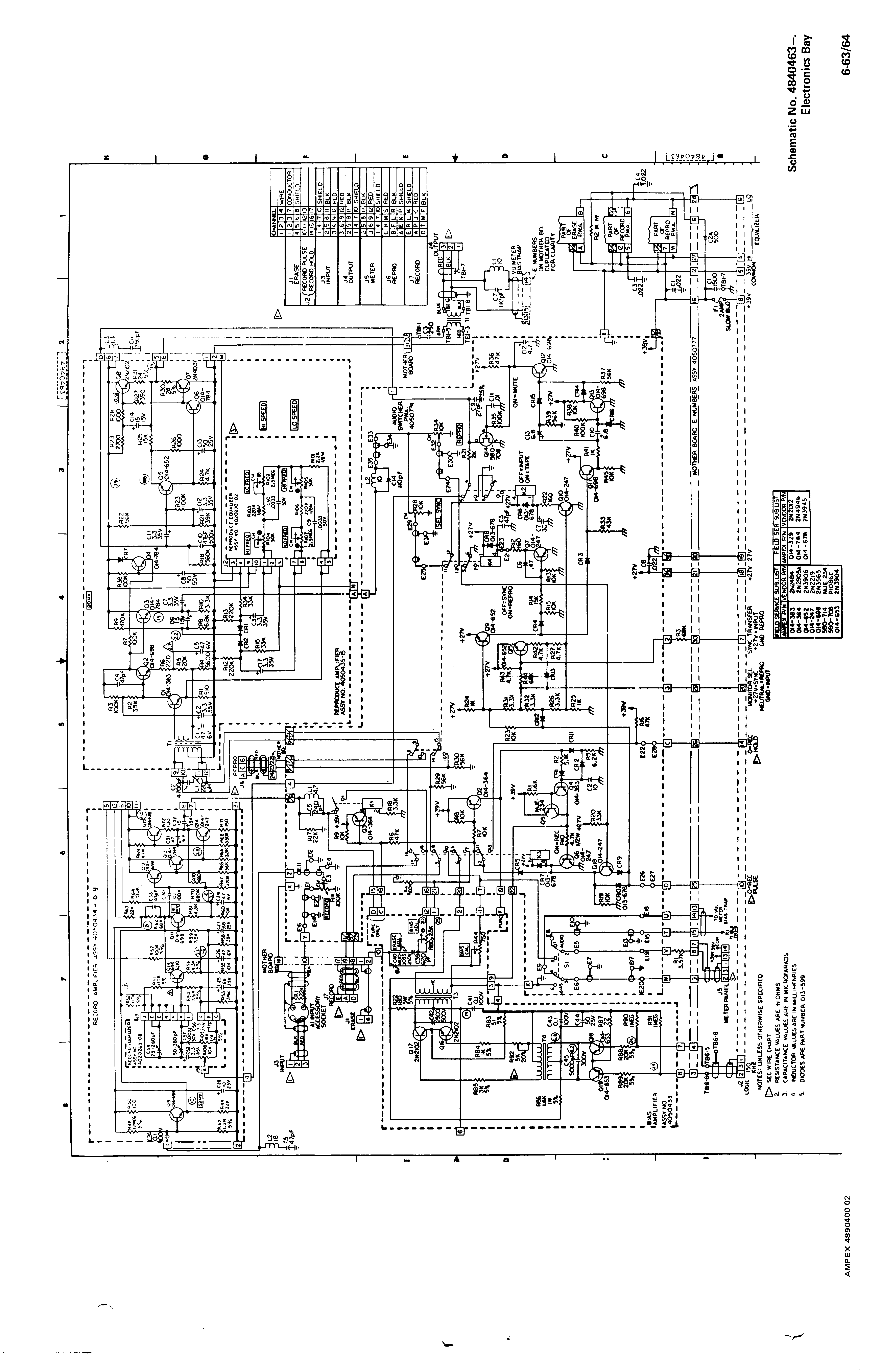

MM1200

NOTE: The schematic above displays properly on some machines and does not display at all on others.

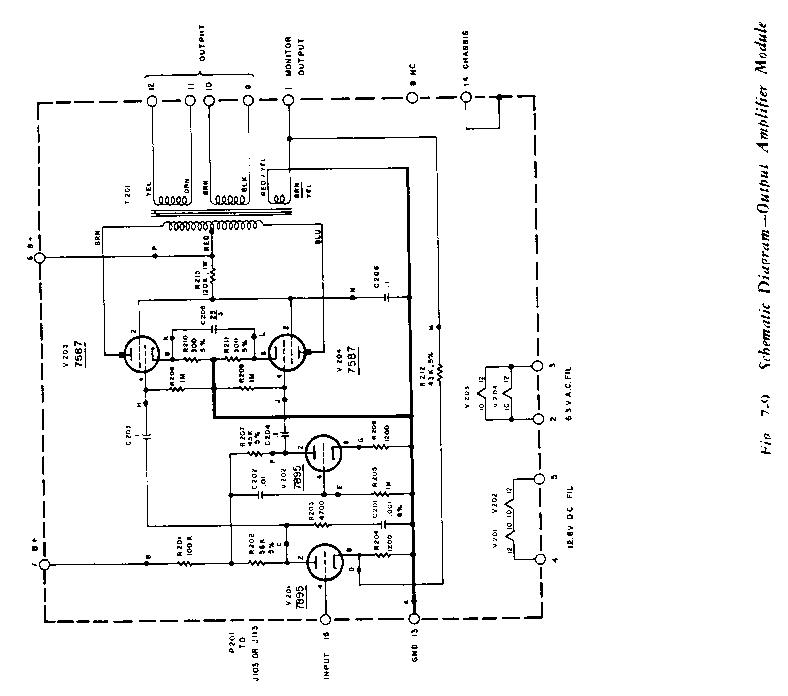

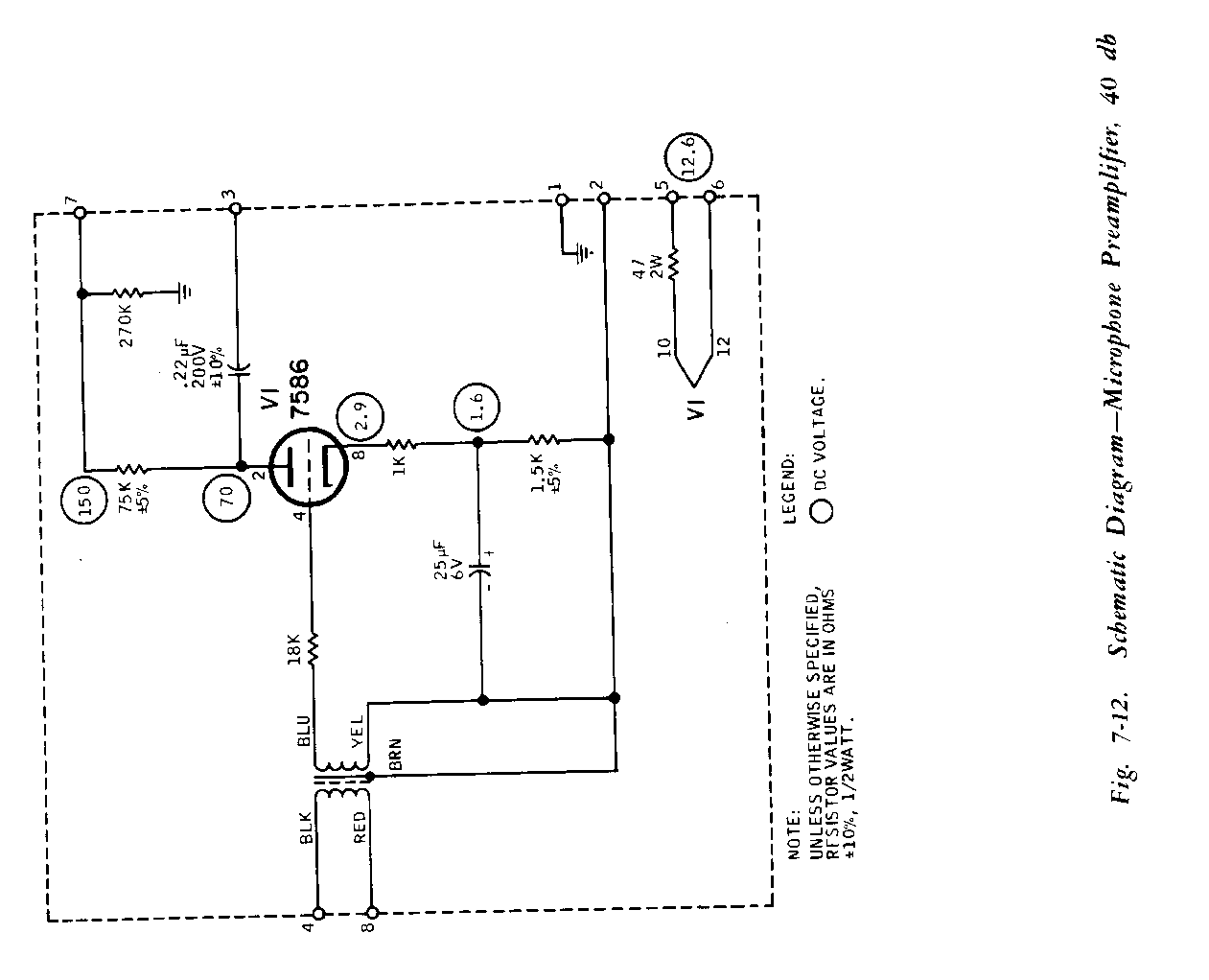

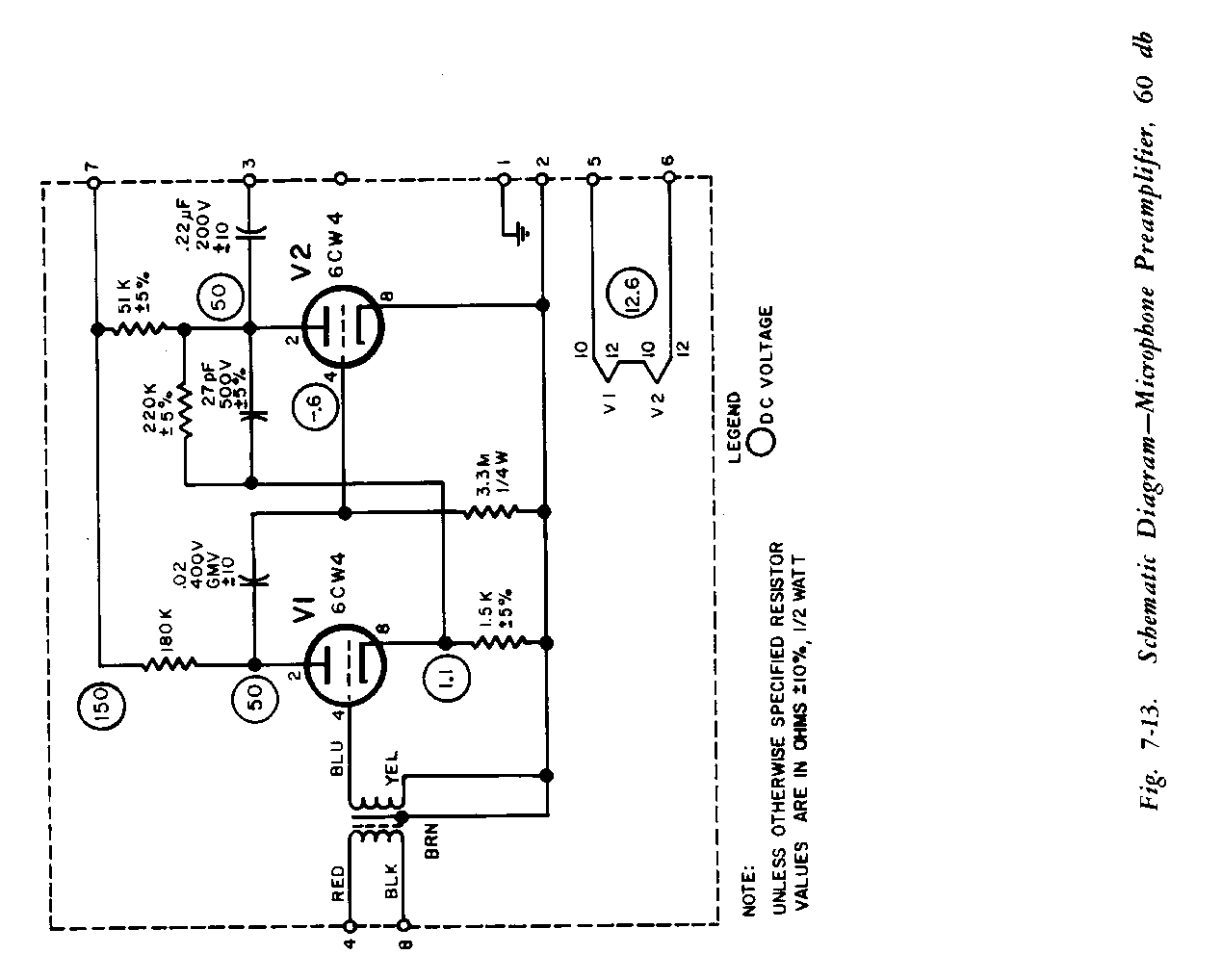

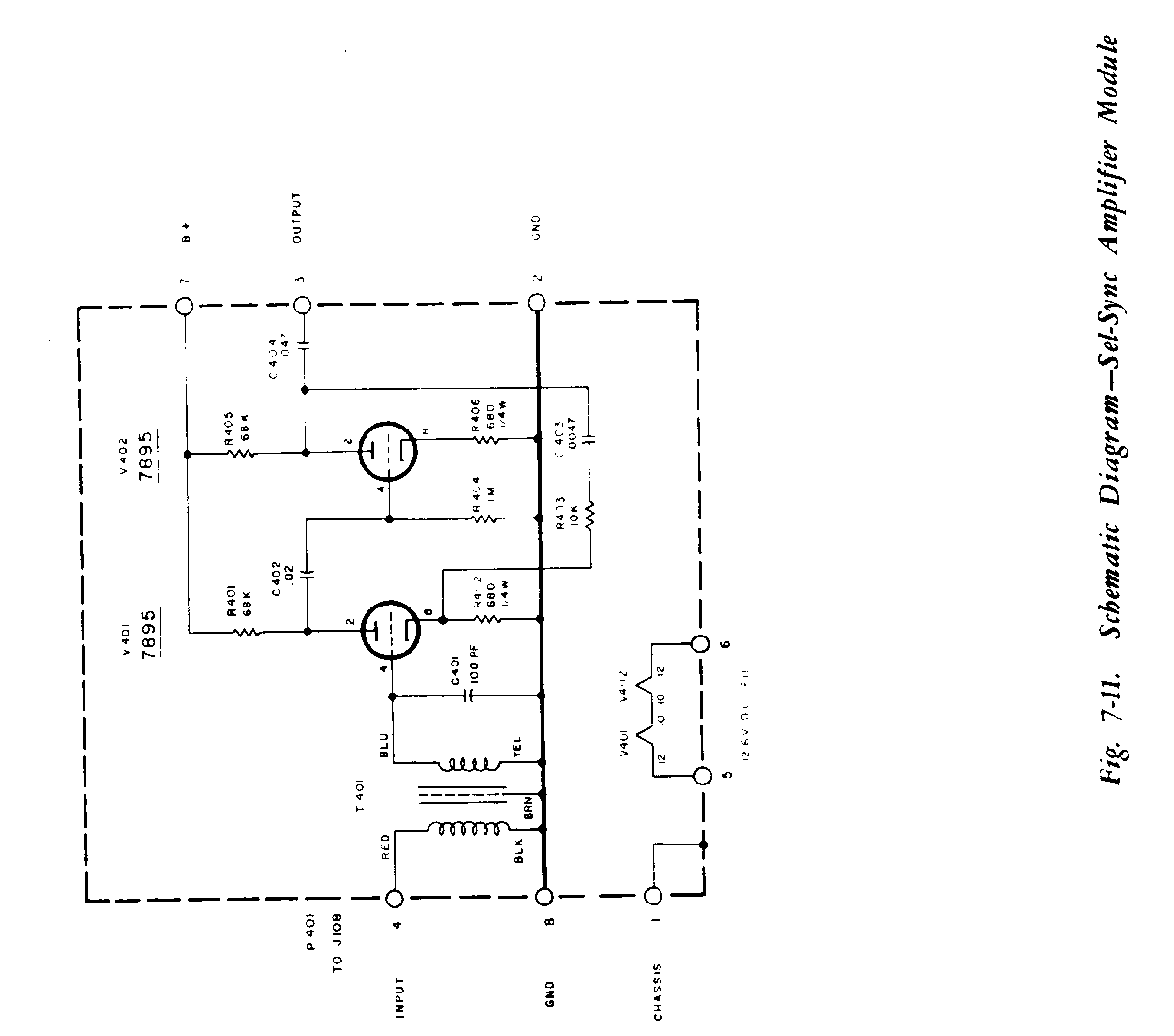

MR-70



PR-10


Mixers

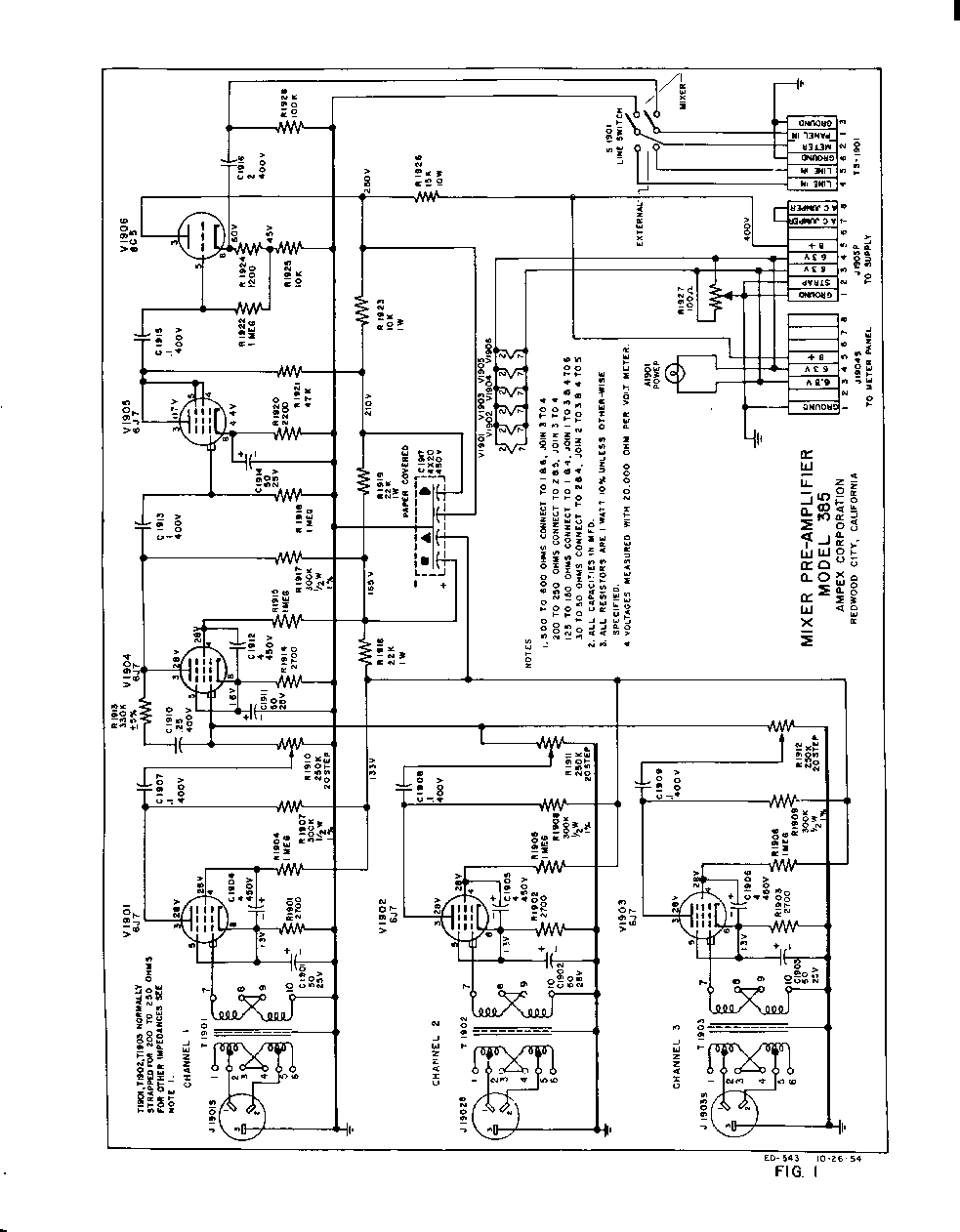

385 mixer


3671 mixer

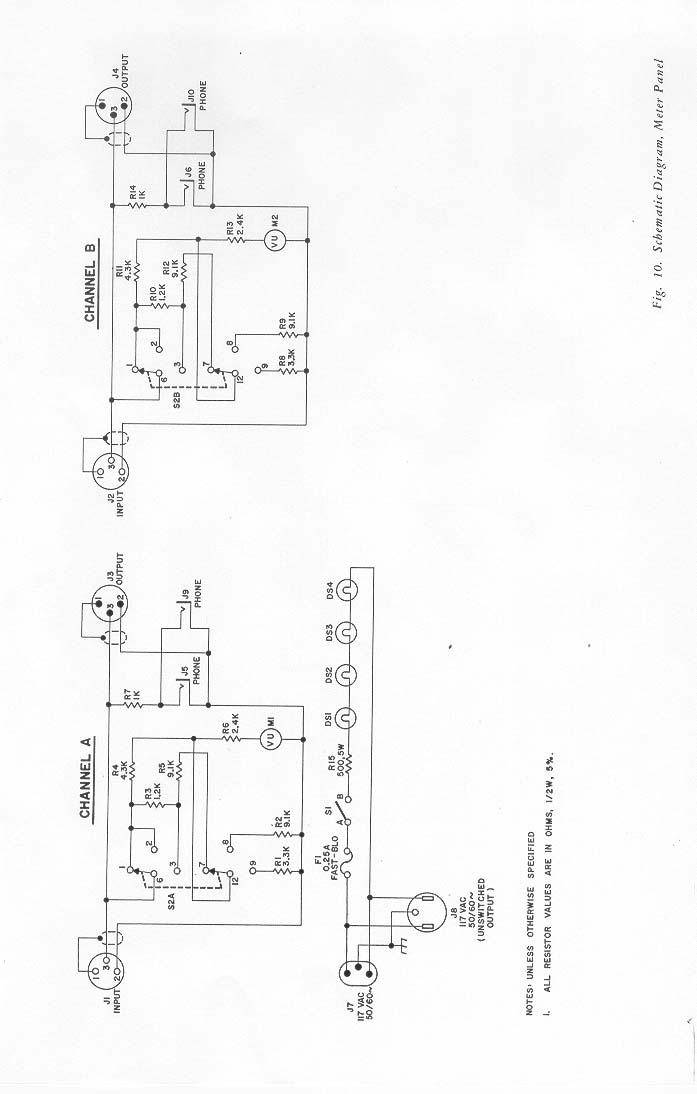

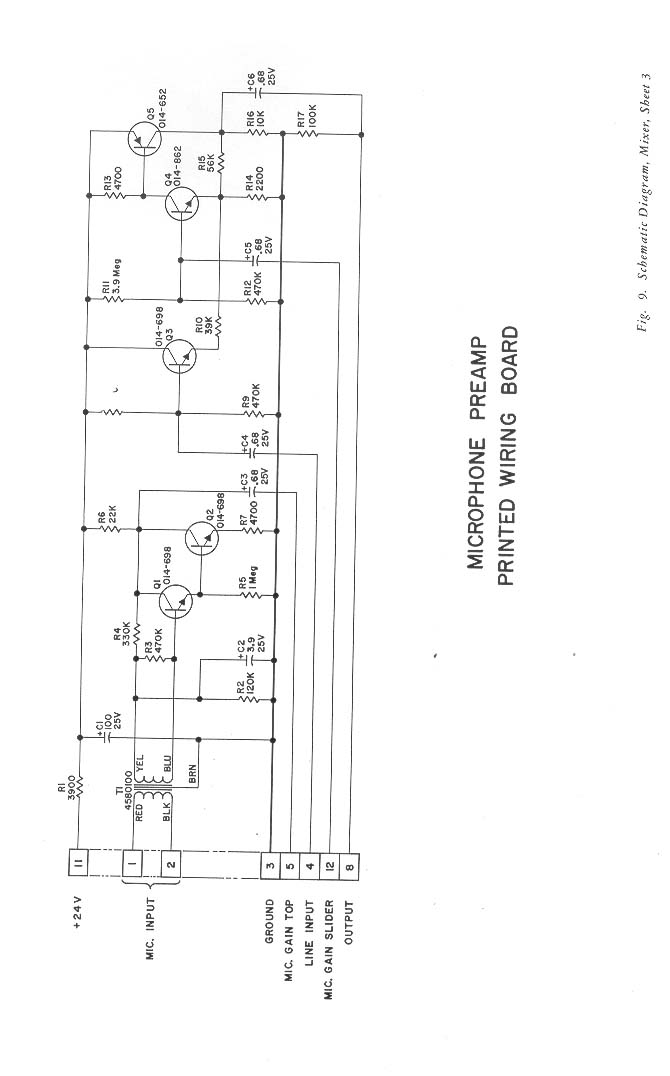

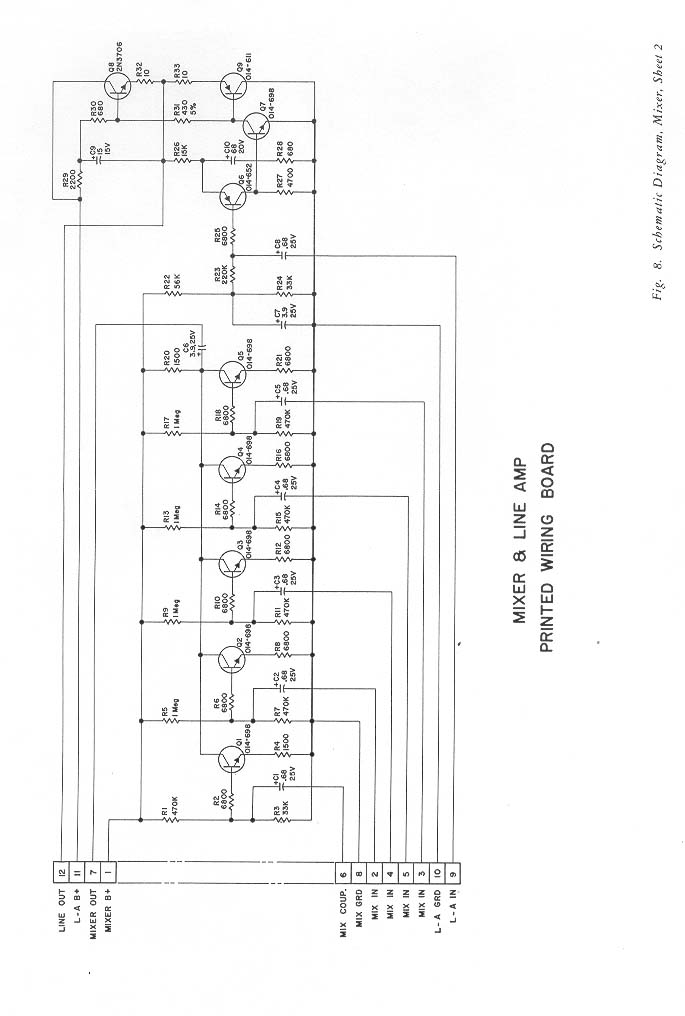

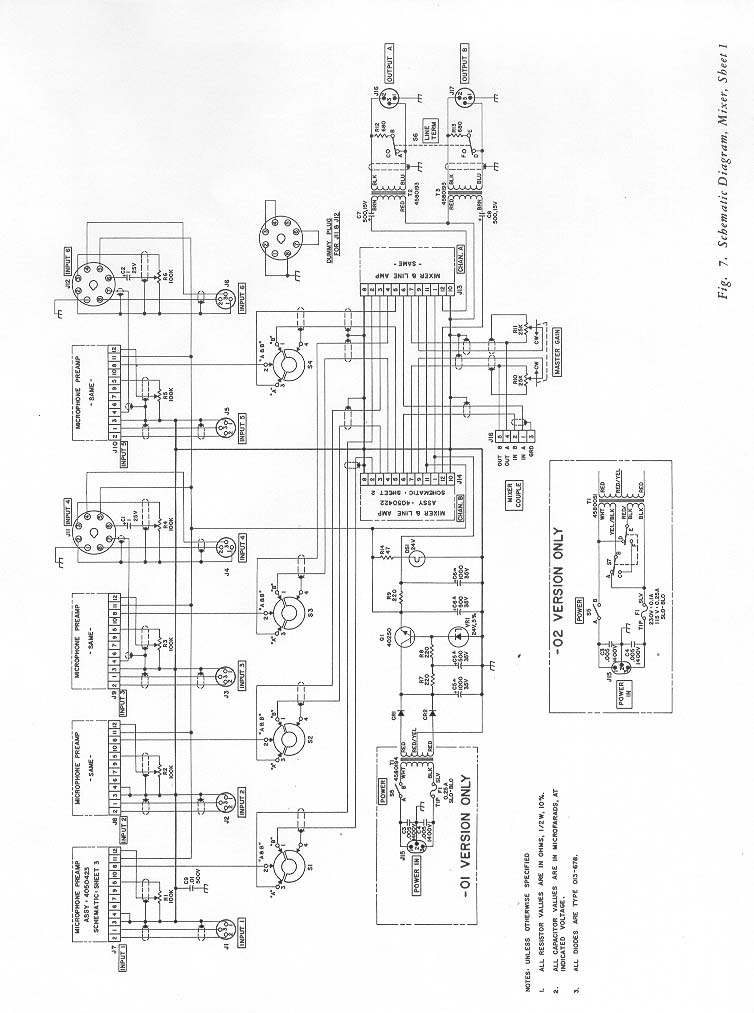

AM-10 Mixer


MX-10 mixer


The MX-10 and MX-35 mixers are identical electronically. Only the knobs and faceplates differ.

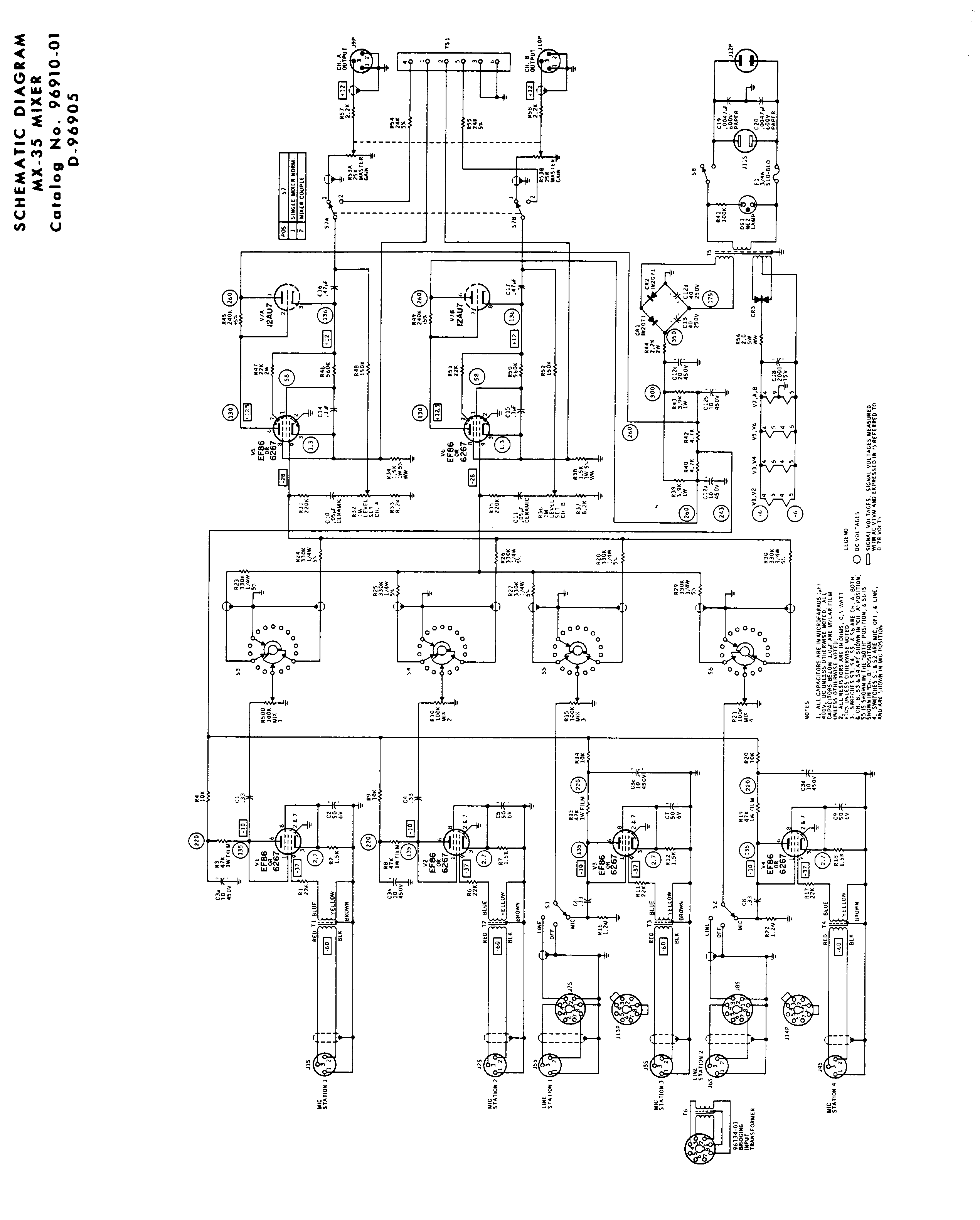

MX-35 mixer


The MX-10 and MX-35 mixers are identical electronically. Only the knobs and faceplates differ.


Schematics of Other Ampex Products

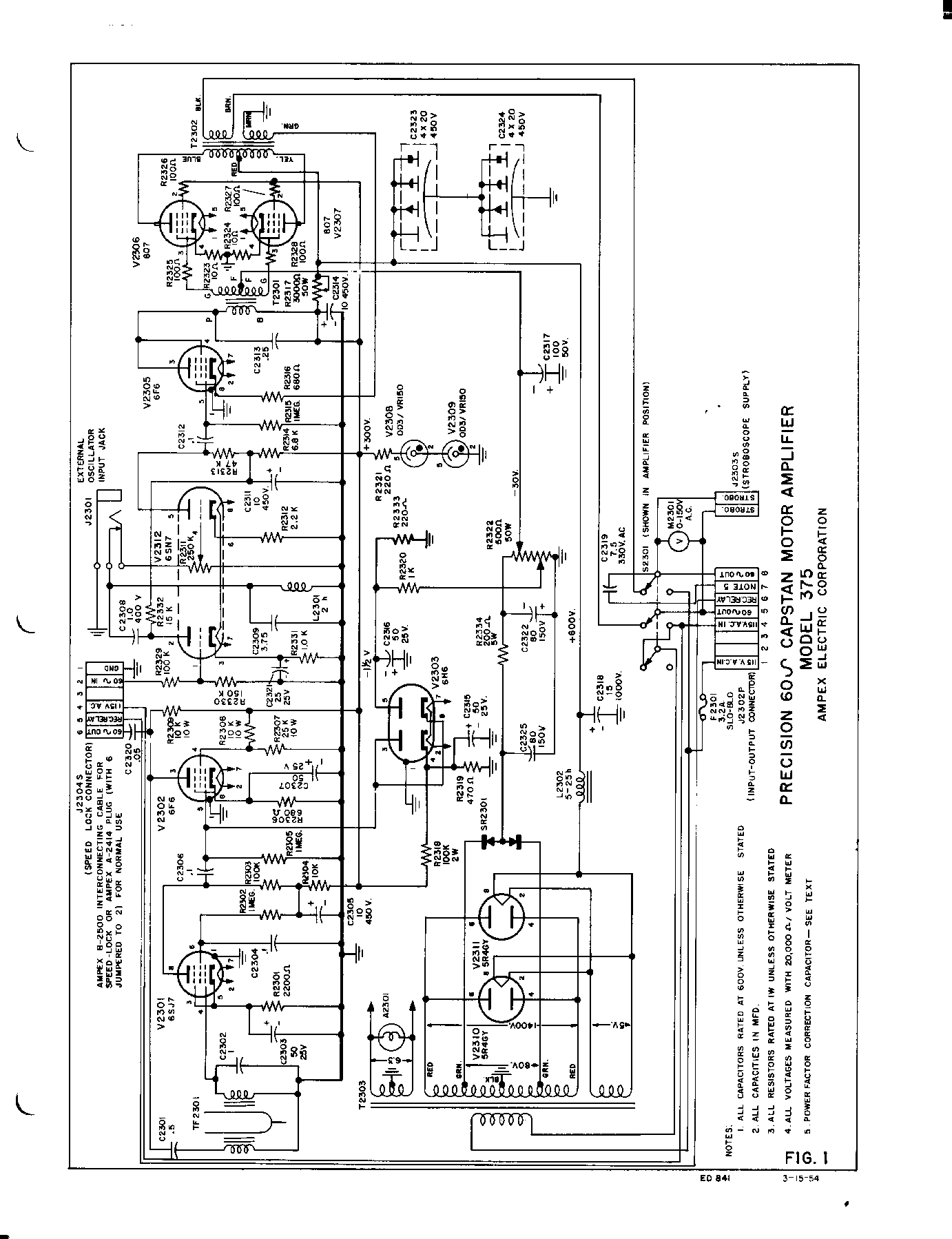

375 60-cycle amplifier

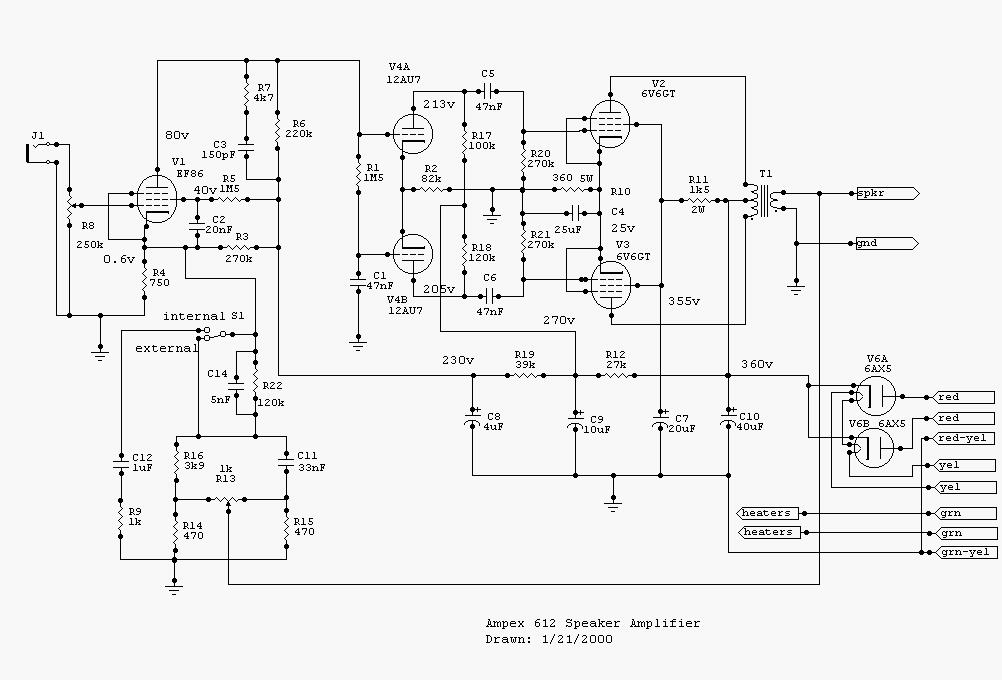

612 Speaker Amplifier


620 Speaker Amplifier

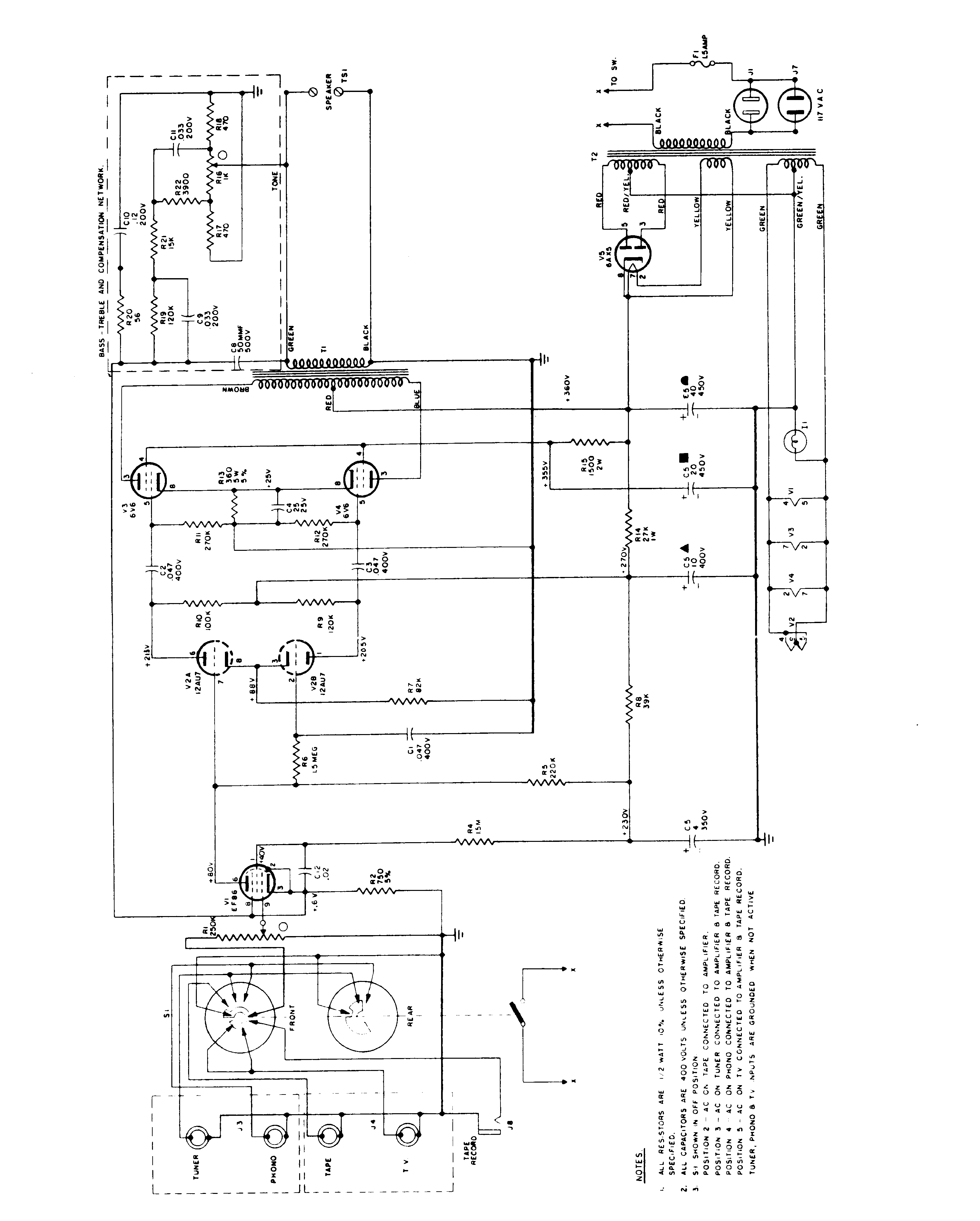

2012 Amplifier


A692 Speaker

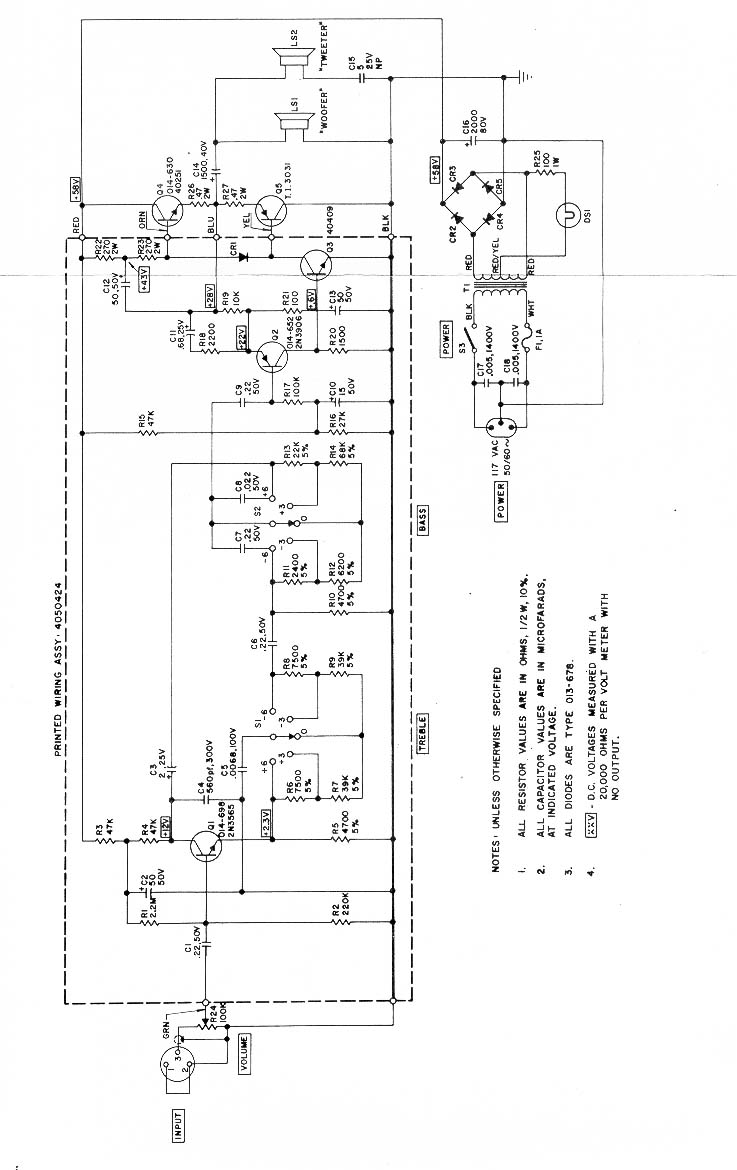

AA-620 Speaker Amplifier

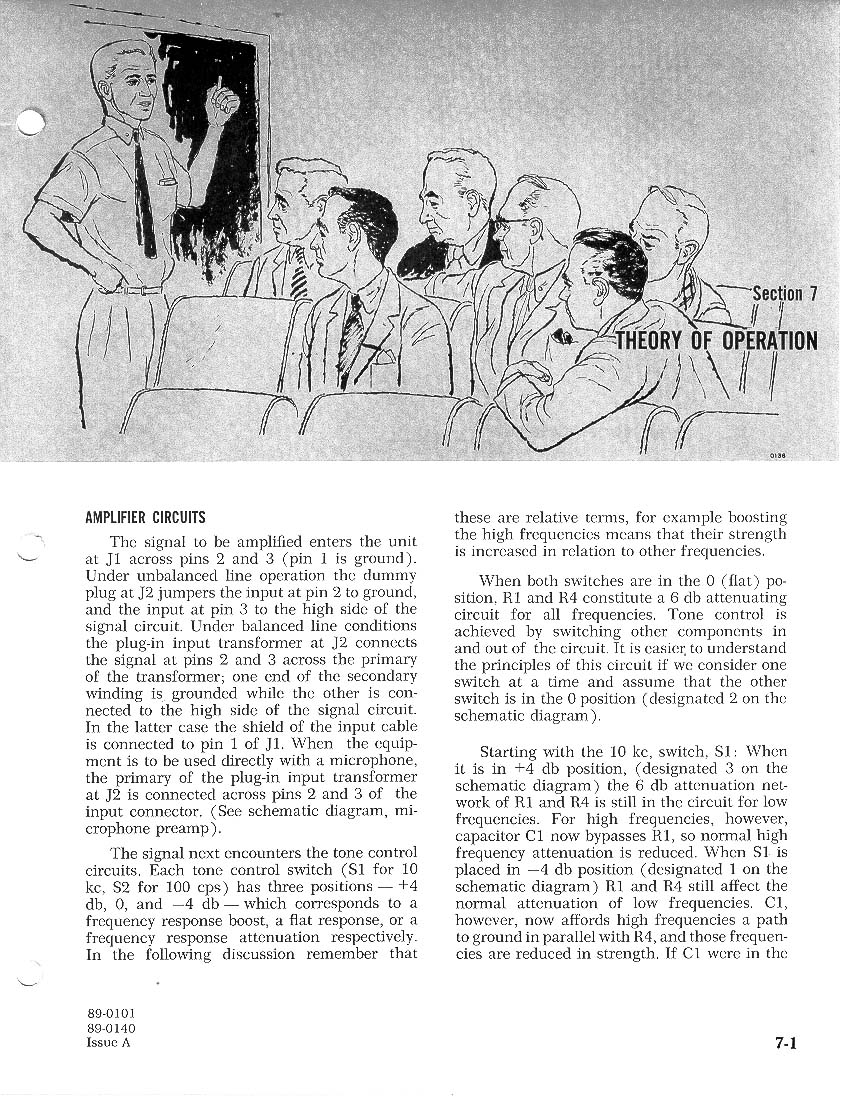

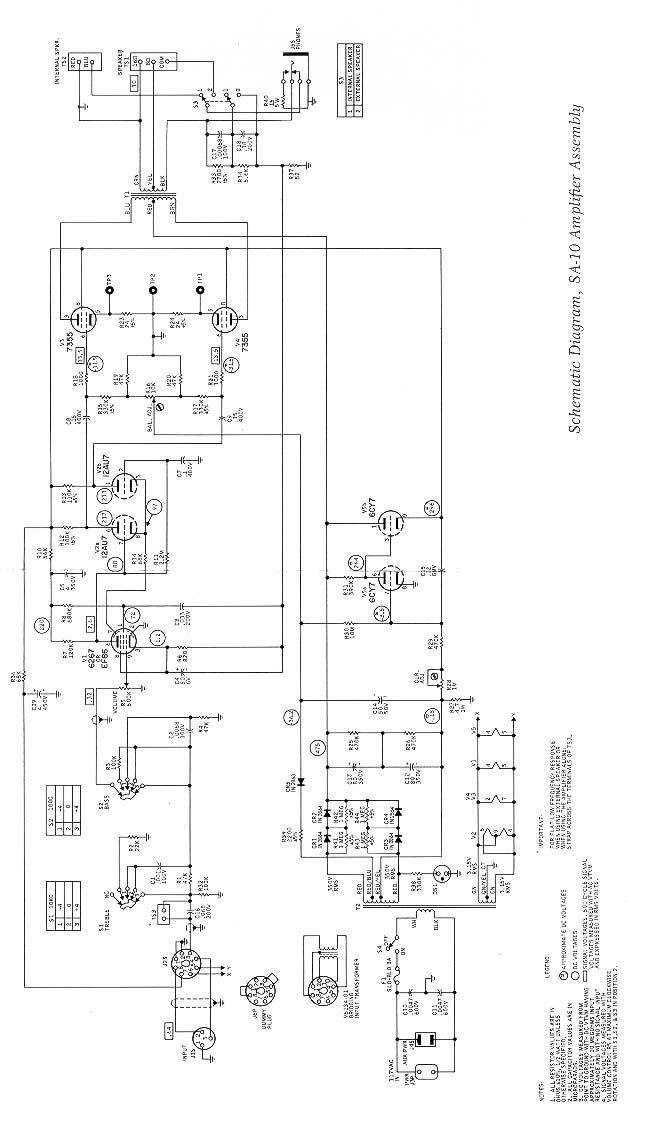

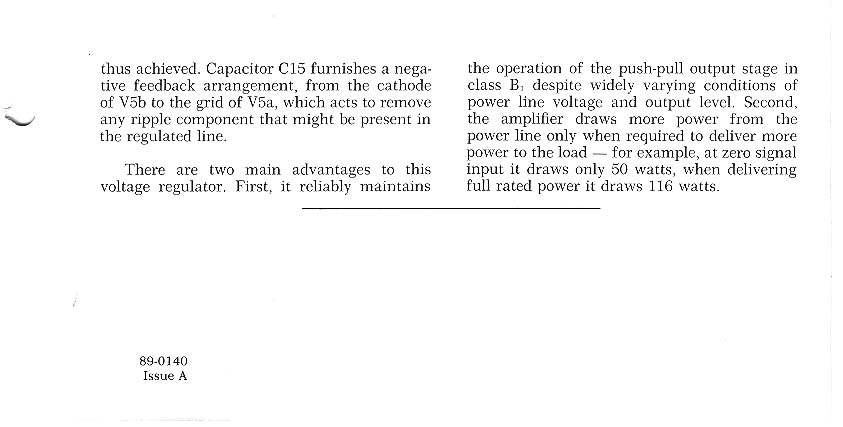

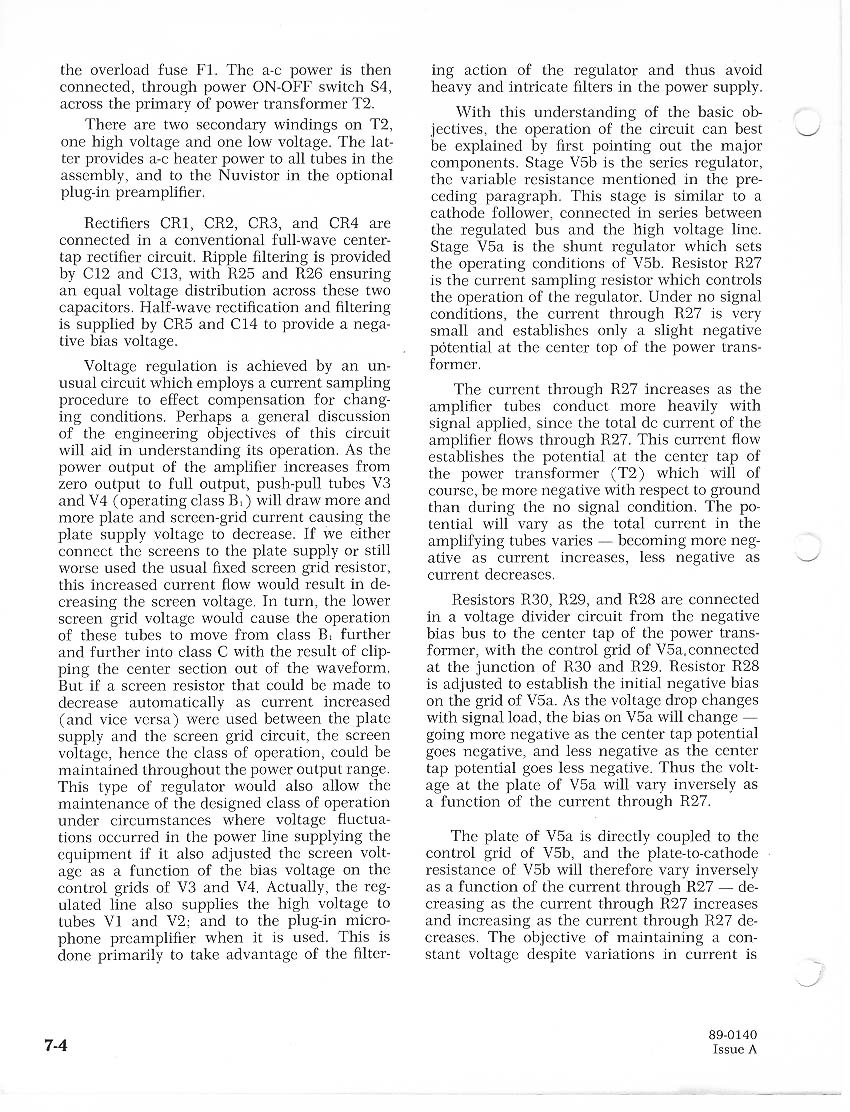

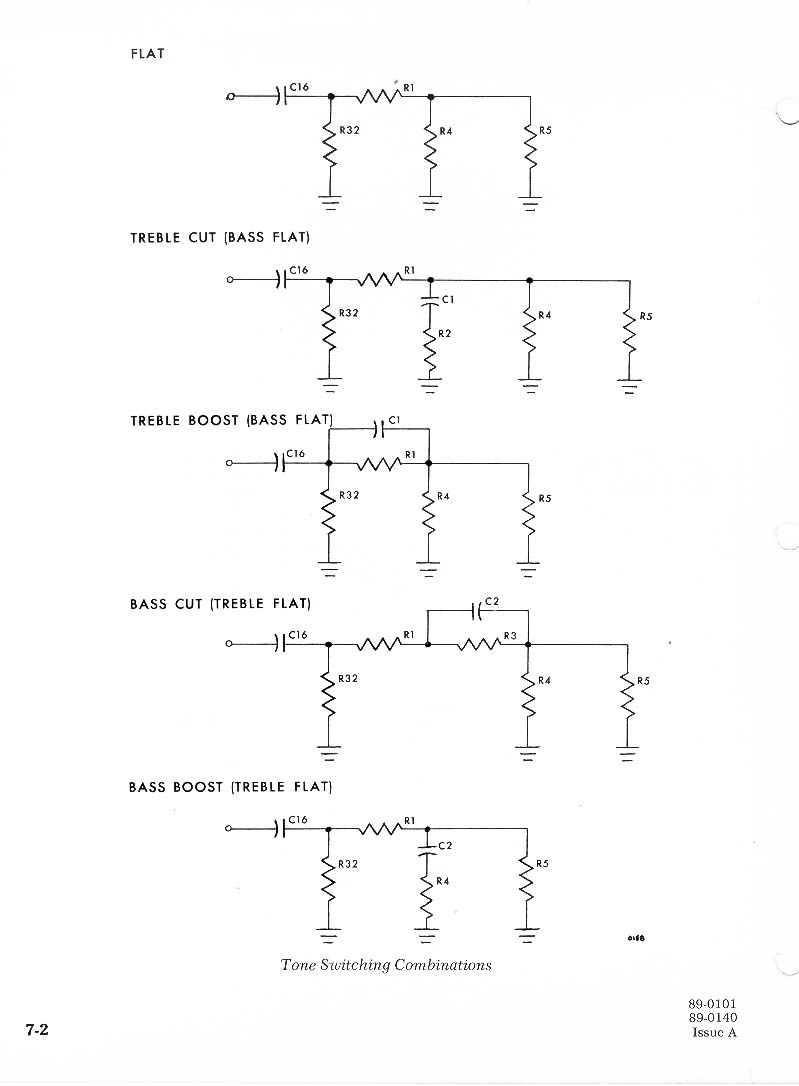

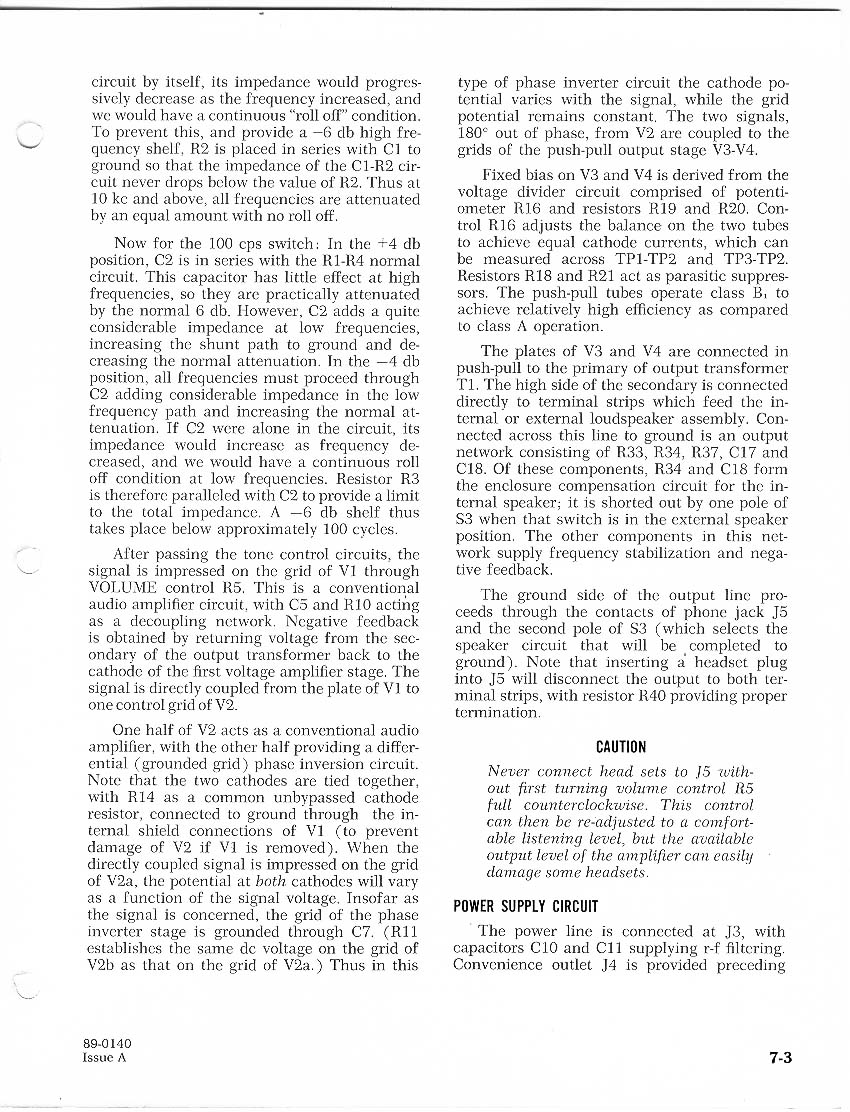

SA-10 Speaker Amplifier



Schematics for Modifications to Ampexes
