7.7 Replacement of DVD Traverse Unit
TOP PREVIOUS NEXT
Carry out (Step 1) - (Step 3) in section 7.1
Carry out (Step 1) - (Step 6) in section 7.2
Step 1 Pull out the FFC at 3 locations.
Step 2 Detach the connector.
Step 3 Detach the DVD loading unit.
Step 4 Remove the top plate.
Step 5 Insert the hexagon driver (gear) into the hole.
Step 6 Turn the hexagon driver clockwise to fully open the disc tray.

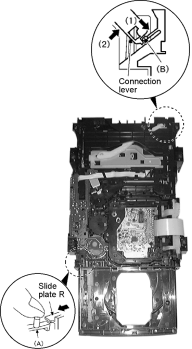

Step 7 When tab (B) is pressed in direction of arrow(1), the connection lever moves in the direction of arrow (2).
Step 8 Turn the hexagon driver clockwise with tab (A) in depressed condition.
Step 10 Let the Main P.C.B. stand up.
