IMPORTANT NOTICE

User Guide

Autodesk® DWF™ Viewer is necessary to view drawings and to activate the functions of this system. Please download and install.

When Windows XP SP2 is used, pop-up windows are limited by the enhanced security function and this sample may not work. In that case, perform the Internet Explorer setting using the following procedure to restore normal operation.

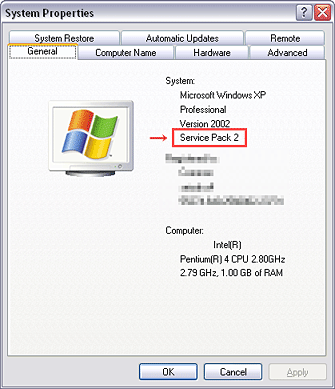

1. Windows version check
   [My Computer (right-click)] - [Properties]

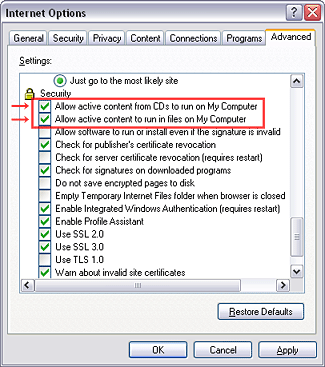

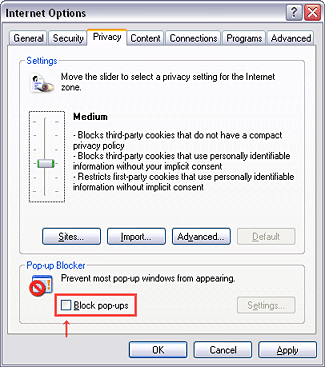

2. Internet Explorer setting
   [Tools] - [Internet Options]





Operating Environment

Note:

In case of using this service manual with network connection, allocate its folder to the client PCs as network drive to avoid any possible malfunction.

Or in case of accessing it through WEB site, the small pop-up window appears at the left bottom corner on the screen whenever searching the location links. This is not malfunction.

Functions Provided on Each Drawing Page

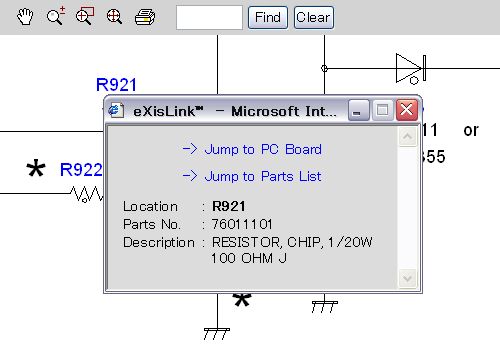

Parts Information Reference Function

When the character string of a part on the drawing is clicked, its information is popped up at the location. You can get any parts information immediately on the screen without referring to the maintenance parts list. 8

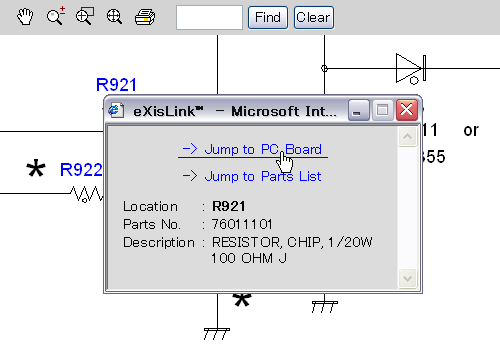

Parts Search Function

You can search any part within the displayed drawing or within the whole schematic diagram/board view by specifying a location number. The pop-up window displayed by clicking a part's character string allows to search the part within the applicable schematic diagram, board view or spare parts list. 8

A circle appears when the part is found, showing the part's location within the drawing. 8

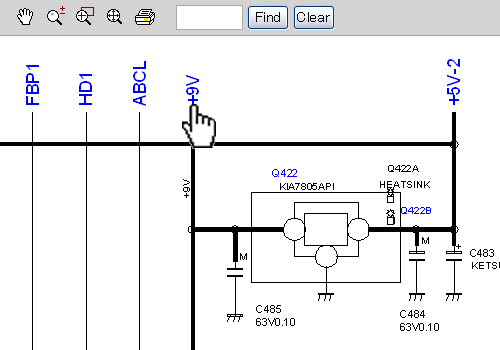

Signal Line/Connector Destination Display Function

When a name at the end of a signal line in a divided schematic diagram is clicked, the destination of the signal is searched and the display changes to the destination. Connecter destinations can also be searched in the same way. 8

When two or more search results are provided, their drawing names are displayed, allowing you to choose a desired drawing to display. 8

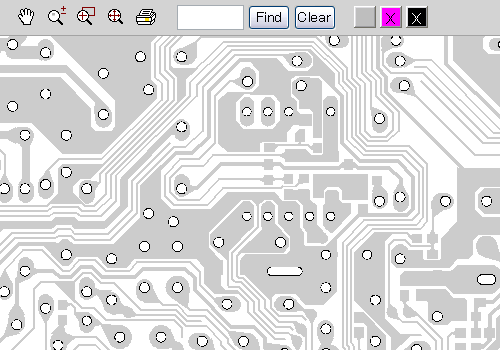

Layer Display Changing Function

When any of the color buttons on the toolbar is clicked, it can be selected to display desired layer in its color or not to display each layer. This allows you to see the pattern layer only by setting other layers to "non-display". 8

PC Board View Pattern Highlighting Function

When a pattern on a board view is clicked, it is highlighted in green. This allows easy pattern tracing. 8

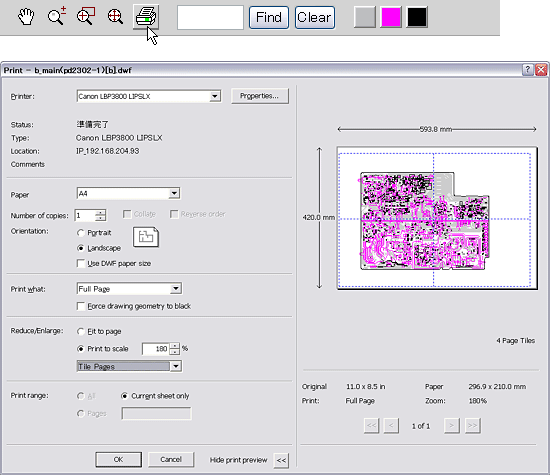

Specified Area Printing Function

The Autodesk DWF Viewer enables to print the displayed drawing region as it is on a printer. It also allows to print a large-sized drawing in multiple pieces (tile printing). 8
