User's Guide

Appendix C. Cable Pinout Diagrams

This appendix specifies Ethernet and null-modem cable pinouts.

Straight-Through 10BASE-T/100BASE-TX Cables

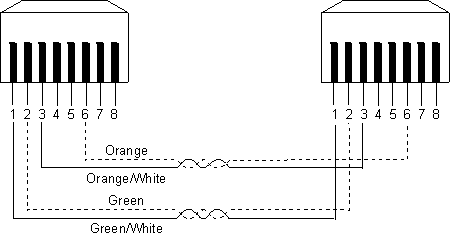

Figure 63. Straight-Through UTP Cable (RJ-45 to RJ-45), T568A

(artname: fgb0a007.EPS)

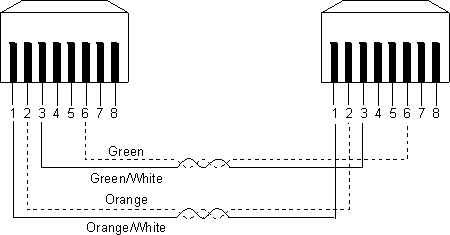

Figure 64. Straight-Through UTP Cable (RJ-45 to RJ-45), T568B

(artname: fgb0a008.EPS)

Straight-Through 10BASE-T/100BASE-TX Cables for STP

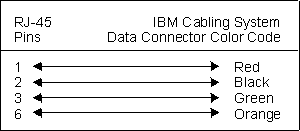

Figure 65. Straight-Through STP Cable (RJ-45 to IBM Data Connector)

(artname: fgb0a009.EPS)

Crossover 10BASE-T/100BASE-TX Cables

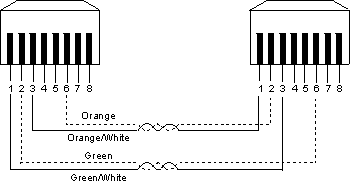

Figure 66. Crossover UTP Cable (RJ-45 to RJ-45), T568A

(artname: fgb0a010.EPS)

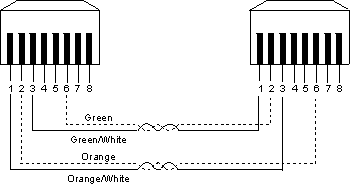

Figure 67. Crossover UTP Cable (RJ-45 to RJ-45), T568B

(artname: fgb0a011.EPS)

Crossover 10BASE-T/100BASE-TX Cables for STP

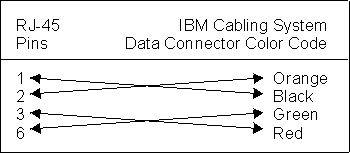

Figure 68. Crossover STP Cable (RJ-45 to IBM Data Connector Crossover)

(artname: fgb0a012.EPS)

EIA-232 Port

Figure 69. Pinout of the EIA-232 Port

(artname: fgb0a014.EPS)

Null-Modem Cables

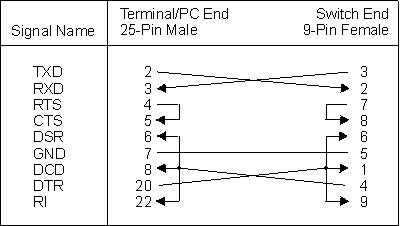

Figure 70. EIA-232 Null Modem Cable for Terminal with 25-Pin Connector

(artname: fgb1a015.EPS)

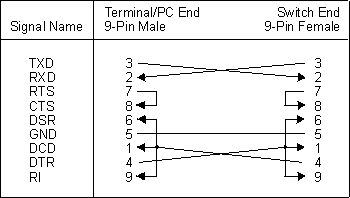

Figure 71. EIA-232 Null Modem Cable for Terminal with 9-Pin Connector

(artname: fgb0a016.EPS)
