Directory Listing of /edt/manual/Hardware/H/Harvwels/r9/

File

Size

Last Modified

.. - Jun 23 2019 05:08:35 AM

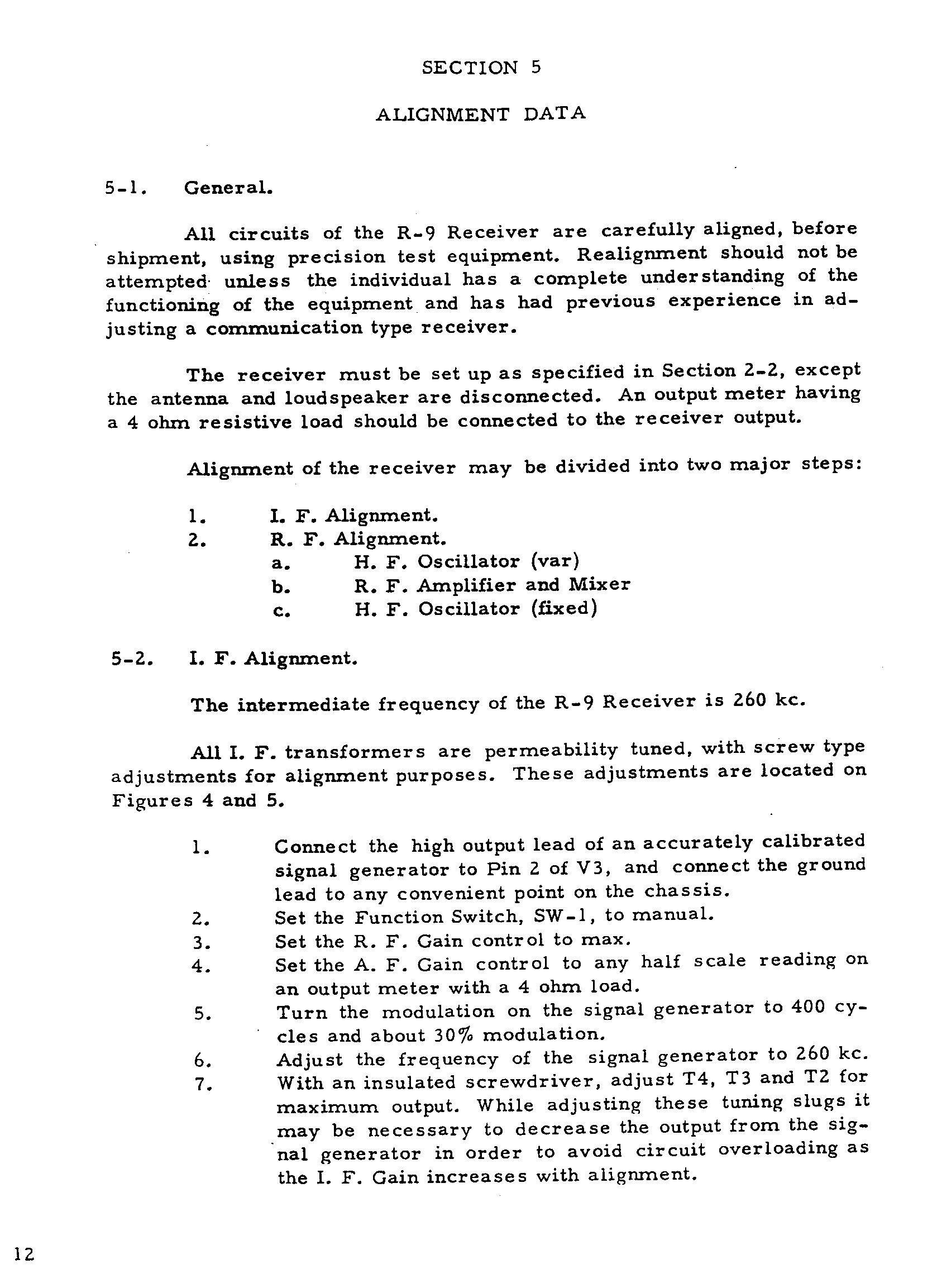

Align1.gif 75KB Feb 23 2003 04:03:40 PM

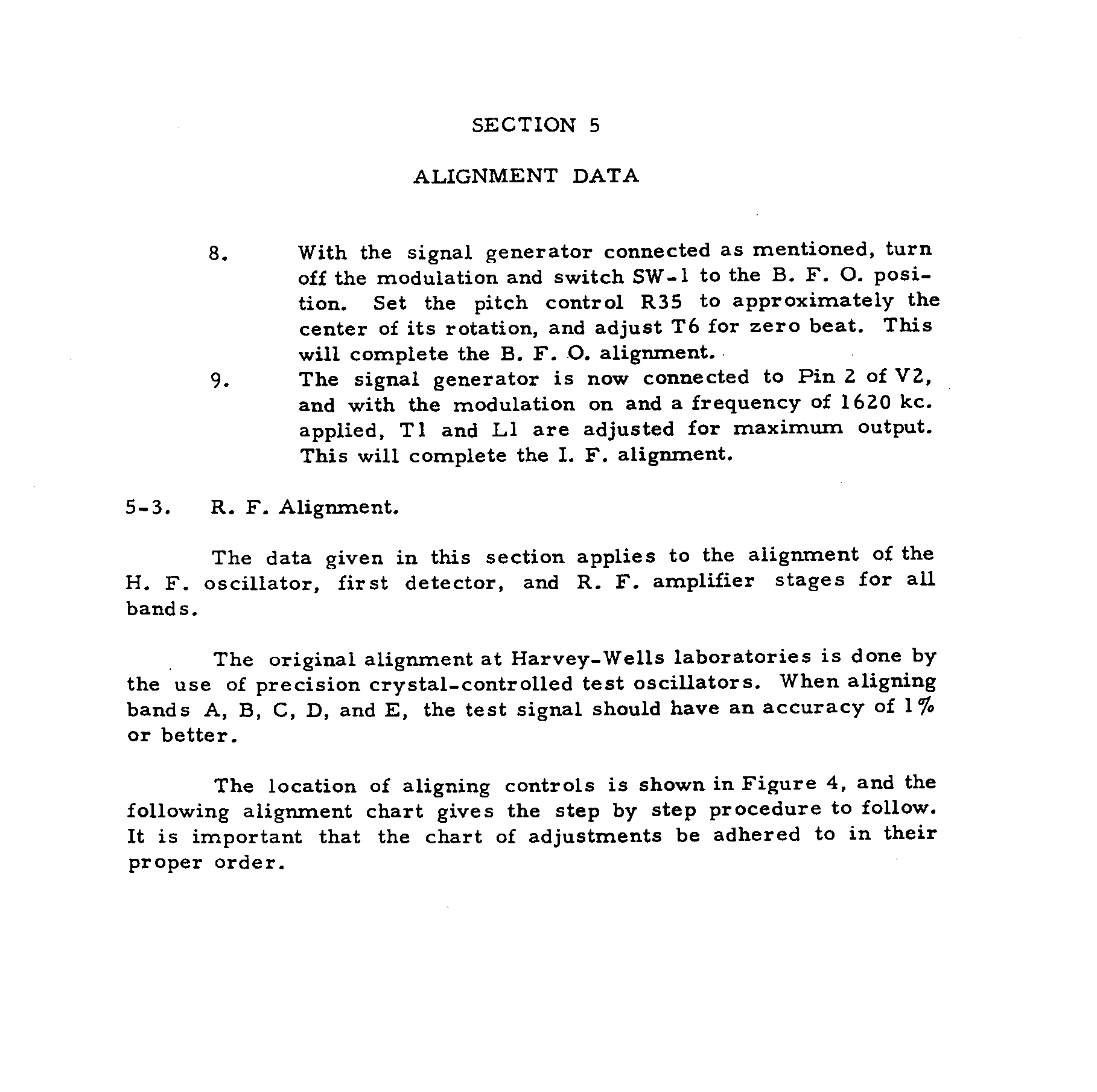

Align2.gif 52KB Feb 23 2003 04:03:50 PM

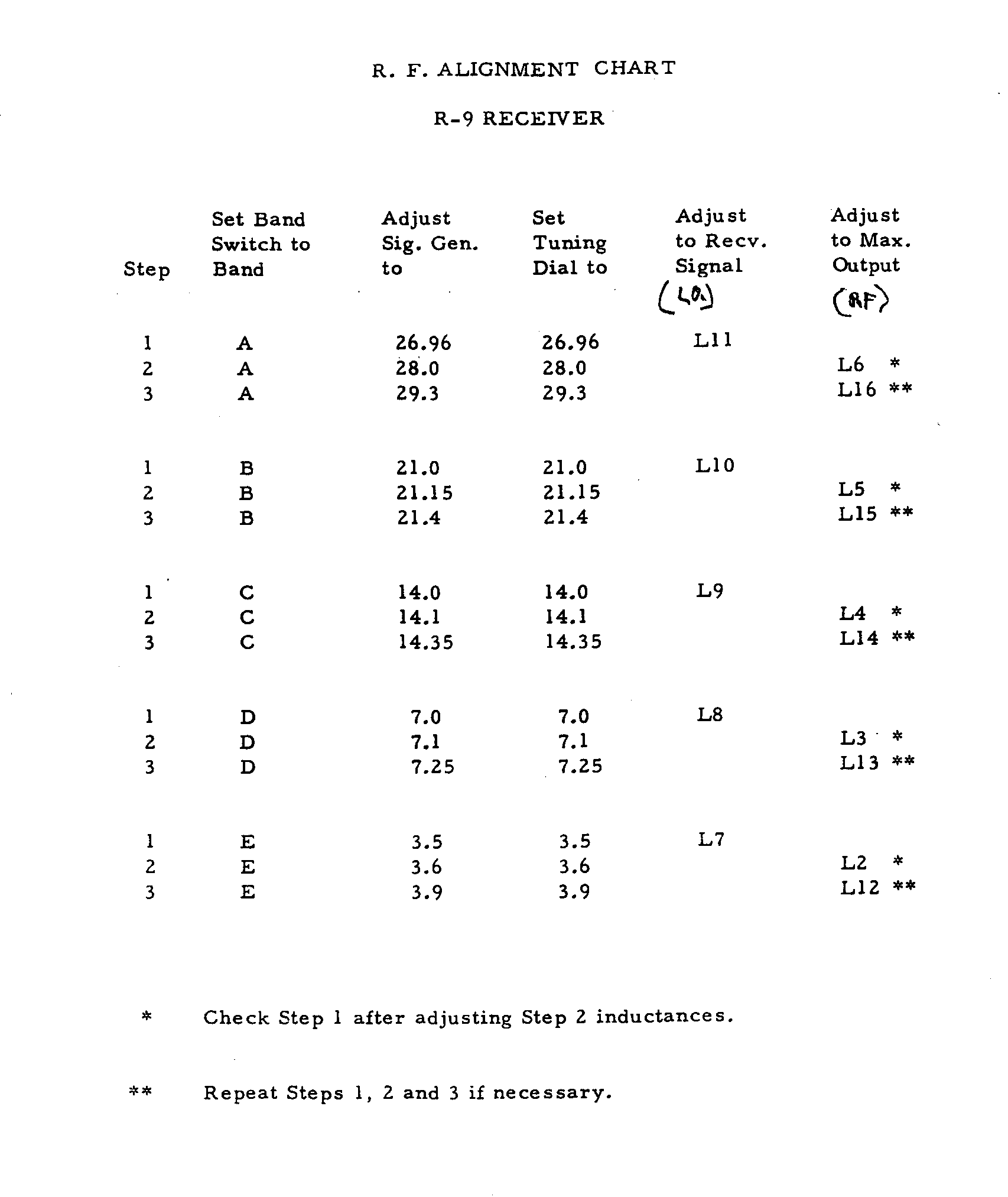

Align3.gif 37KB Feb 23 2003 04:03:58 PM

Cover.gif 79KB Feb 23 2003 04:04:12 PM

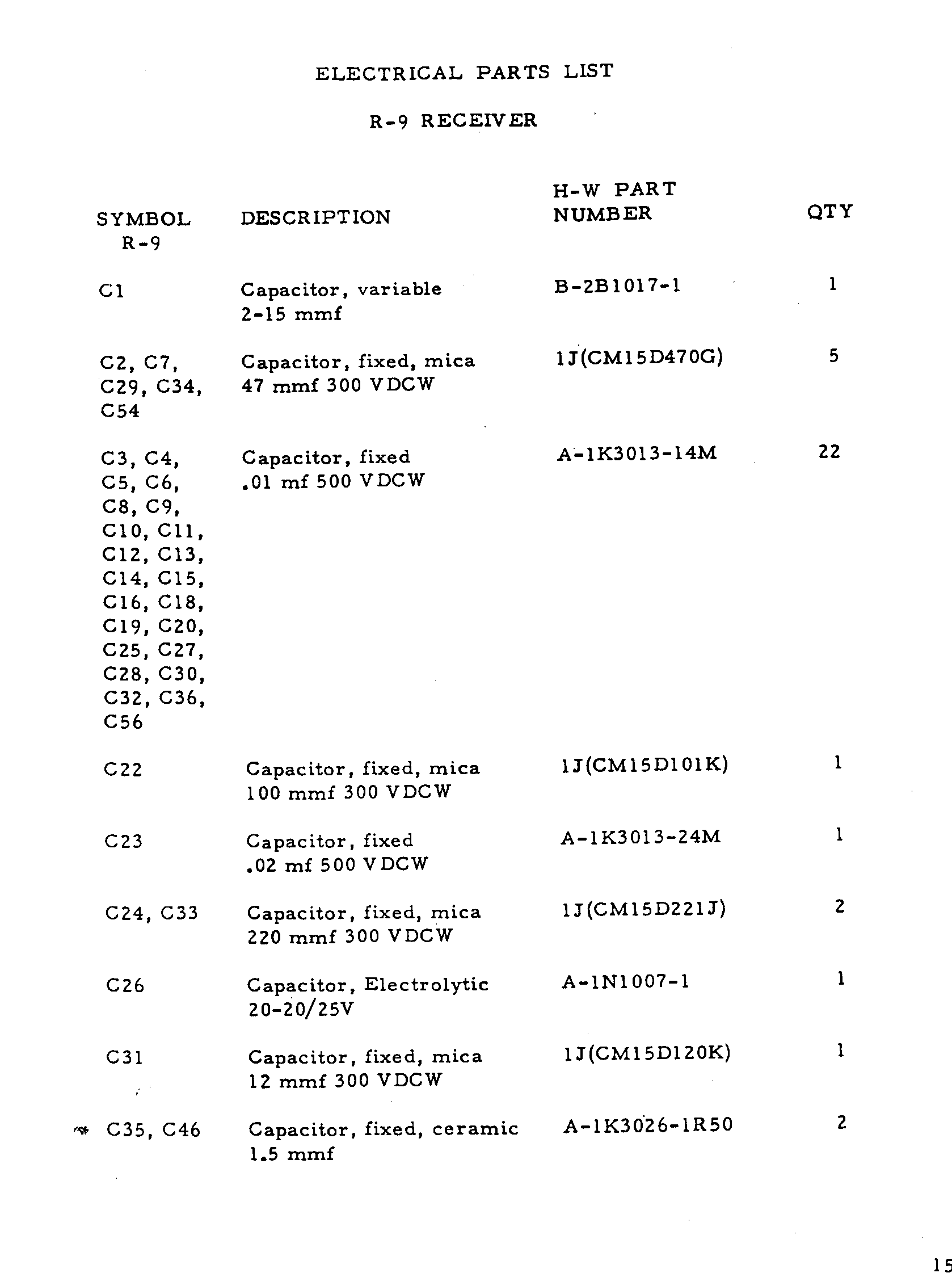

Parts1.gif 36KB Feb 23 2003 04:04:18 PM

Parts2.gif 39KB Feb 23 2003 04:04:28 PM

Parts3.gif 35KB Feb 23 2003 04:04:36 PM

Parts4.gif 41KB Feb 23 2003 04:04:48 PM

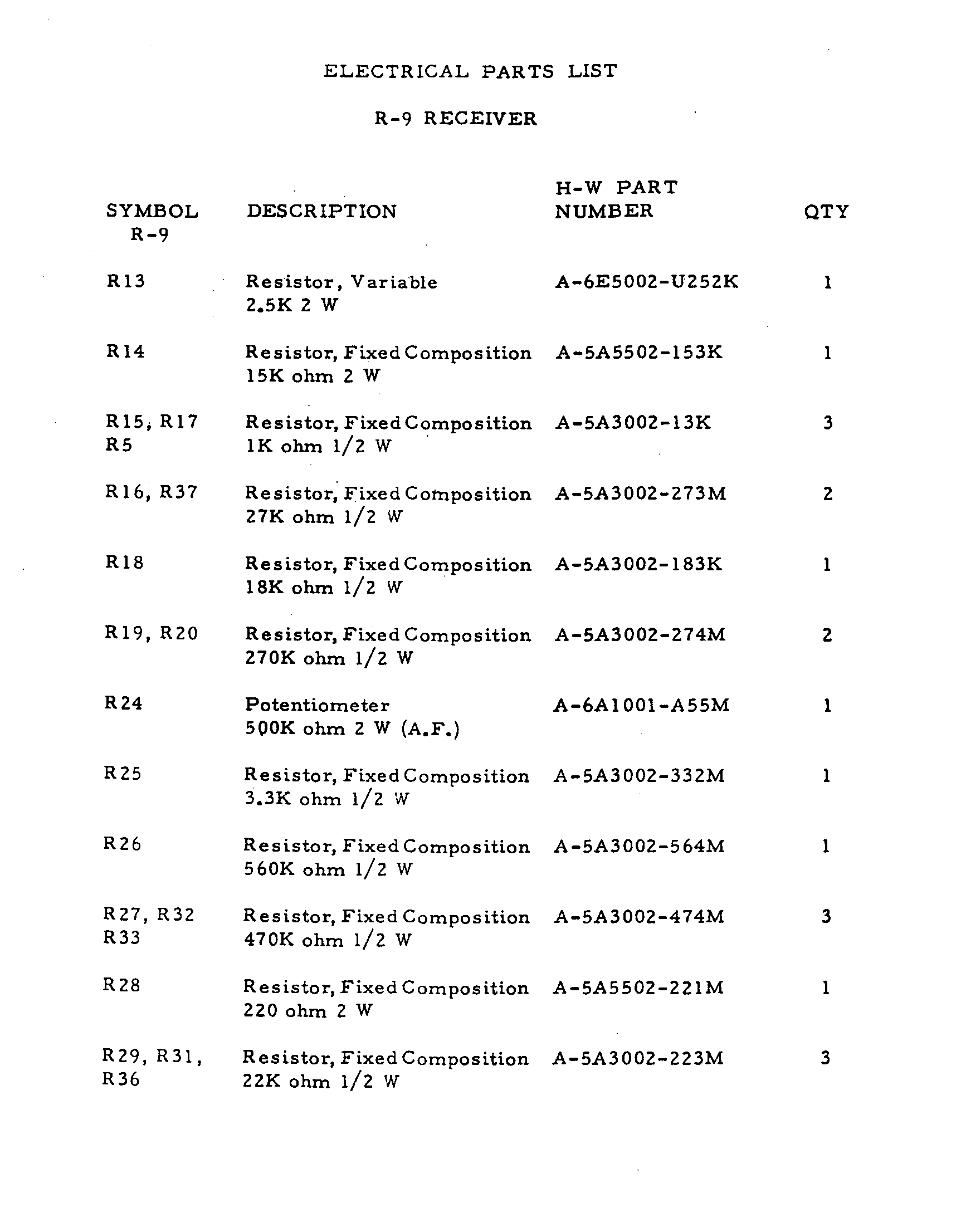

Parts5.gif 42KB Feb 23 2003 04:04:56 PM

Parts6.gif 51KB Feb 23 2003 04:05:08 PM

Parts7.gif 43KB Feb 23 2003 04:05:18 PM

r9-partial.djvu 92KB Jun 20 2003 01:27:18 PM

r9-sch-b.djvu 96KB Jun 20 2003 01:27:32 PM

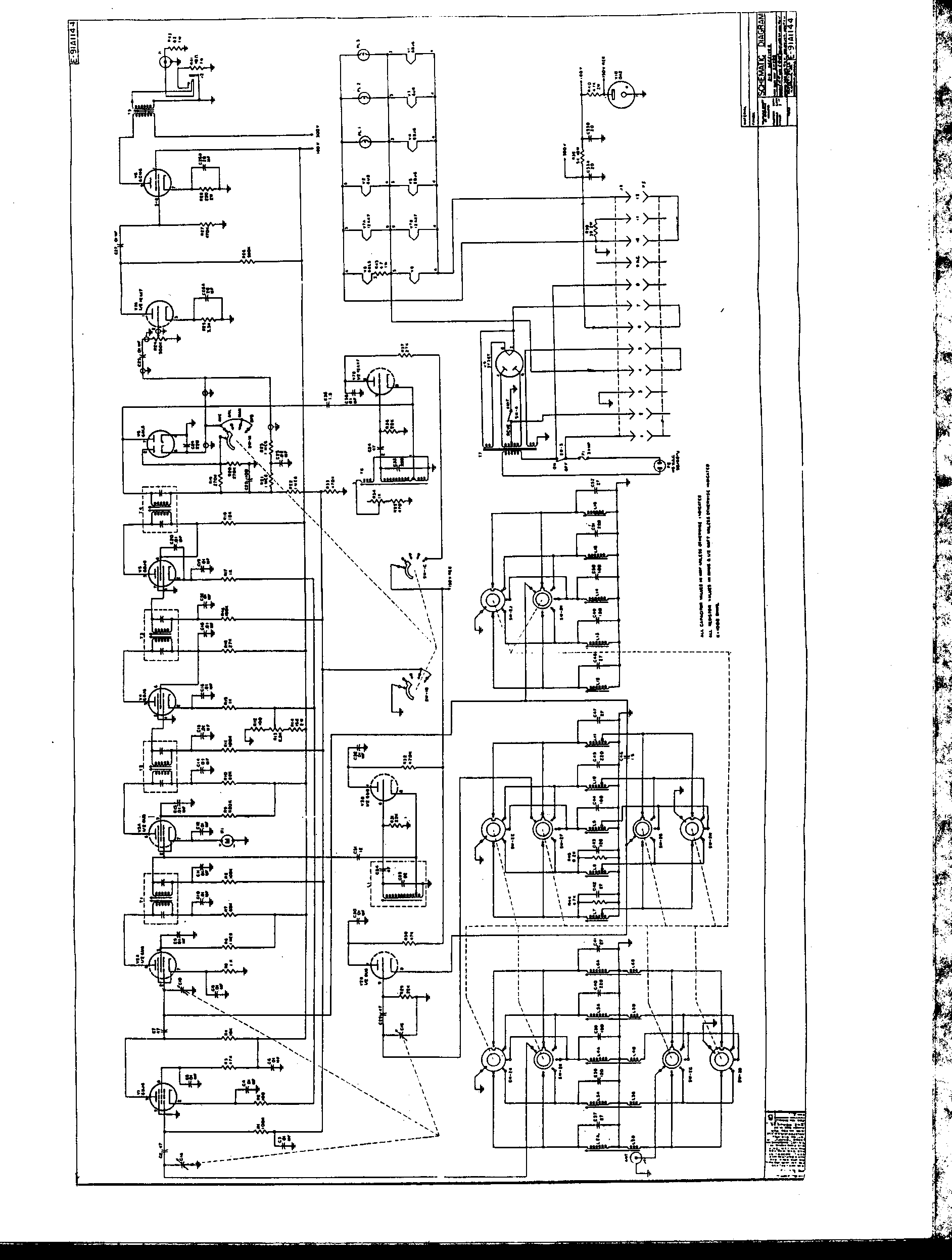

Sch-a.gif 122KB Feb 23 2003 04:05:42 PM

sch-b-1.gif 126KB Feb 23 2003 04:06:12 PM

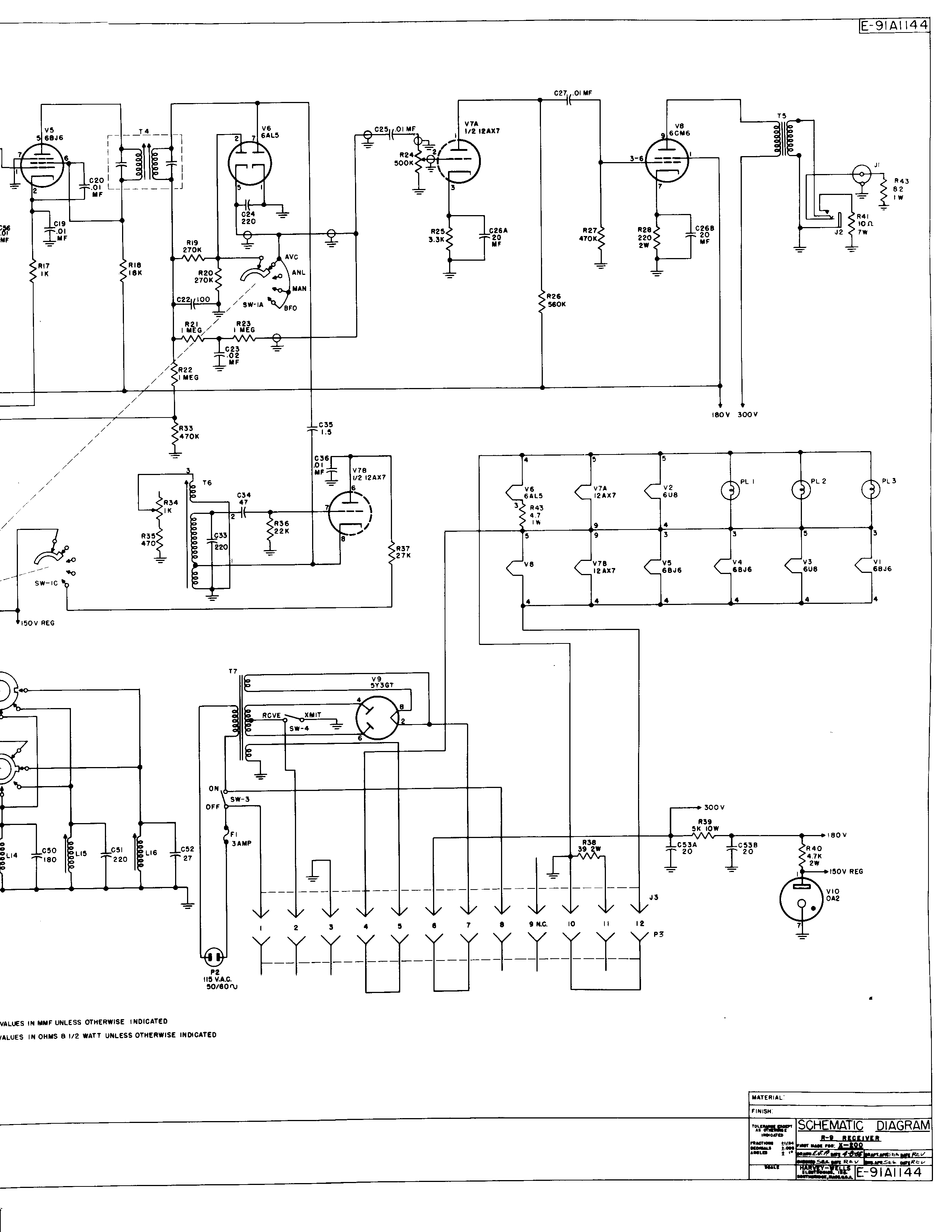

sch-b-2.gif 106KB Feb 23 2003 04:06:28 PM

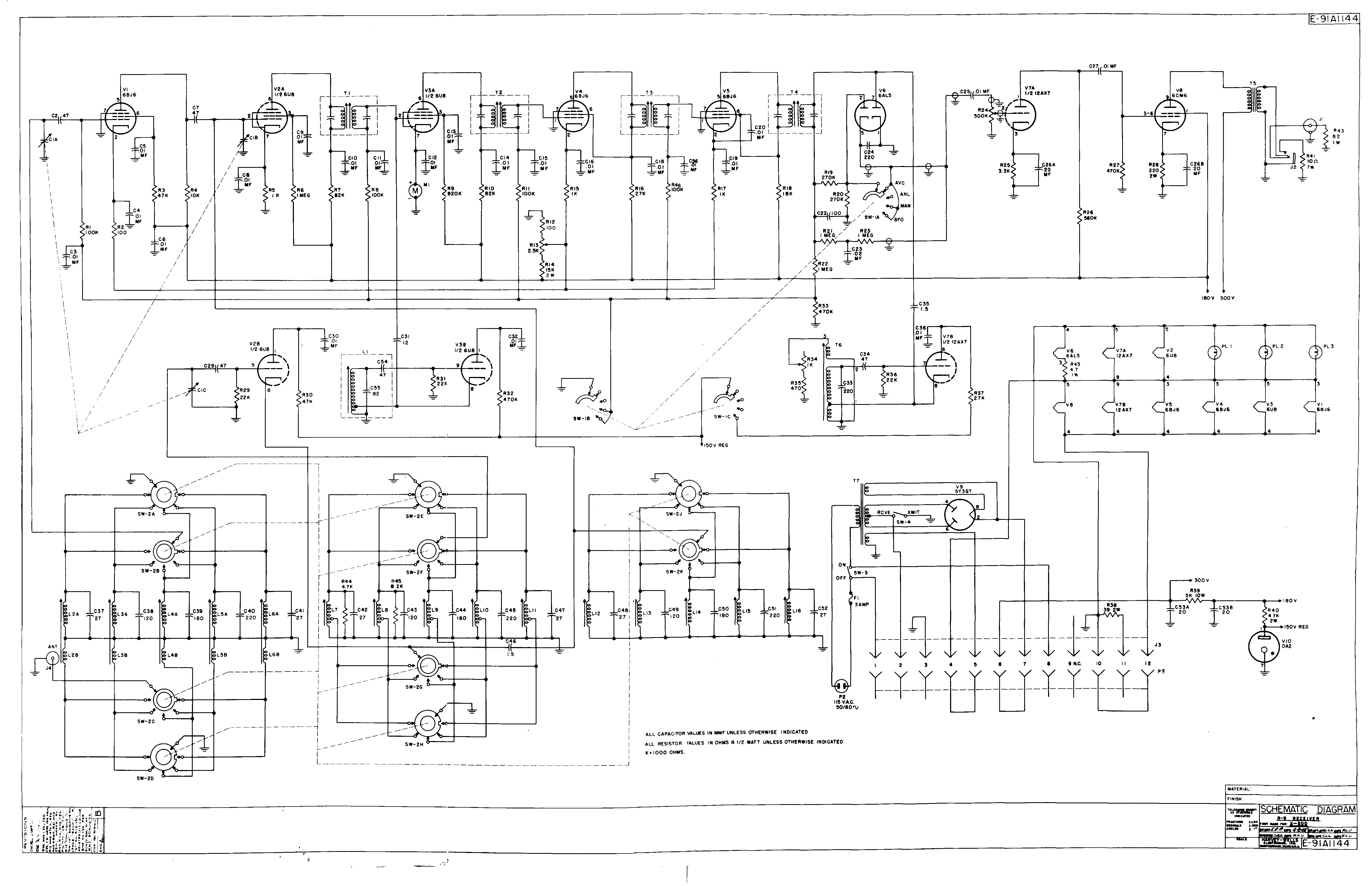

sch-b-full.gif 231KB Feb 23 2003 04:07:12 PM
