Directory Listing of /edt/manual/Hardware/W/Wavetek/Product/AR/Module Data/M1H/

Folder.. - Jun 23 2019 03:19:19 PM

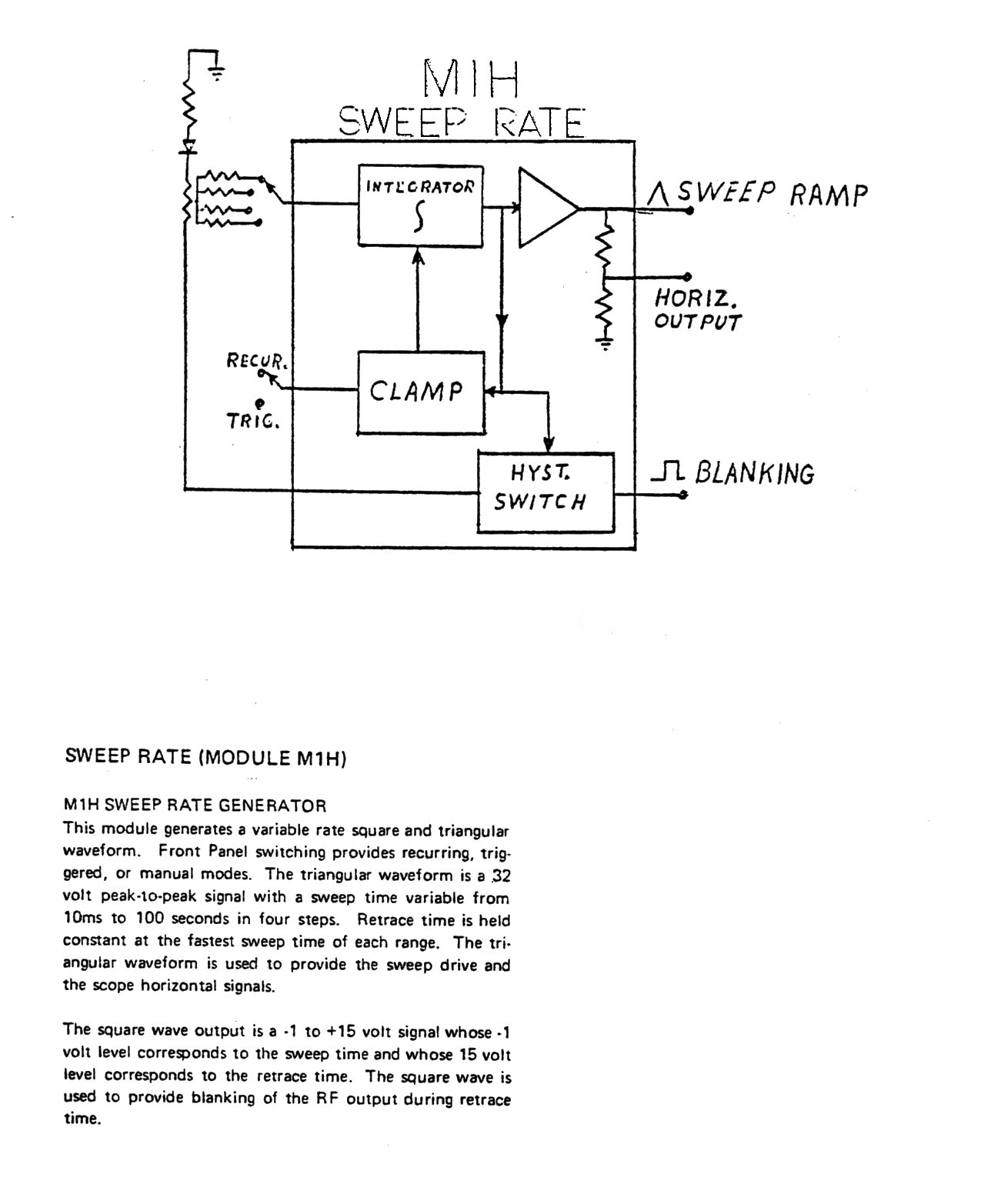

M1H Circuit Description.jpgM1H Circuit Description.jpg 150KB Jan 23 2010 11:47:22 PMM1H Circuit Description.jpg

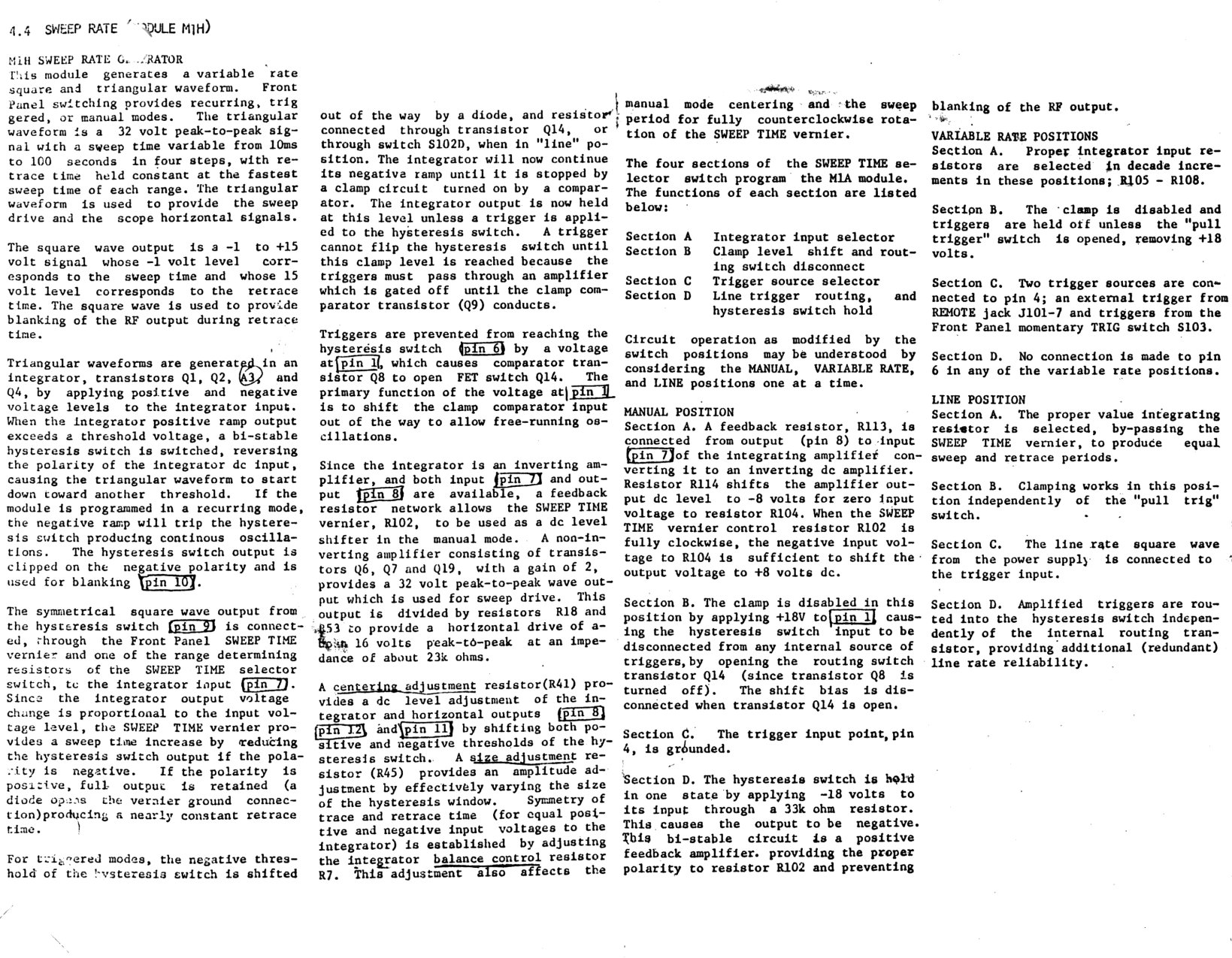

M1H Circuit Operation.jpgM1H Circuit Operation.jpg 551KB Jan 23 2010 11:49:36 PMM1H Circuit Operation.jpg

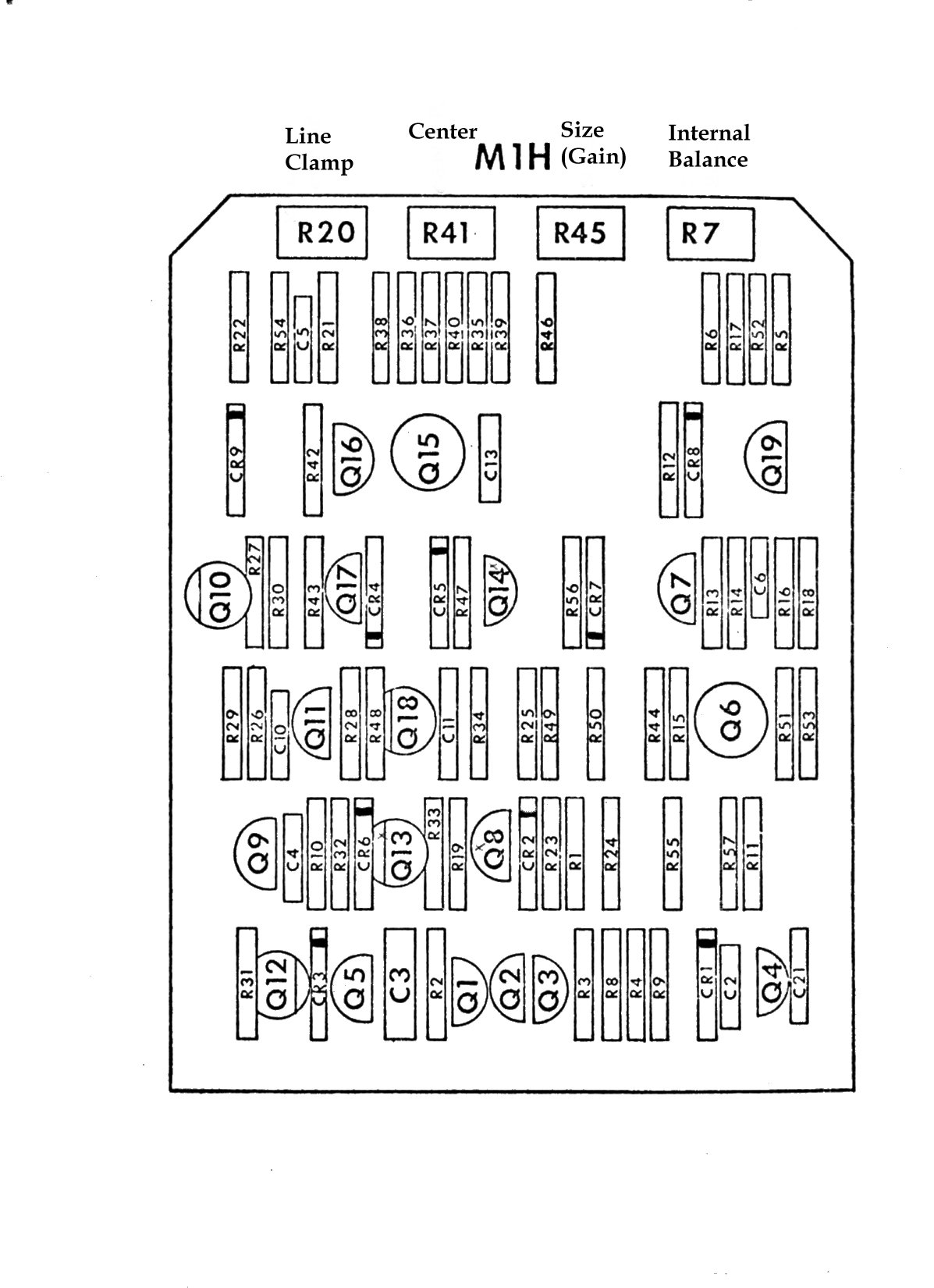

M1H Component Locator.jpgM1H Component Locator.jpg 197KB Jan 23 2010 11:55:28 PMM1H Component Locator.jpg

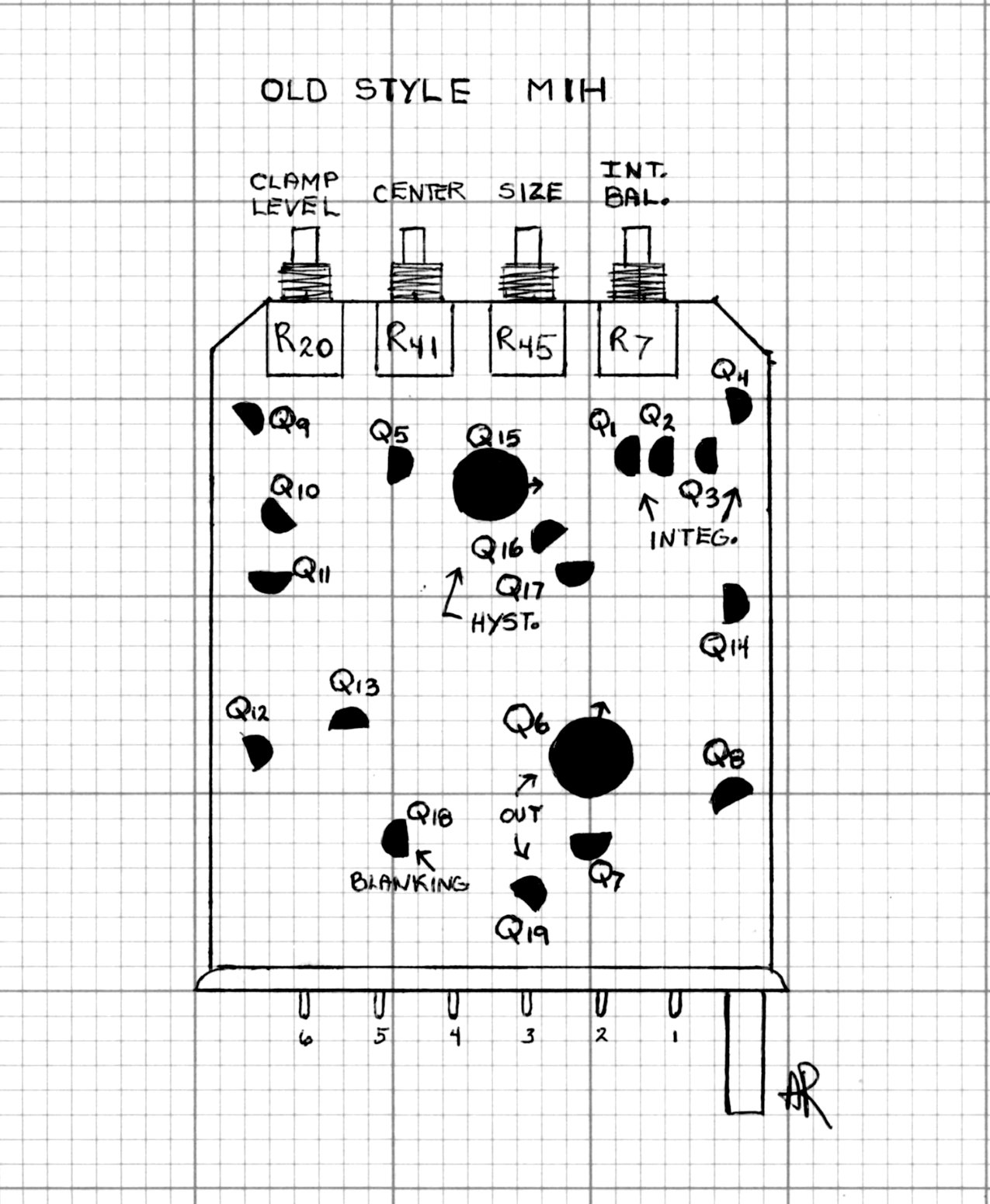

M1H old style Component Locator.jpgM1H old style Component Locator.jpg 248KB Jan 23 2010 11:58:00 PMM1H old style Component Locator.jpg

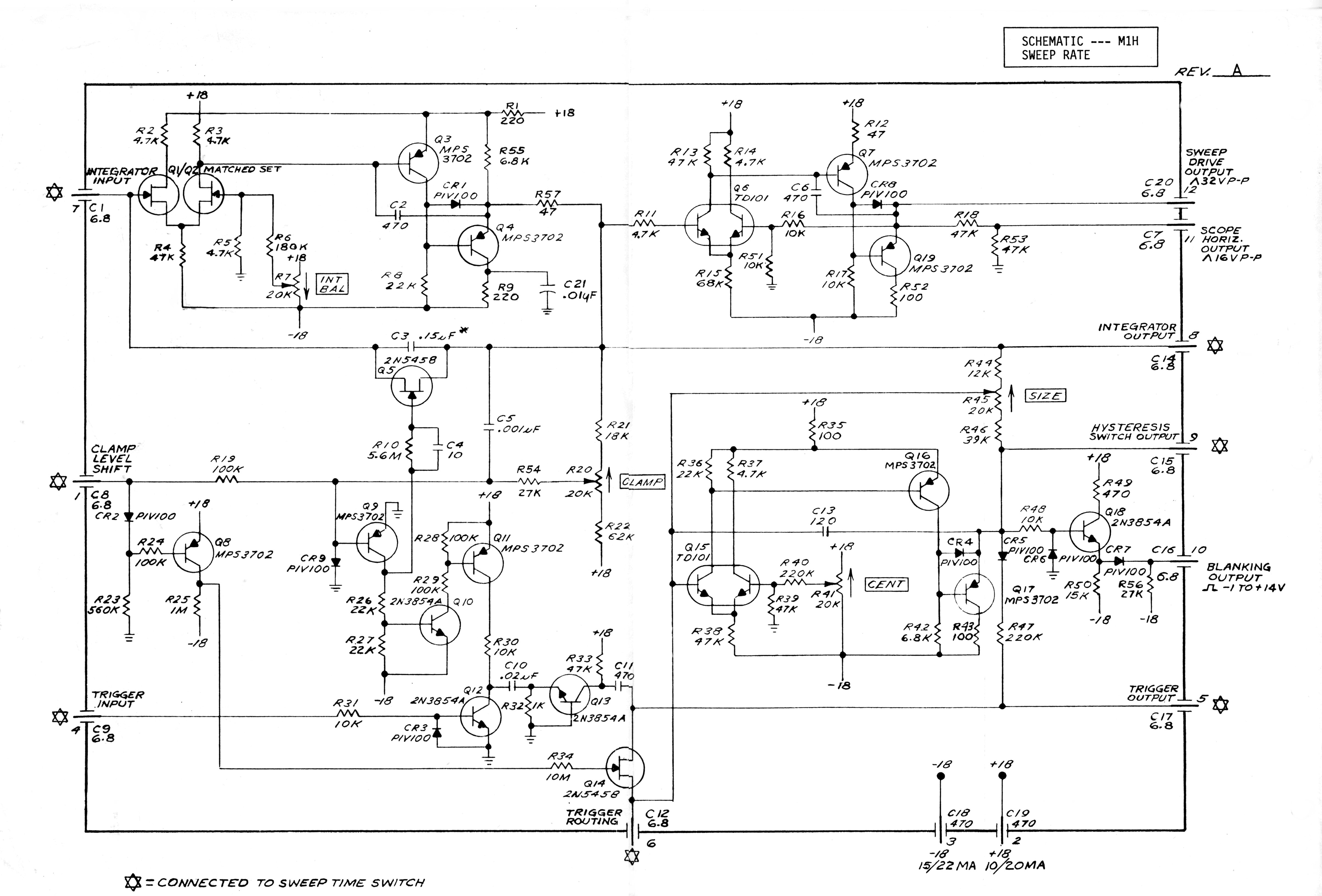

M1H Rev A Schematic.jpgM1H Rev A Schematic.jpg 923KB Jan 22 2010 11:58:40 PMM1H Rev A Schematic.jpg

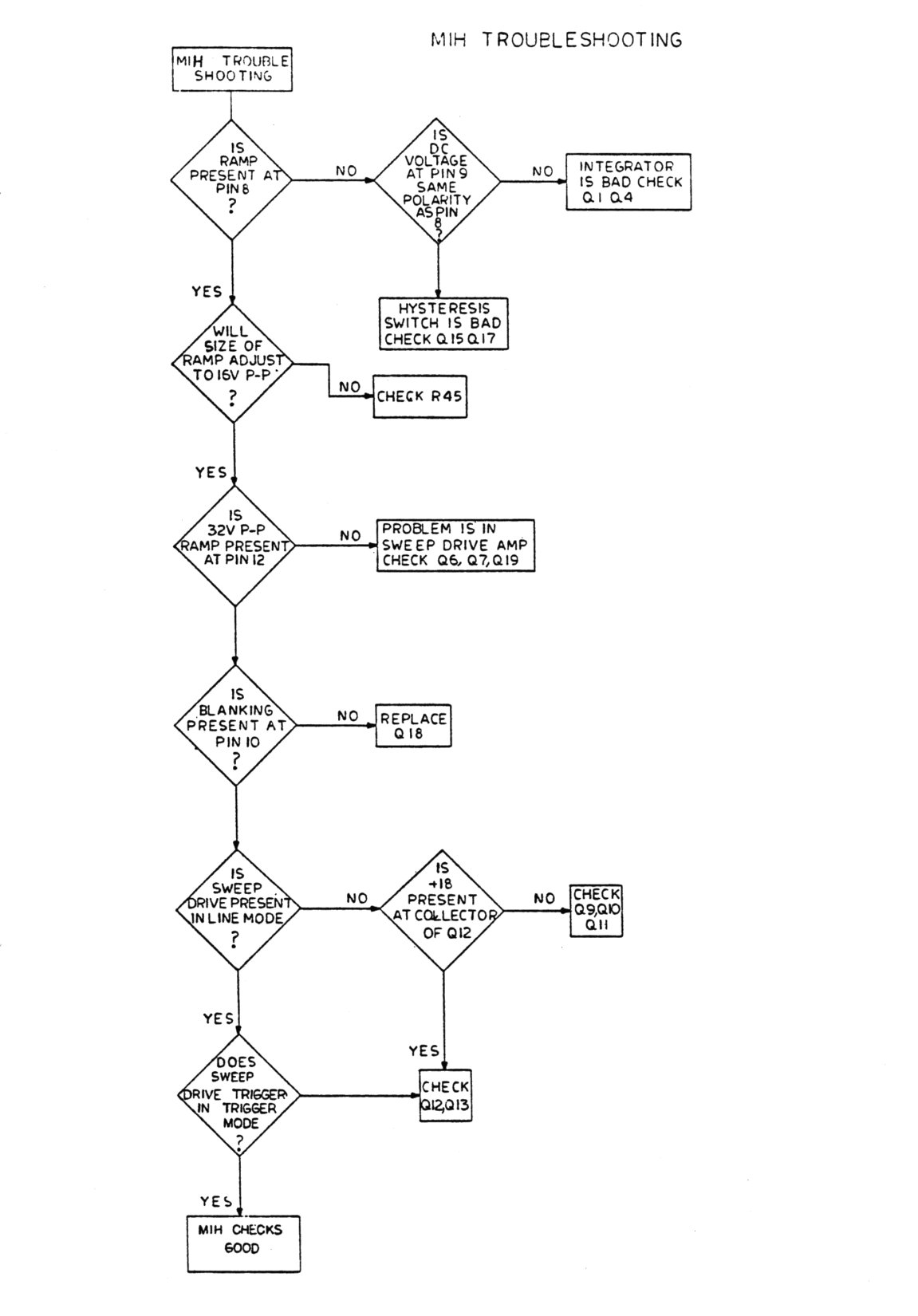

M1H Troubleshooting Diagram.jpgM1H Troubleshooting Diagram.jpg 103KB Jan 24 2010 12:04:08 AMM1H Troubleshooting Diagram.jpg
