Directory Listing of /edt/manual/Hardware/Y/Yaesu/FT-102/gif/

File

Size

Last Modified

.. - Dec 25 2019 10:47:07 AM

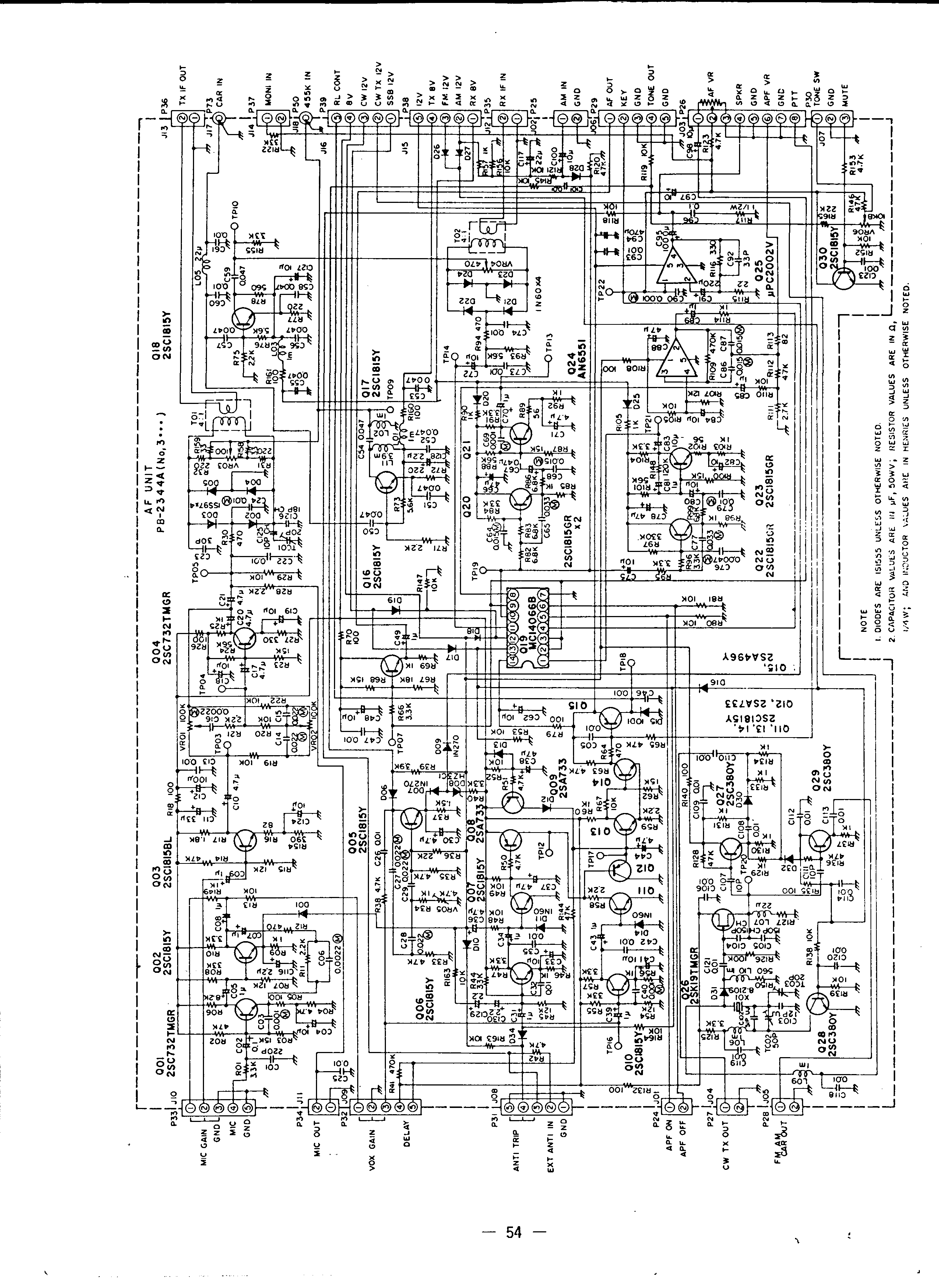

AF Unit.gif 256KB Jun 24 2003 10:20:33 PM

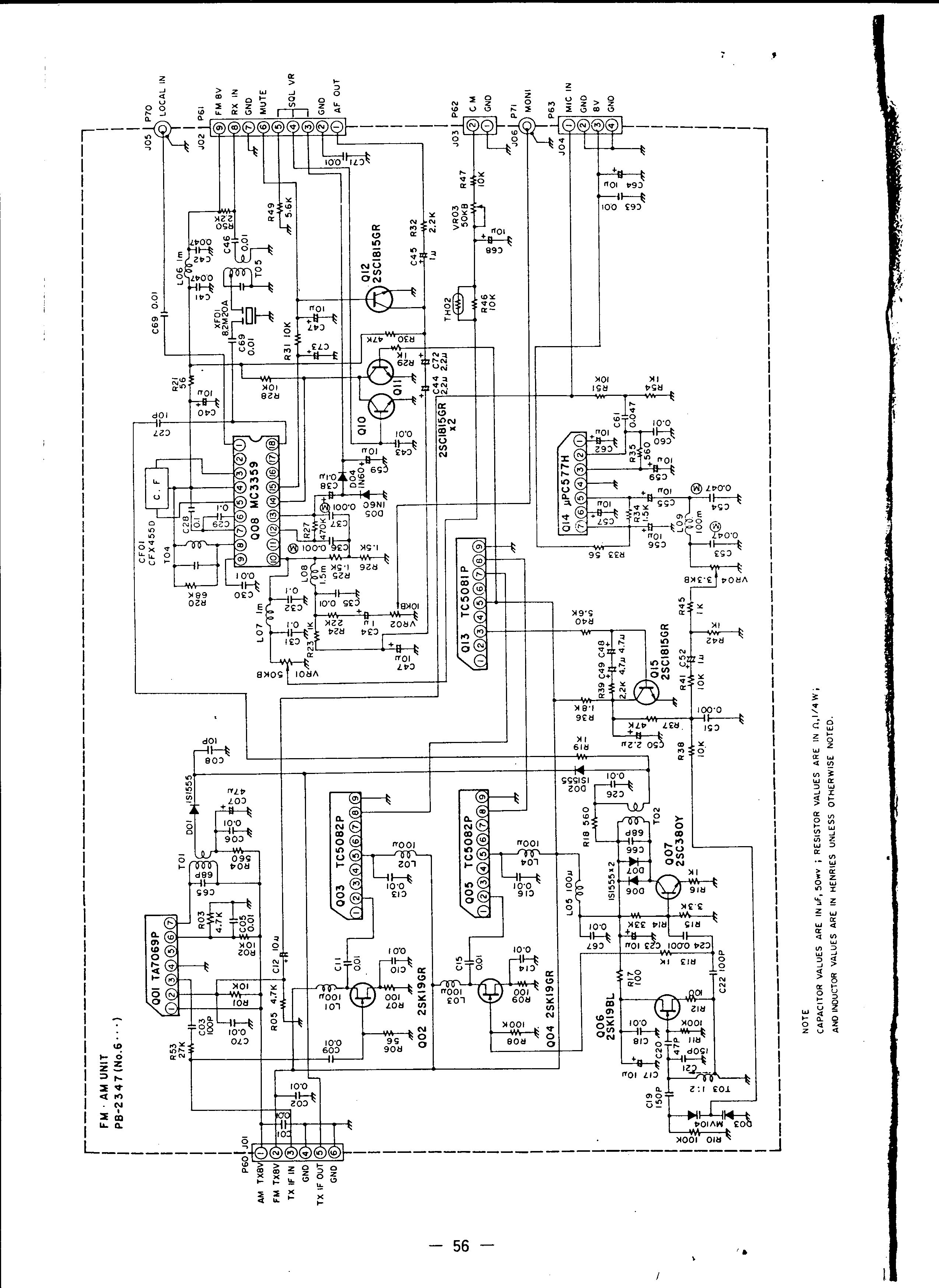

AM, FM Unit.gif 170KB Jun 24 2003 10:20:34 PM

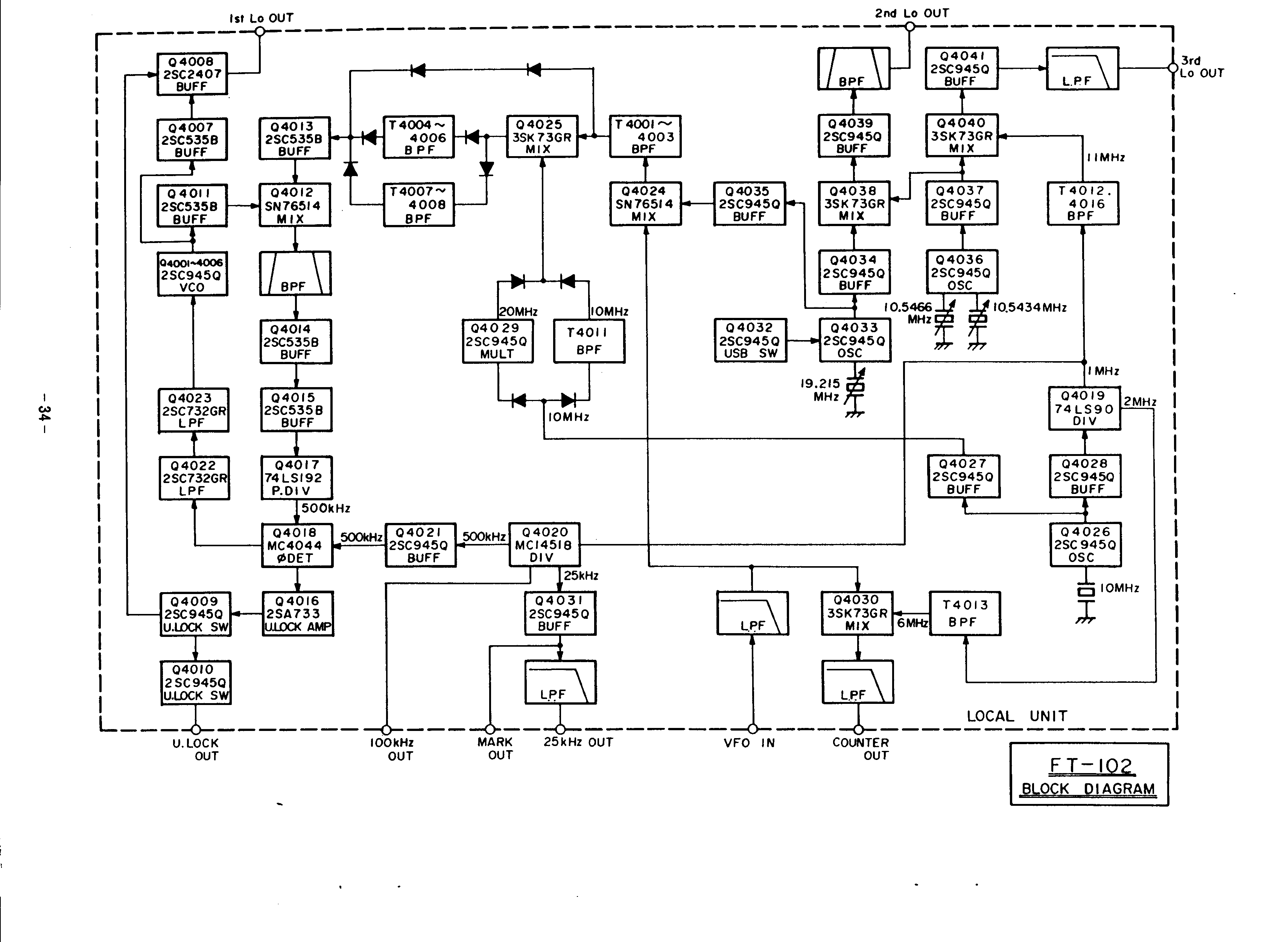

Block Diagram - LO.gif 124KB Jun 24 2003 10:20:36 PM

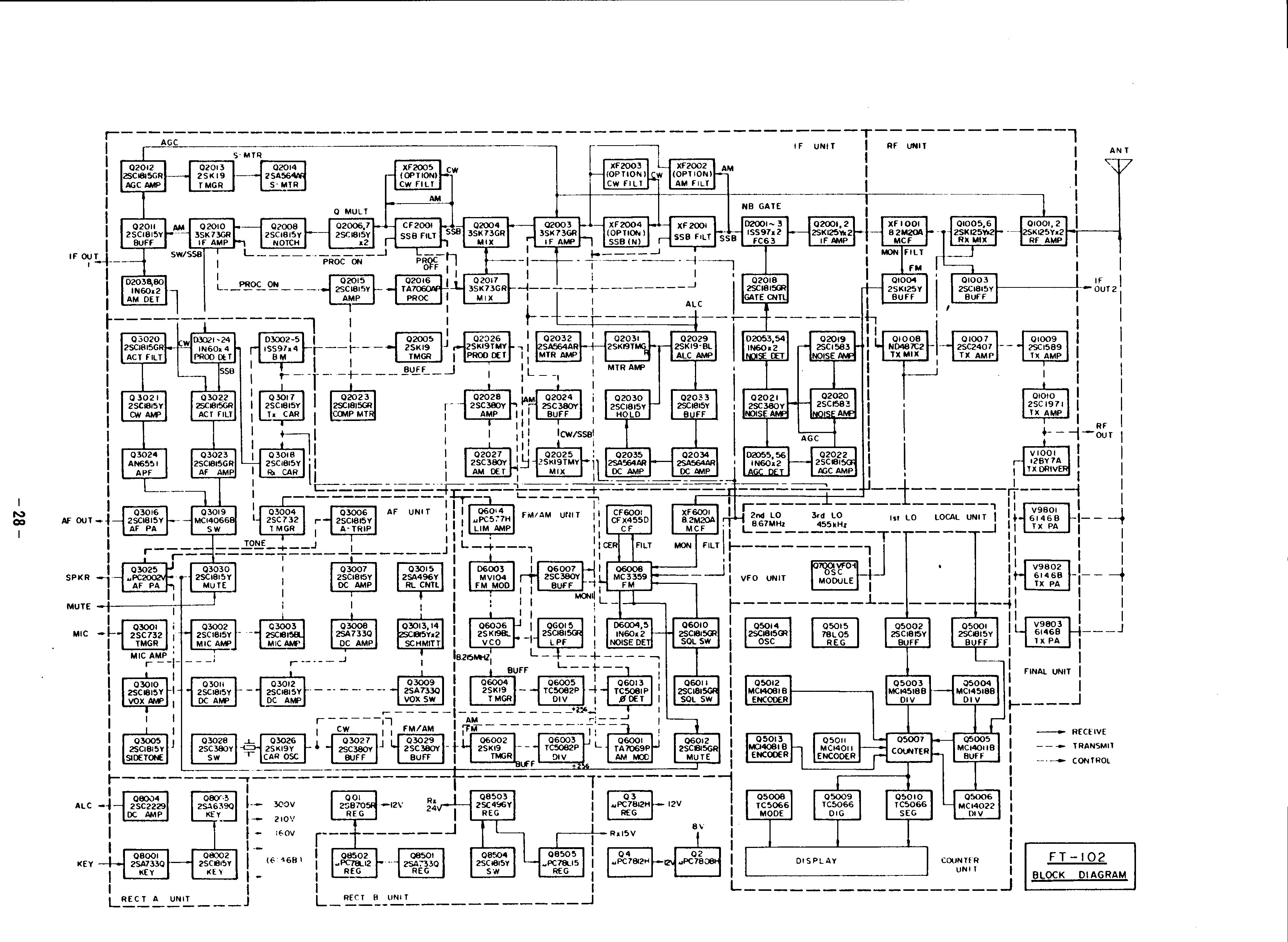

Block Diagram.gif 183KB Jun 24 2003 10:20:37 PM

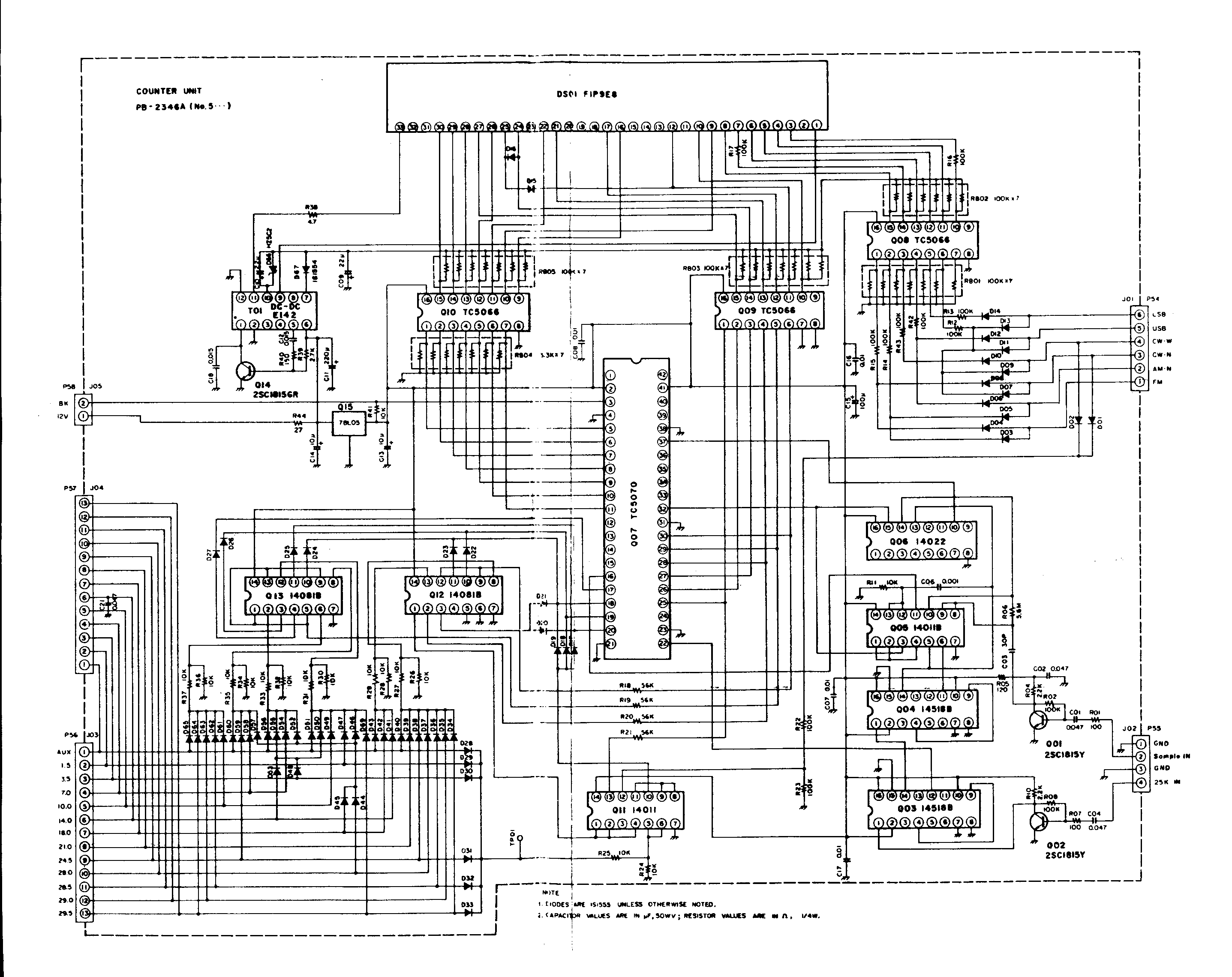

Counter Unit.gif 163KB Jun 24 2003 10:20:38 PM

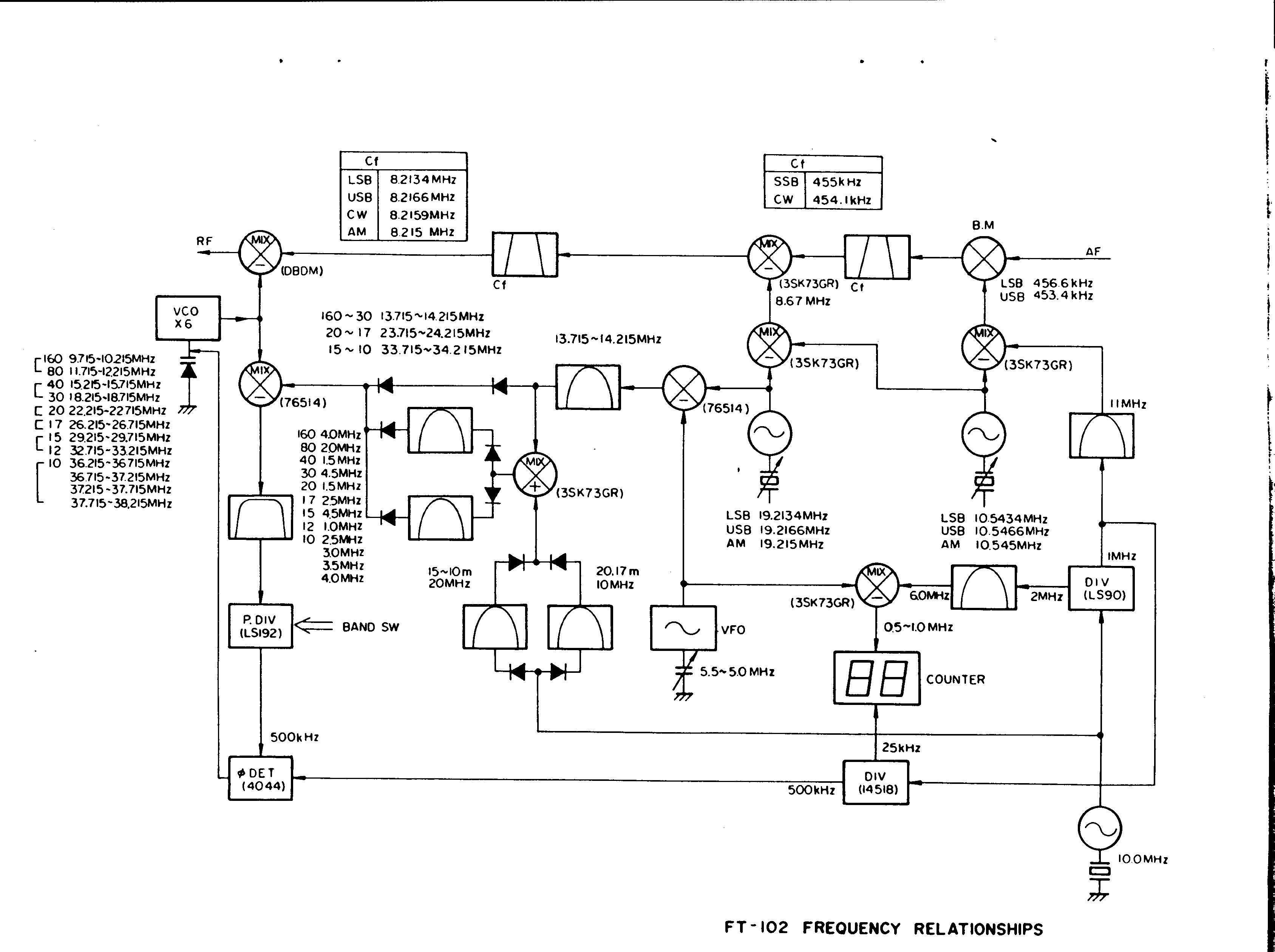

Frequency Relationships.gif 102KB Jun 24 2003 10:20:39 PM

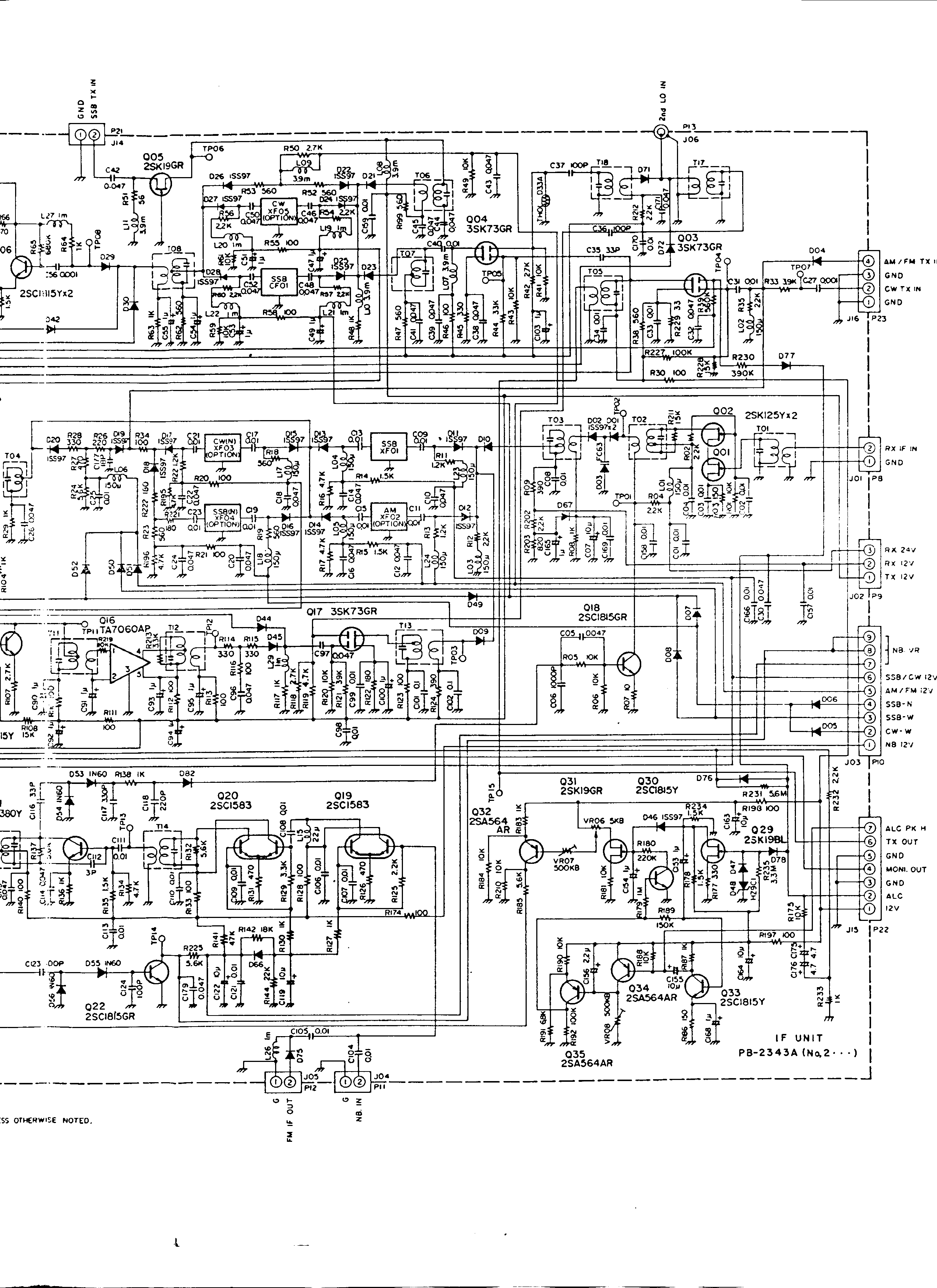

IF unit pt.2.gif 214KB Jun 24 2003 10:20:41 PM

IF unit pt1.gif 212KB Jun 24 2003 10:20:42 PM

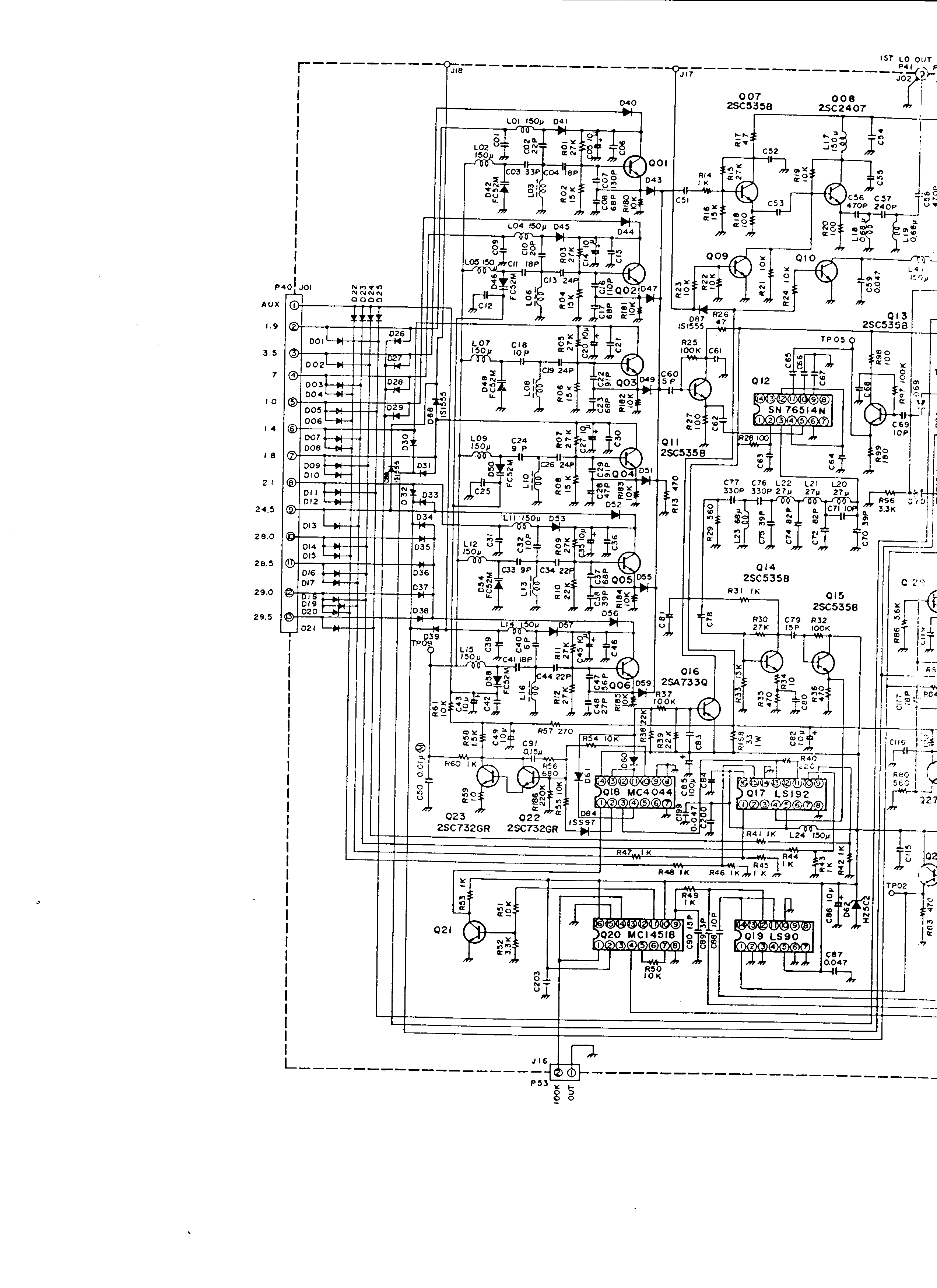

Local Unit pt1.gif 182KB Jun 24 2003 10:20:44 PM

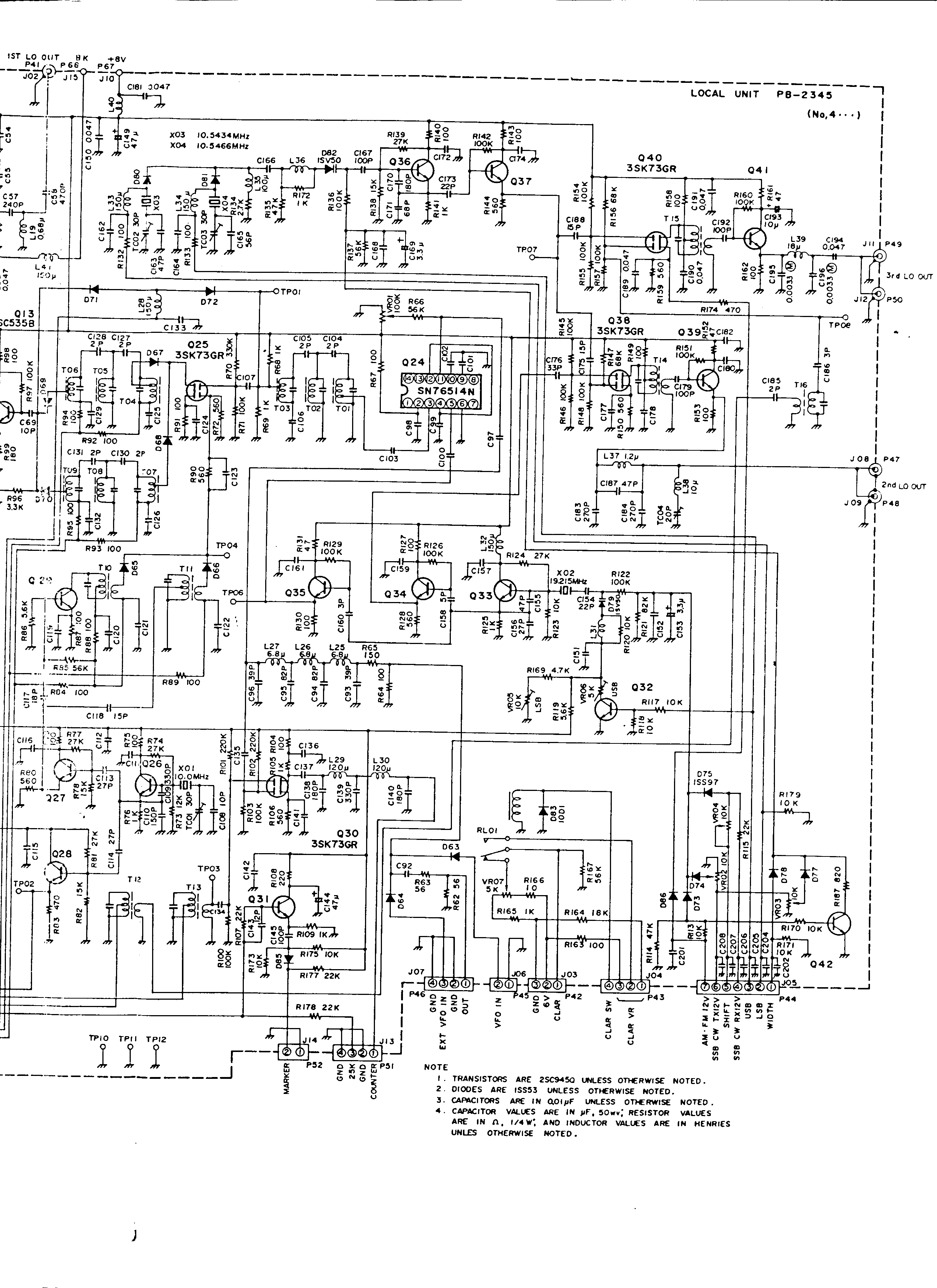

Local Unit pt2.gif 206KB Jun 24 2003 10:20:45 PM

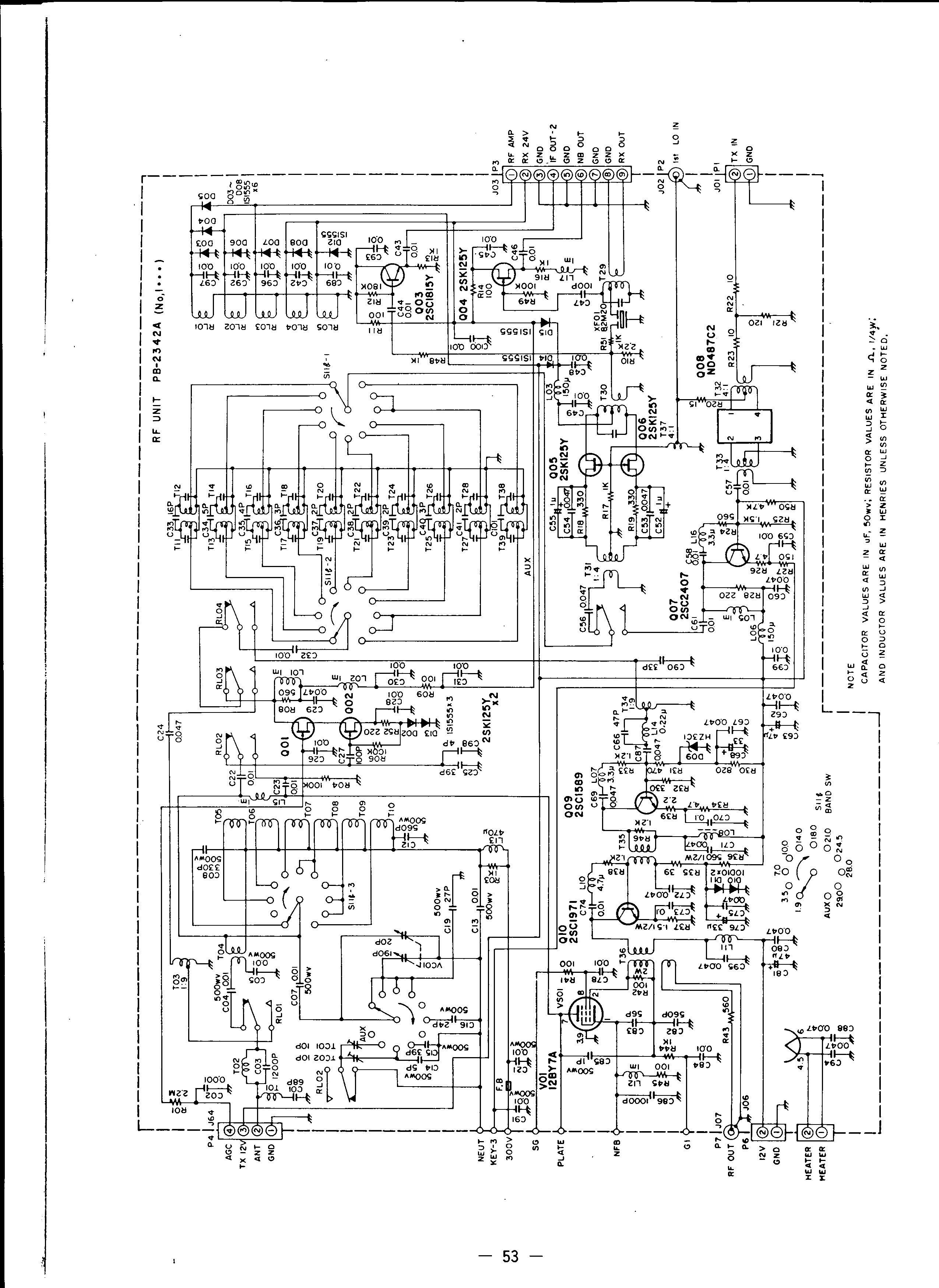

RF Unit.gif 189KB Jun 24 2003 10:20:47 PM

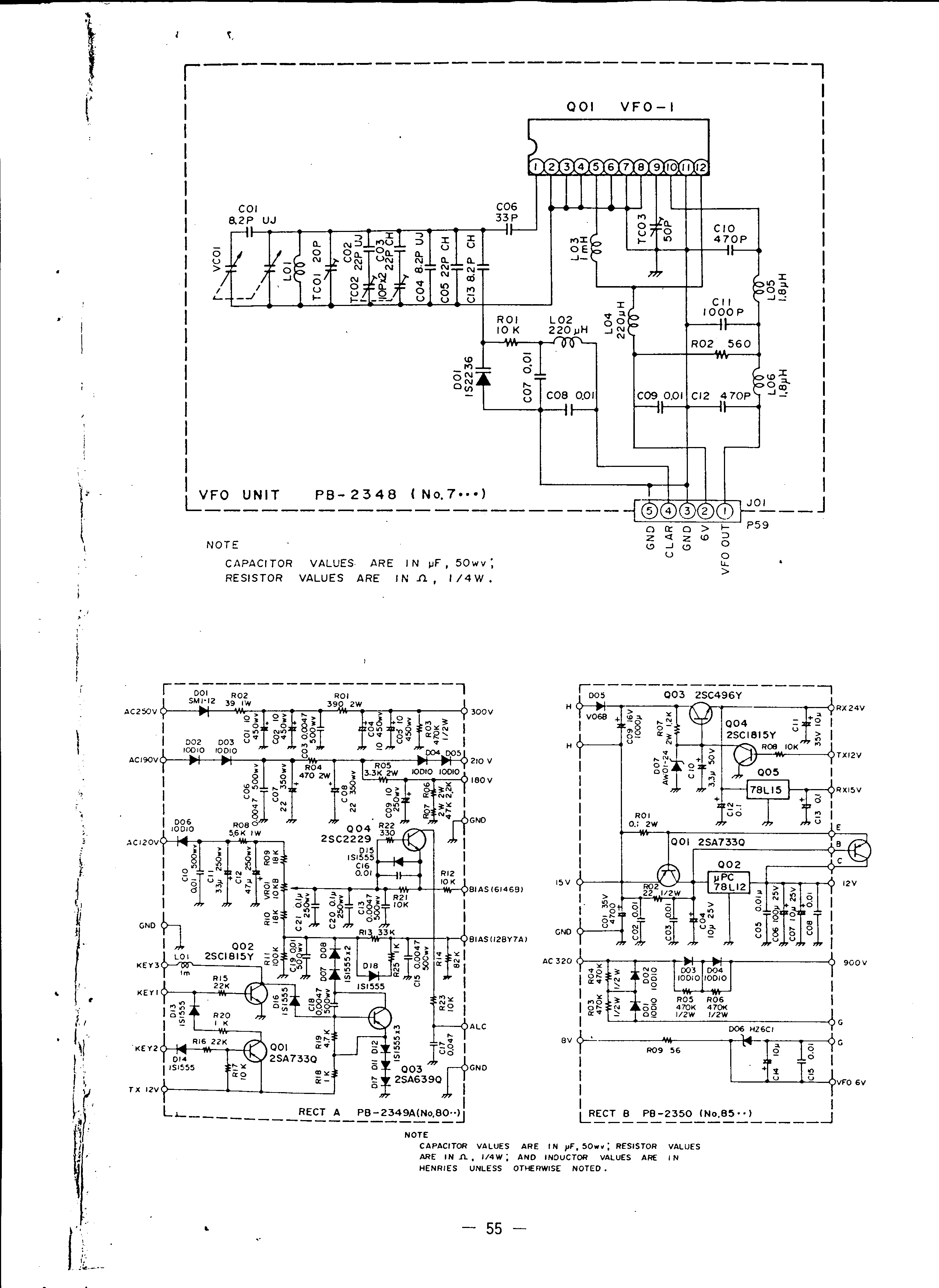

VFO, Rect A and Rect B Units.gif 132KB Jun 24 2003 10:20:48 PM

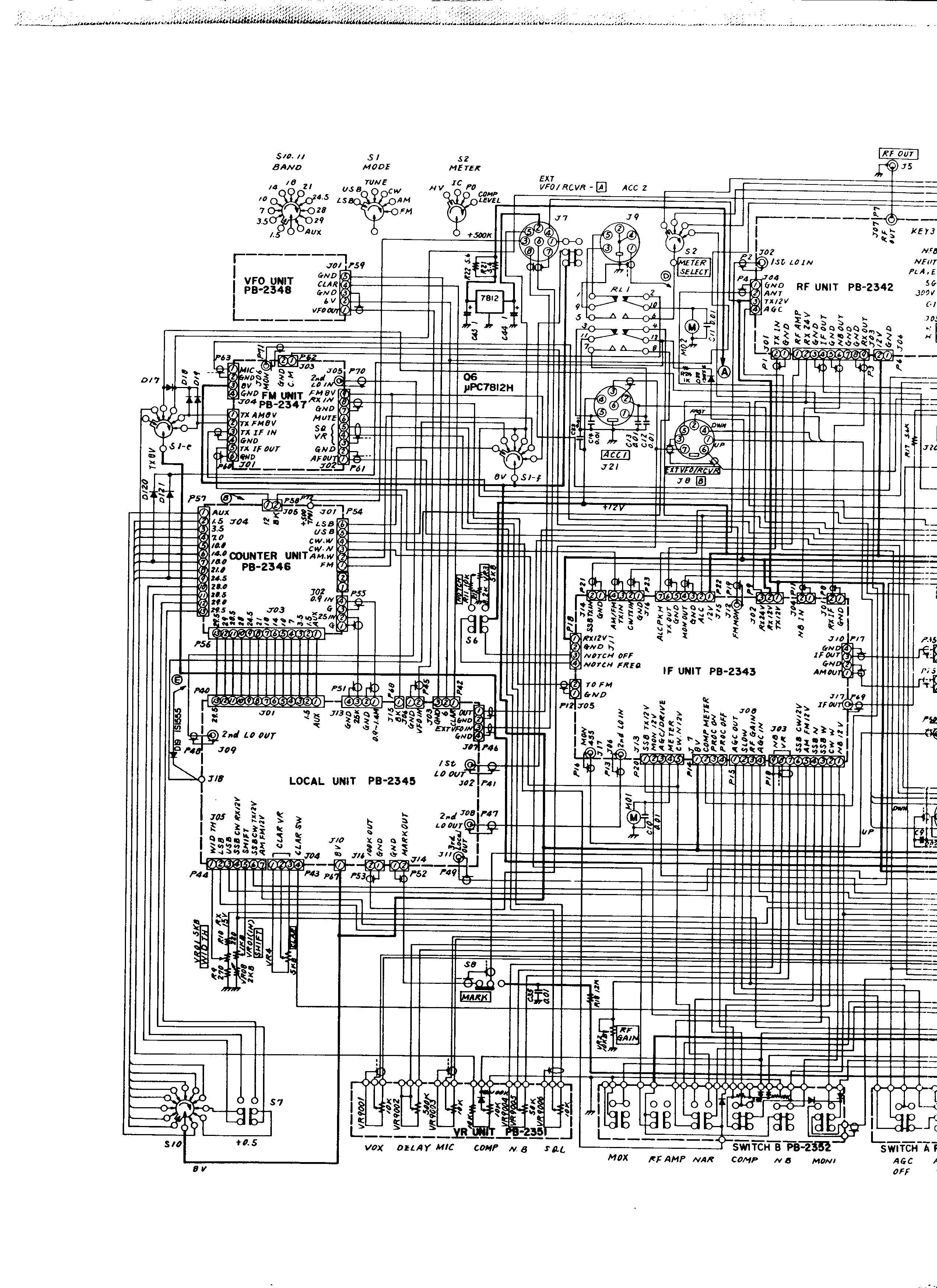

wirings pt1.gif 259KB Jun 24 2003 10:20:50 PM

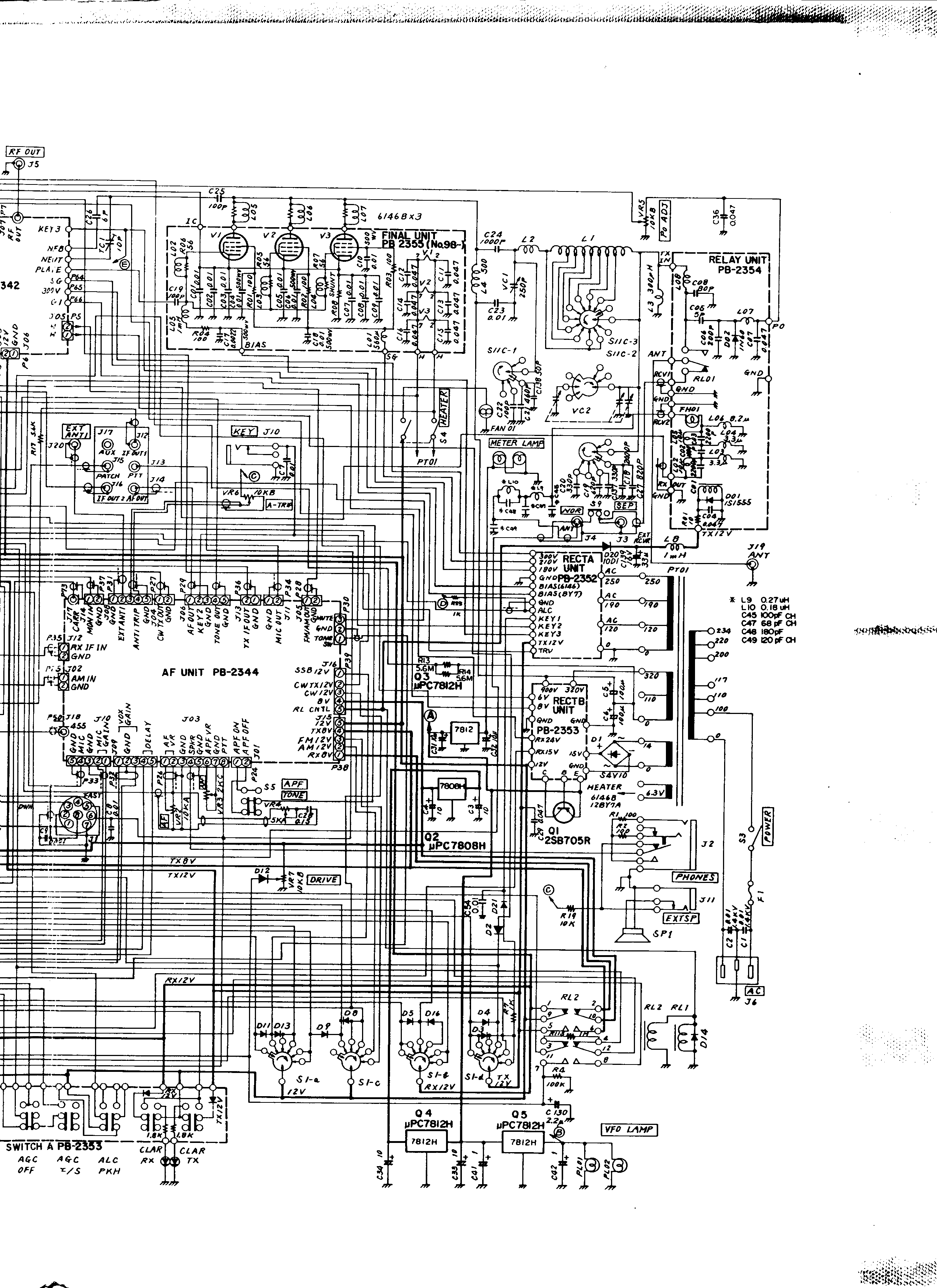

wirings pt2.gif 254KB Jun 24 2003 10:20:51 PM
